Frigidaire 316419342 Replacement Range Stove Oven Control Overlay 12 Month Warranty

Restore the appearance and usability of your compatible range control panel with the Wholesale Sensors Replacement for Frigidaire 316419342 Black Electronic Control Clock Overlay Panel, backed by a strong 12-Month Warranty and responsive USA-based product support from a USA business. Designed for select Frigidaire, Kenmore, and Crosley ranges, this replacement overlay provides a practical solution when the original control panel graphics have become worn, faded, cracked, peeling, stained, or difficult to read.

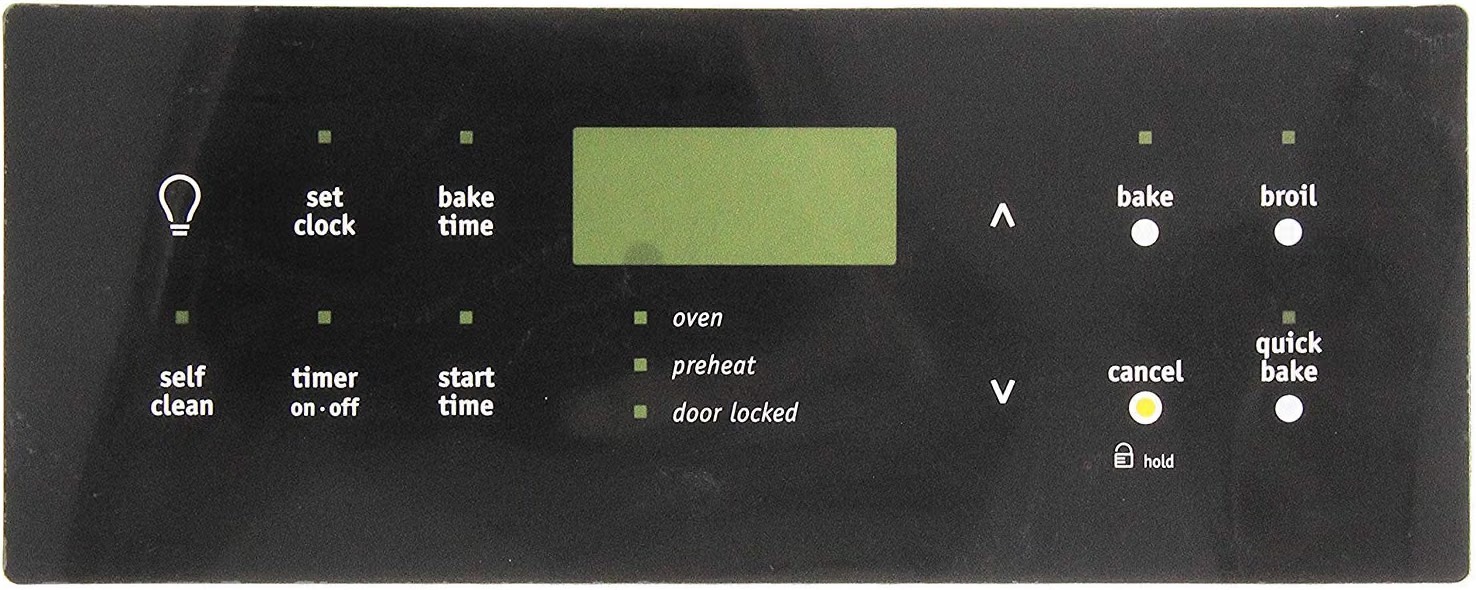

The Frigidaire 316419342 is a black clock overlay used on the electronic control area of compatible range, stove, and oven models. Appliance parts documentation identifies 316419342 specifically as a black clock overlay and categorizes it as a touchpad or overlay component for range, stove, and oven applications. The original 316419342 is now listed as no longer available through some OEM parts channels.

This Wholesale Sensors component is engineered as a perfect OEM-style replacement designed to meet or exceed OEM specifications for compatible 316419342 applications. It is designed to restore the visible control interface while maintaining the appropriate layout and appearance for the electronic clock and oven controls underneath.

Verified replacement references associated with this application include 316419342, 316419306, 316419336, 316419345, and 318214517. The updated Frigidaire OEM replacement is 316419353, which parts documentation specifically identifies as replacing 316419342 and these related older overlay numbers.

This supersession is important when researching older appliances. Your range may originally have been manufactured with 316419342, while current parts catalogs may display 316419353. Sears documentation for the Frigidaire FGGF3042KFE, for example, identifies 316419342 as the original range control overlay and states that it has been replaced by 316419353.

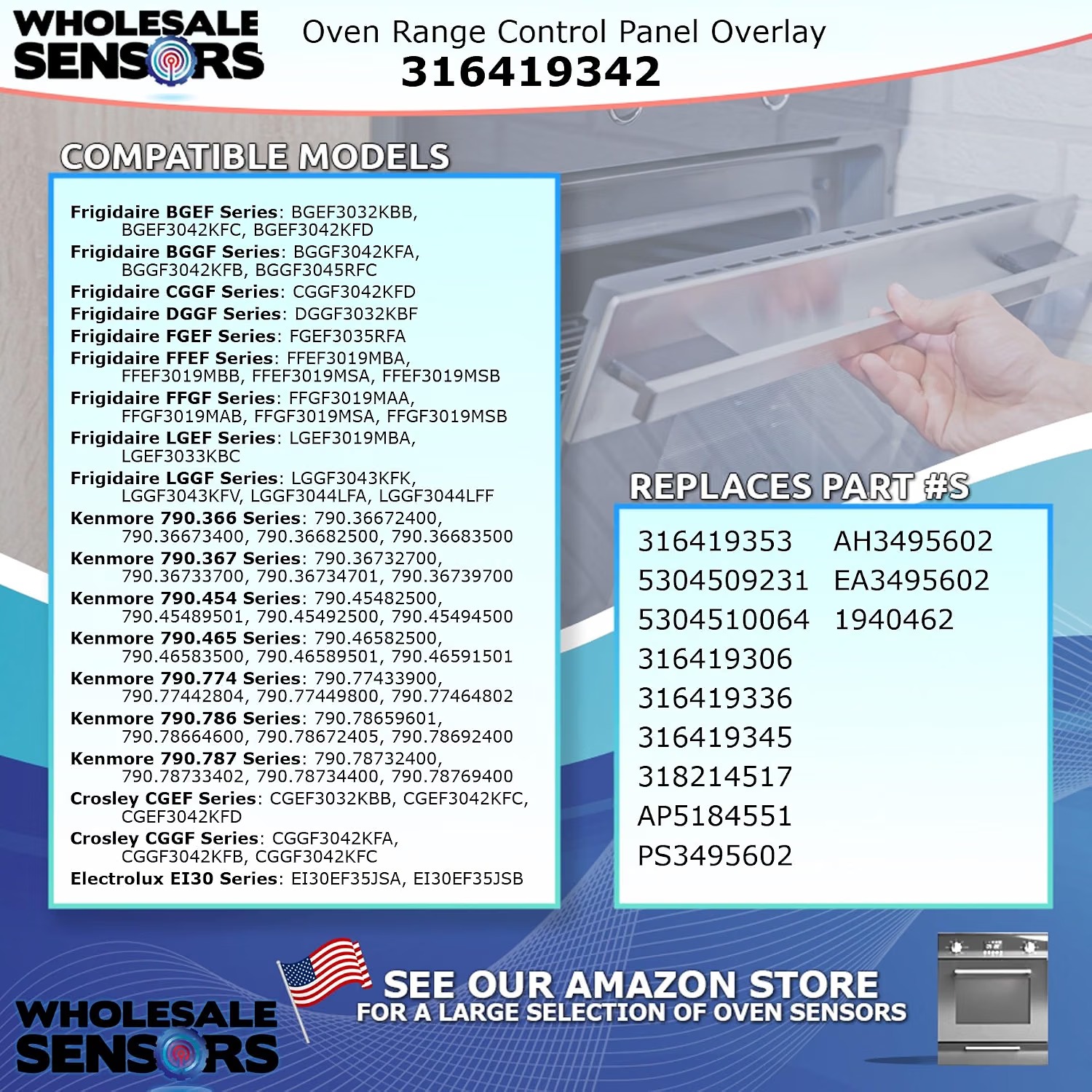

Compatibility extends across numerous Frigidaire range families. Verified model families using the original 316419342 include select BGEF3032, BGEF3042, BGGF3042, CGEF3032, CGEF3035, CGEF3042, CGGF3032, CGGF3042, DGGF3032, DGGF3042, FGEF3032, FGEF3035, FGEF3042, FGGF3032, FGGF3035, FGGF3042, LGEF3033, LGEF3043, LGGF3033, LGGF3043, and LGGF3044 ranges.

Specific verified applications include models such as BGGF3042KFK, CGEF3035RFA, FGGF3042KFE, LGEF3043KFN, LGGF3043KFB, LGGF3043KFC, LGGF3043KFD, LGGF3043KFE, LGGF3043KFF, LGGF3043KFG, LGGF3043KFH, LGGF3043KFJ, LGGF3043KFK, LGGF3043KFM, and LGGF3043KFN.

The updated 316419353 application is also documented for select Kenmore and Crosley ranges, expanding the relevant equipment families beyond Frigidaire-branded appliances. Because model revisions can use different colors, graphics, or control layouts, always verify the complete appliance model number and original overlay part number before purchasing.

This replacement is the black overlay panel, not the electronic oven control board itself. That distinction is important when diagnosing a range problem. The overlay is the visible surface positioned over the electronic control interface. It provides the printed labels and button locations that allow the user to identify and operate the appropriate oven functions.

Over years of normal kitchen use, an original control overlay can deteriorate from repeated button presses, cleaning, grease, moisture, heat exposure, and general wear. The printed graphics may fade, the surface can become scratched or stained, edges may begin to lift, or individual button labels may become difficult to identify.

Replacing a damaged overlay can restore a cleaner control-panel appearance and clearly identified control functions without replacing unrelated components. This makes the 316419342 replacement especially useful when the electronic control underneath is still functioning but the visible interface has become cosmetically worn or difficult to use.

A deteriorated overlay can also interfere with normal button operation in some situations. Parts documentation for the updated 316419353 notes that a worn control panel overlay can contribute to buttons becoming difficult or impossible to operate correctly. However, an unresponsive oven control does not automatically mean the overlay itself is defective.

If buttons remain unresponsive, activate the wrong function, or fail intermittently, the underlying electronic control, user interface, touchpad circuitry, wiring, or another electrical component may require diagnosis. The replacement overlay should not be represented as a guaranteed repair for an electronic failure.

Before installation, disconnect electrical power to the range by unplugging the appliance or switching off the appropriate circuit breaker according to the manufacturer’s service procedure. Ranges can contain hazardous electrical voltage even when heating functions are not operating.

Access the electronic control panel according to the service instructions for your exact model. Before removing the original overlay, inspect its orientation and alignment carefully. Taking a photo of the existing control panel can provide a useful reference during installation.

Remove the old overlay carefully so the underlying electronic control and surrounding panel are not damaged. Any remaining adhesive or contamination should be addressed using a method appropriate for the control surface. The mounting area should be clean, dry, and properly prepared before the new overlay is positioned.

Alignment is important. Before permanently securing the replacement, confirm that the display opening, printed button labels, and control locations line up correctly with the electronic control underneath. Incorrect positioning can make buttons difficult to identify or operate.

Once properly aligned, install the overlay according to the applicable service procedure. Reassemble the control panel, confirm that wiring and connectors were not disturbed during service, reinstall all covers, and restore electrical power.

Test the clock and oven control functions after installation. Each labeled control should correspond with the expected function. If a button remains unresponsive after the new overlay is installed, additional diagnosis of the electronic oven control or user-interface system may be required.

Range and oven appliances do not use automotive OBD-II diagnostic trouble codes. If your Frigidaire, Kenmore, or Crosley range displays an appliance-specific error code, the code should be diagnosed according to the service information for the exact model. Replacing the 316419342 overlay should not be expected to correct electronic fault codes unless the actual cause is related to the control interface.

The Wholesale Sensors replacement is designed with application-specific control graphics, durable surface construction, and precise alignment for compatible range control panels. Each overlay is carefully inspected for printing quality, dimensions, control-label placement, surface finish, and overall fit before shipment.

Wholesale Sensors specializes in dependable aftermarket replacement components for home appliances, commercial foodservice equipment, HVAC systems, refrigeration equipment, pool and spa systems, automotive applications, RV equipment, and industrial systems.

Every Wholesale Sensors Replacement for Frigidaire 316419342 Black Electronic Control Clock Overlay Panel is backed by a strong 12-Month Warranty and responsive USA-based product support. Before ordering, confirm your complete range model number, black control-panel configuration, and original 316419342 part number or verified superseding 316419353 application.

With confirmed compatibility, this replacement provides a practical way to restore clear control markings, improve the appearance of a worn range control panel, and extend the useful life of compatible Frigidaire, Kenmore, and Crosley cooking appliances without unnecessarily replacing a functioning electronic control board.
