Replacement Pentair 42001-0063S High Limit Switch for Pool and Spa Heaters

Restore an important part of your pool heater’s safety circuit with the Wholesale Sensors Replacement for Pentair 42001-0063S High Limit Switch. Designed for compatible Pentair MasterTemp and Sta-Rite Max-E-Therm pool and spa heaters, this replacement switch helps protect the heater from excessive operating temperatures by monitoring temperature conditions and interrupting the safety circuit when an unsafe high-temperature condition is detected.

Pentair identifies 42001-0063S as the High Limit Switch in its MasterTemp heater electrical system. It works alongside other important heater components, including the thermistor, automatic gas shutoff switch, water pressure switch, air flow switch, control board, and stack flue sensor.

When the original high limit switch becomes damaged, electrically open, or otherwise fails, the heater may shut down or display an HLS fault indication. Replacing a confirmed defective high limit switch can help restore proper operation after the underlying cause of the fault has been diagnosed.

Direct Replacement for Pentair 42001-0063S

The Wholesale Sensors high limit switch is engineered as a perfect OEM replacement that meets or exceeds OEM specifications for fit, function, and electrical performance in compatible applications.

Common replacement and cross-reference numbers include:

42001-0063S
420010063S
PEN420010063S
47-102-1309

The 47-102-1309 reference is associated with the same 42001-0063S application by pool equipment parts suppliers, while other suppliers use condensed or distributor-specific versions of the Pentair number.

Always verify the original part number, heater model, fuel configuration, and electrical system before purchasing.

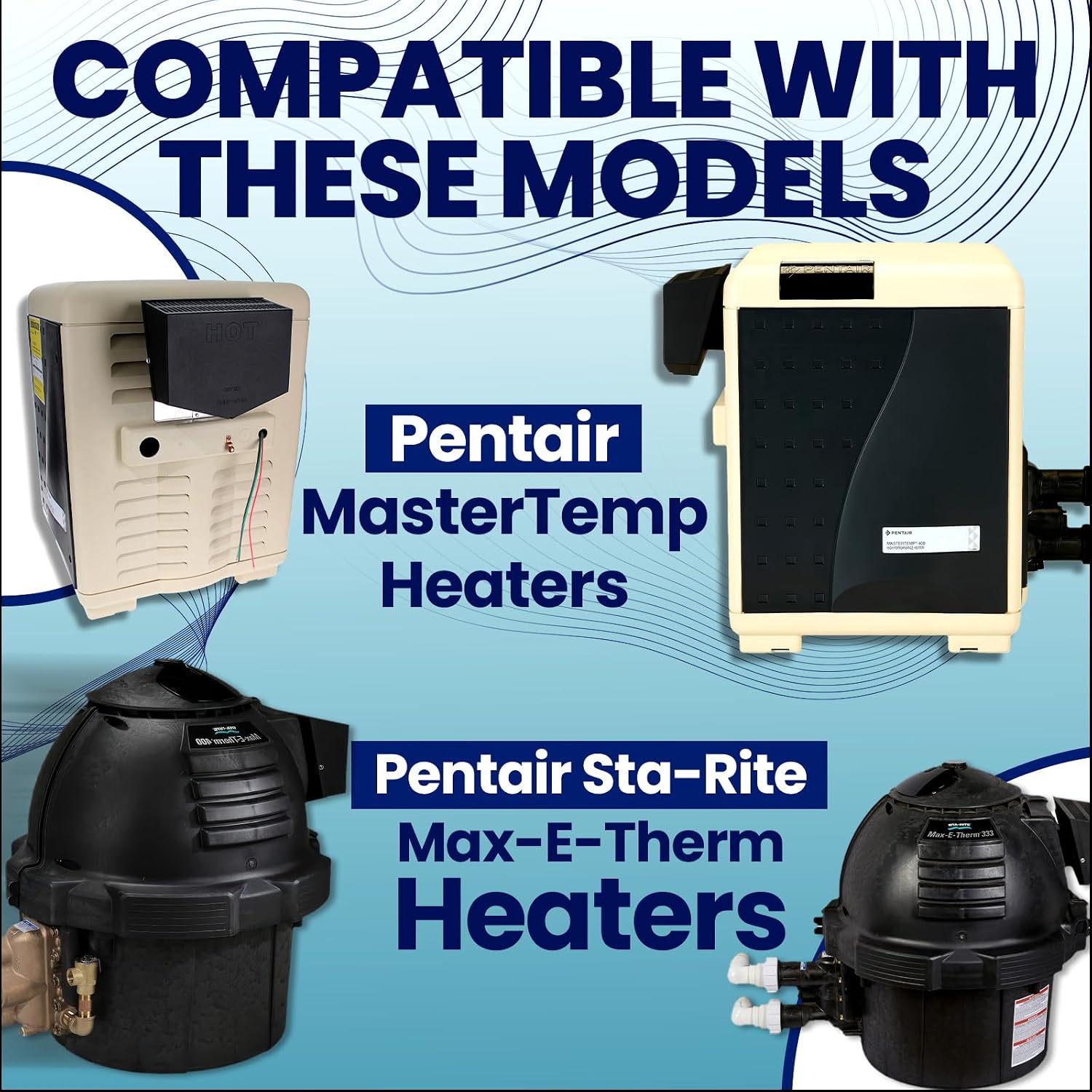

Compatible with Pentair MasterTemp Pool and Spa Heaters

Pentair’s replacement-parts documentation confirms that the 42001-0063S High Limit Switch is used in compatible MasterTemp High Performance Heater electrical systems.

Pentair’s current heater replacement-parts catalog identifies compatibility with heater sizes including:

MasterTemp 175
MasterTemp 200
MasterTemp 250
MasterTemp 300
MasterTemp 333
MasterTemp 400

These heaters are widely used for residential swimming pool and spa heating applications. Because equipment configurations can vary by production date and fuel type, customers should confirm the complete heater model and existing switch before installation.

Pentair specifically states that this replacement-parts configuration is not compatible with the 125,000 BTU heater.

Compatible with Sta-Rite Max-E-Therm Heaters

The 42001-0063S switch is also designed for compatible Sta-Rite Max-E-Therm High Performance Pool and Spa Heaters.

Pentair’s current documentation identifies the replacement parts for compatible 175, 200, 250, 300, 333, and 400 MasterTemp and Max-E-Therm heater configurations.

Additional parts references specifically identify the switch for Max-E-Therm SR200, SR333, and SR400 heater electrical systems.

This broad compatibility makes the Wholesale Sensors replacement a practical service part for pool owners, maintenance professionals, and technicians working on compatible Pentair and Sta-Rite heaters.

Additional Pentair ETi Heater Applications

Parts references also identify 42001-0063S for select Pentair ETi 250 and ETi 400 High Efficiency Heaters.

Because Pentair has produced multiple heater generations and configurations, always confirm the exact parts diagram for your ETi heater before purchasing rather than assuming compatibility based only on the heater family.

Important Heater Overheat Protection

The high limit switch is not simply an on/off control for normal heater operation. It serves an important safety function.

Parts documentation describes the 42001-0063S as a 135°F high limit switch that monitors heater outlet temperature. When excessive temperature is detected, the switch opens the safety circuit and shuts down burner operation, helping protect the heat exchanger and heater from an unsafe overheating condition.

Because this component is part of the heater’s safety circuit, a high limit fault should not automatically be treated as proof that the switch itself is defective.

An HLS condition can indicate that the switch has opened, but the underlying cause of excessive temperature should also be investigated.

Helps Address HLS Error Conditions

A problem involving the high limit circuit can result in an HLS error or heater shutdown on compatible systems. Current pool heater parts references specifically associate the HLS indication with this high limit safety circuit.

If testing confirms that the original 42001-0063S switch has failed, replacing it can help restore continuity to the heater safety circuit and allow normal operation once all other operating conditions are correct.

However, replacing the switch should not be used to bypass or ignore an actual overheating problem.

Restricted water flow, improper circulation, a dirty filter, closed valves, thermal regulator problems, bypass problems, wiring faults, or other heater conditions can contribute to abnormal temperatures. Proper troubleshooting should identify and correct the cause before returning the heater to service.

Durable Construction for Pool Heater Applications

Pool and spa heaters operate in demanding conditions that combine elevated temperatures, water circulation, outdoor exposure, and repeated heating cycles.

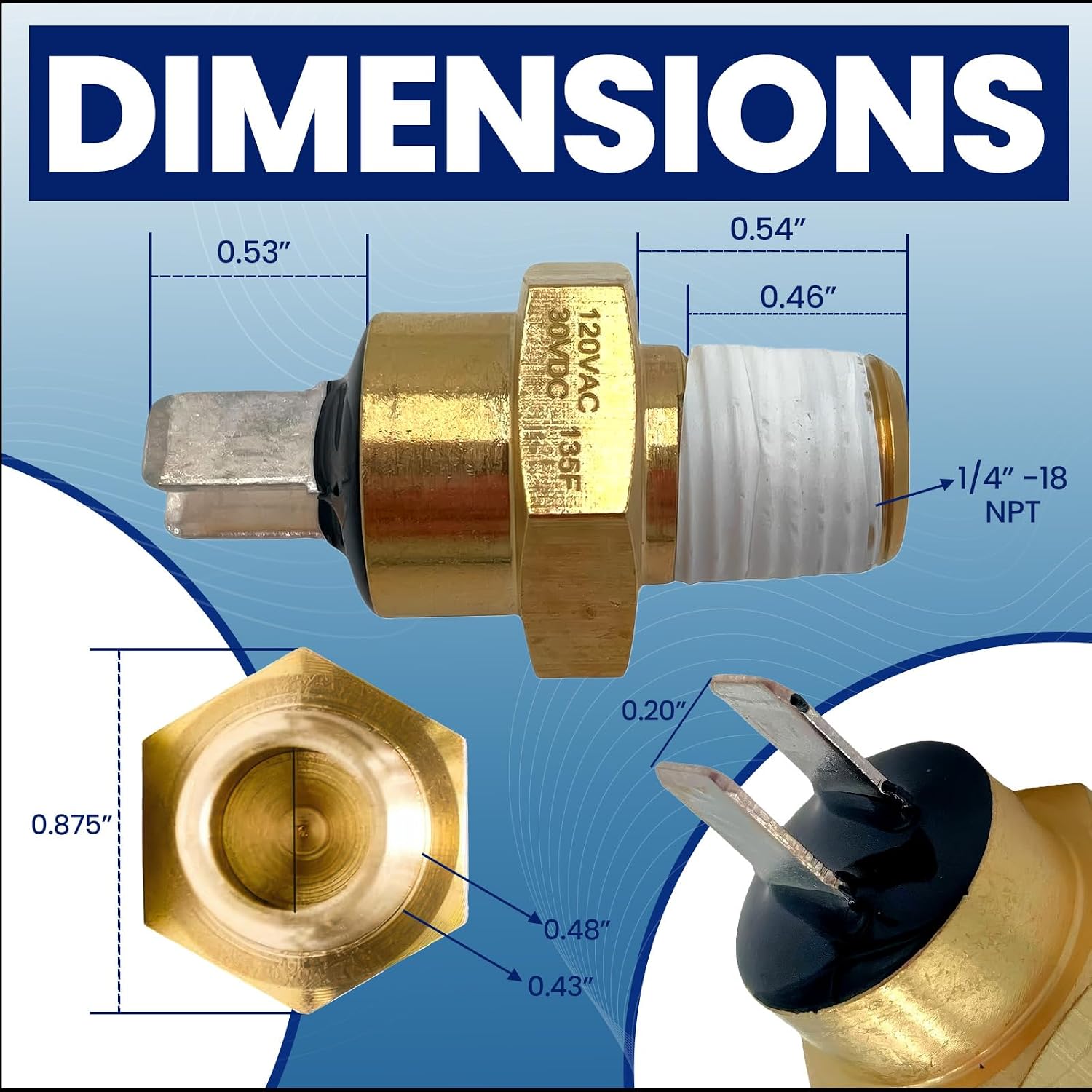

The 42001-0063S configuration is documented as a brass high limit switch with a 1/4-inch NPT connection by current replacement-parts references.

Wholesale Sensors replacement components are designed for dependable operation in compatible heater applications. Each switch is rigorously tested for electrical performance, switching response, consistency, fitment, and reliability before shipment.

This attention to component performance helps provide confidence when servicing a critical heater safety system.

Designed for Straightforward Replacement

The direct replacement configuration helps simplify servicing a confirmed defective high limit switch. Pentair’s MasterTemp parts diagram identifies 42001-0063S as item 6 in the heater electrical system, providing a clear reference for technicians locating the component.

Before beginning service, disconnect electrical power and fuel to the heater and allow the equipment to cool completely. Confirm the original part number and inspect the surrounding system before removing the existing switch.

Never bypass a high limit switch to keep a heater operating. It is an important safety device designed to respond to excessive temperature conditions.

Because pool heaters combine electricity, fuel, high temperatures, and pressurized water, professional installation and diagnosis are recommended if you are unfamiliar with pool heater service procedures.

Ideal for Pool Heater Repair and Maintenance

The Wholesale Sensors Replacement Pentair 42001-0063S High Limit Switch provides a practical repair option for compatible Pentair MasterTemp, Sta-Rite Max-E-Therm, and applicable ETi heater systems.

It is suitable for professional pool service technicians, maintenance departments, repair companies, and experienced pool owners replacing a confirmed defective high limit switch.

The direct replacement design helps eliminate unnecessary modification when servicing compatible equipment, while dependable switching performance helps restore the heater’s intended safety circuit operation.

Wholesale Sensors Quality and USA-Based Support

Wholesale Sensors specializes in temperature sensors, thermistors, pressure sensors, switches, and replacement sensing components for pool and spa equipment, HVAC systems, appliances, automotive applications, and commercial equipment.

Our focus on sensing and control technology allows us to provide carefully tested aftermarket replacement components designed for accurate, consistent, and dependable performance.

Every Wholesale Sensors Pentair 42001-0063S compatible High Limit Switch is carefully inspected and tested before shipment and backed by a 12-month warranty.

Customers also receive responsive USA-based product support for assistance with product questions and compatibility. Whether you are repairing a residential swimming pool heater, servicing spa equipment, or maintaining multiple pool systems, Wholesale Sensors provides dependable replacement components and knowledgeable support.
