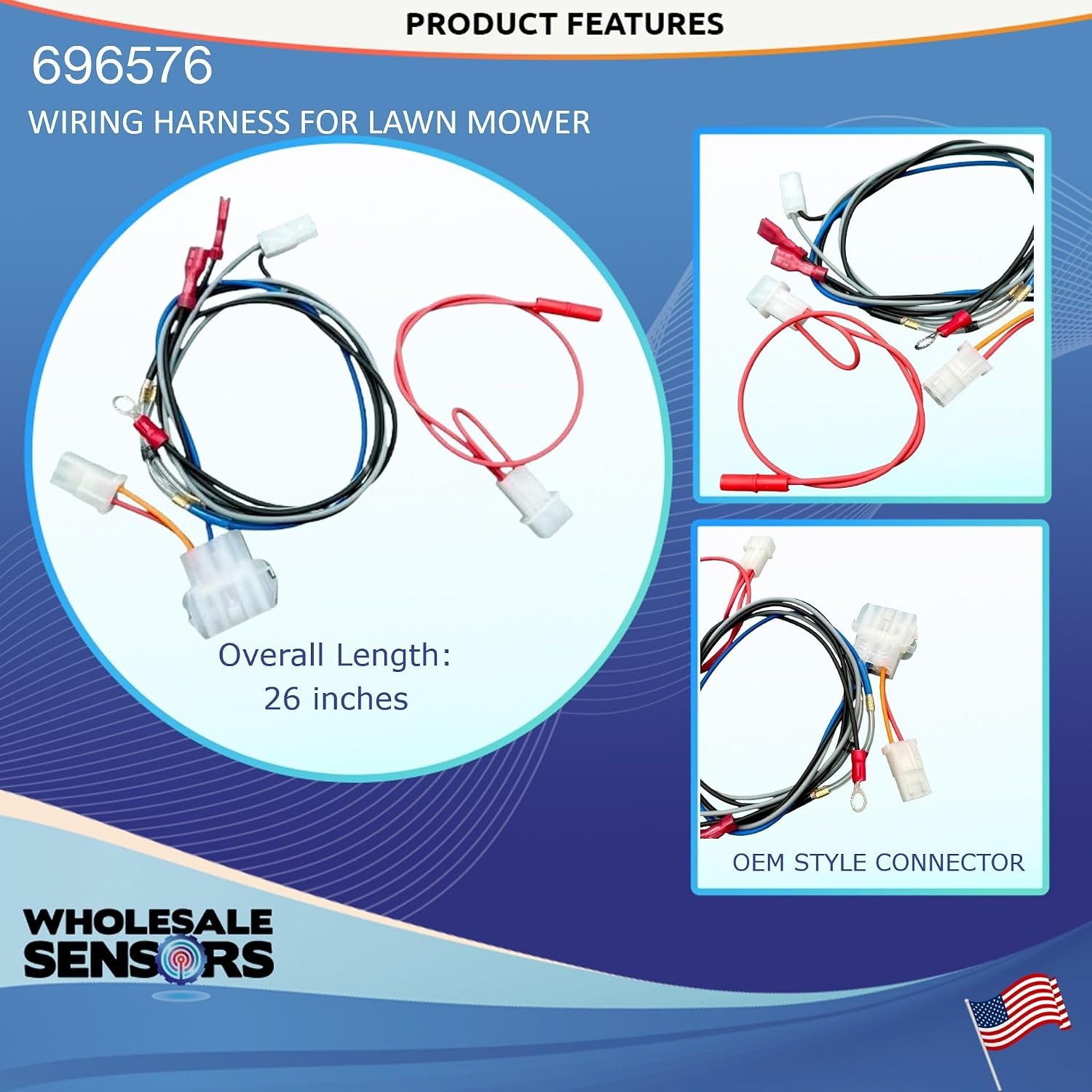

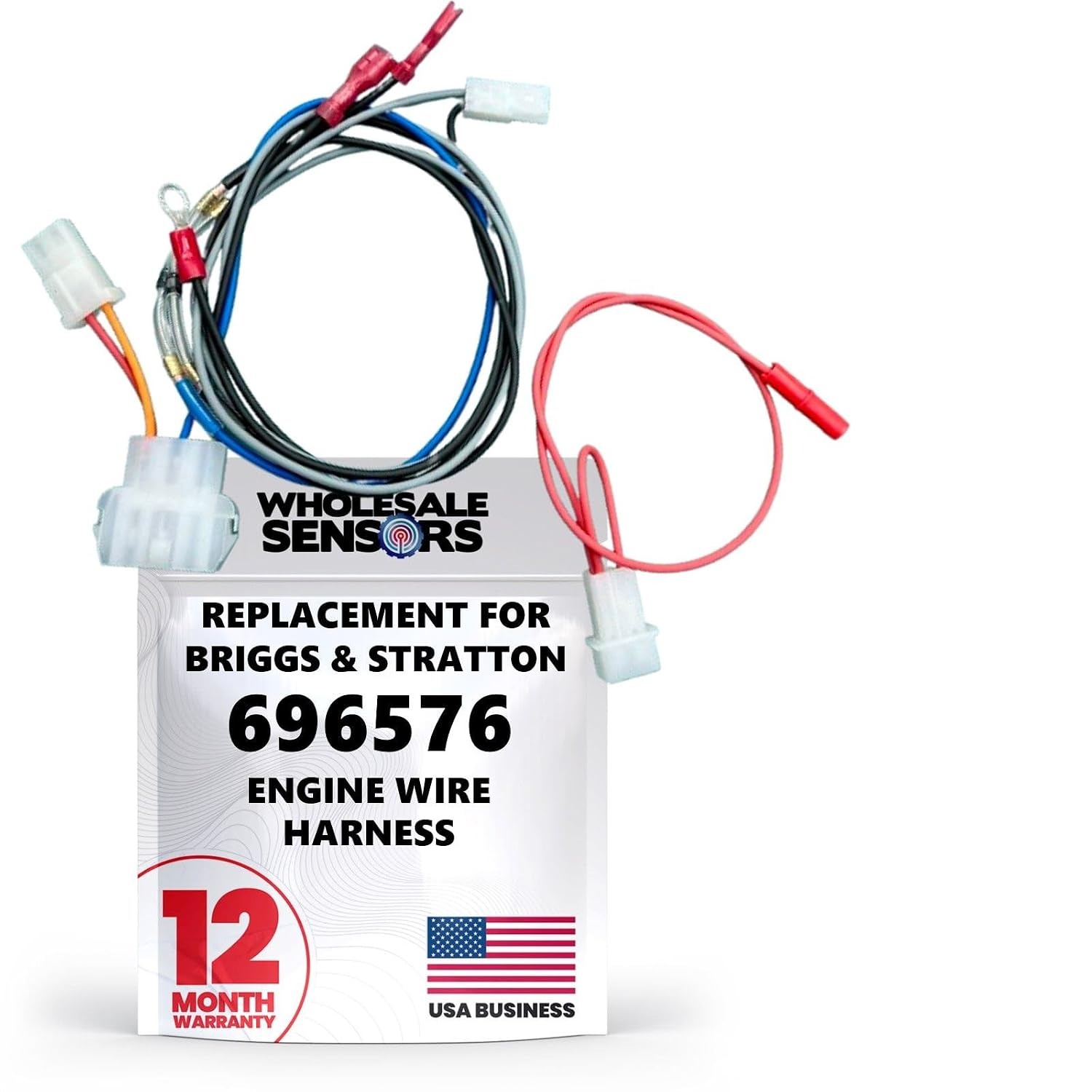

Briggs & Stratton 696576 Lawn Mower Engine Wiring Harness, Replacement with 12 Month Warranty & USA Business

Restore dependable electrical connections in your lawn mower engine with the Wholesale Sensors Replacement for Briggs & Stratton 696576 Wiring Harness. Designed as a direct-fit, OEM-style replacement, this engine wiring harness is engineered to meet or exceed original functional specifications while providing reliable electrical connections between critical components in compatible Briggs & Stratton engines.

The 696576 wiring harness is specifically documented by Briggs & Stratton as a 6-pin wire harness for compatible 400000 and 440000 Series OHV engines equipped with Engine Minder. The factory wiring diagram shows the harness connecting the Magnetron ignition armature, fuel solenoid, ground, and alternator system. This makes the wiring harness an important part of maintaining proper electrical communication throughout the engine. Briggs & Stratton

Replacement for Briggs & Stratton 696576

The primary replacement part number is Briggs & Stratton 696576. The same part number is also cataloged for Murray 696576 and Snapper 696576 applications where the equipment uses the corresponding Briggs & Stratton engine and harness configuration. Lawnmower Pros

Briggs & Stratton also references 698330 alongside 696576 for 400000 and 440000 Series OHV engines, but these harnesses have different wiring configurations. The factory diagram shows 698330 incorporating an oil pressure switch connection, while 696576 is specifically identified for engines equipped with Engine Minder. For this reason, 698330 should not automatically be treated as interchangeable with 696576. Briggs & Stratton

Always verify the original 696576 part number, engine model, type, and code before ordering.

Compatible Briggs & Stratton Engines

The 696576 wiring harness is officially documented for compatible Briggs & Stratton 400000 and 440000 Series OHV engines with Engine Minder. Briggs & Stratton

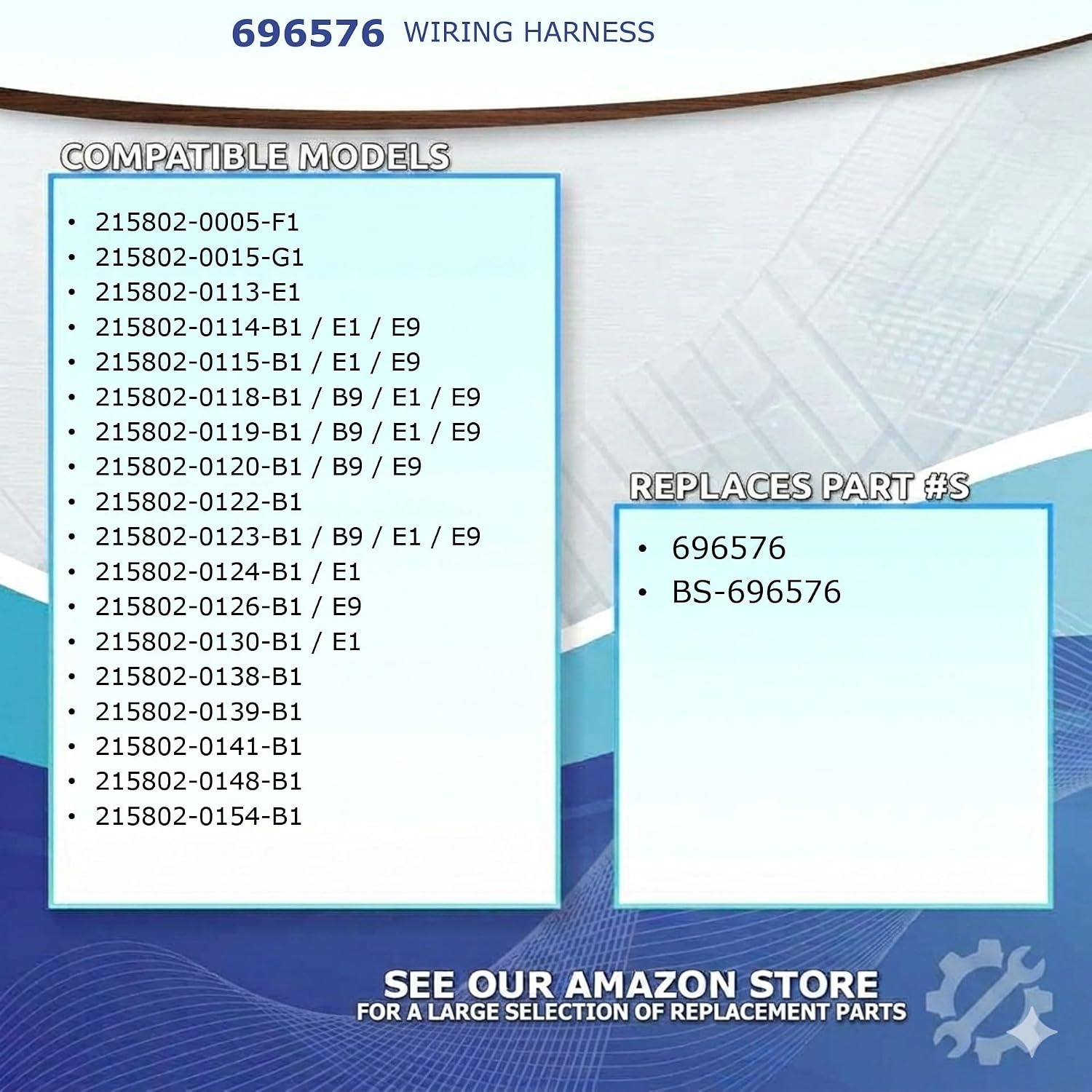

Parts catalogs also document 696576 on numerous individual Briggs & Stratton engine configurations, including select 441677, 446777, and 446977 engines. For example, documented applications include 441677-0112-B1, 441677-0112-E1, 441677-0113-B1, 441677-0113-E1, 441677-0131-B1, 441677-0131-E1, 441677-0748-E1, 446777-0241-E1, and 446977-0471-E1. eReplacement Parts

Parts databases also associate 696576 with select Briggs & Stratton, Cub Cadet, and Simplicity equipment. Documented Cub Cadet lawn mower models include 13VR92AK009, 13WR92AK009, 13WR92AK010, 14VR13CK009, and 14VR13CK010. Simplicity 2721H is another documented lawn mower application. eReplacement Parts

Compatibility should be confirmed using the engine model, type, and code, not only the lawn mower brand or deck model. Outdoor power equipment manufacturers can use different engines and electrical configurations within the same mower family.

Restores Critical Engine Electrical Connections

A wiring harness provides organized electrical connections between multiple engine components. Briggs & Stratton’s factory diagram for 696576 shows connections involving the Magnetron ignition armature, fuel solenoid, ground, and alternator system. Briggs & Stratton

If the original harness becomes damaged, electrical current or control signals may no longer reach these components correctly. Common harness problems can include cracked insulation, broken wires, loose terminals, corroded connectors, heat damage, pinched wiring, or poor ground connections.

Depending on where the damage occurs, symptoms may include intermittent starting, no-start conditions, ignition problems, fuel-solenoid operation problems, battery charging issues, intermittent engine shutdown, or inconsistent electrical operation.

These symptoms do not automatically mean the wiring harness has failed. Before replacing the harness, inspect the battery, starter circuit, ignition system, fuel solenoid, alternator, grounds, fuses, switches, connectors, and other related electrical components.

Durable Construction and Rigorous Testing

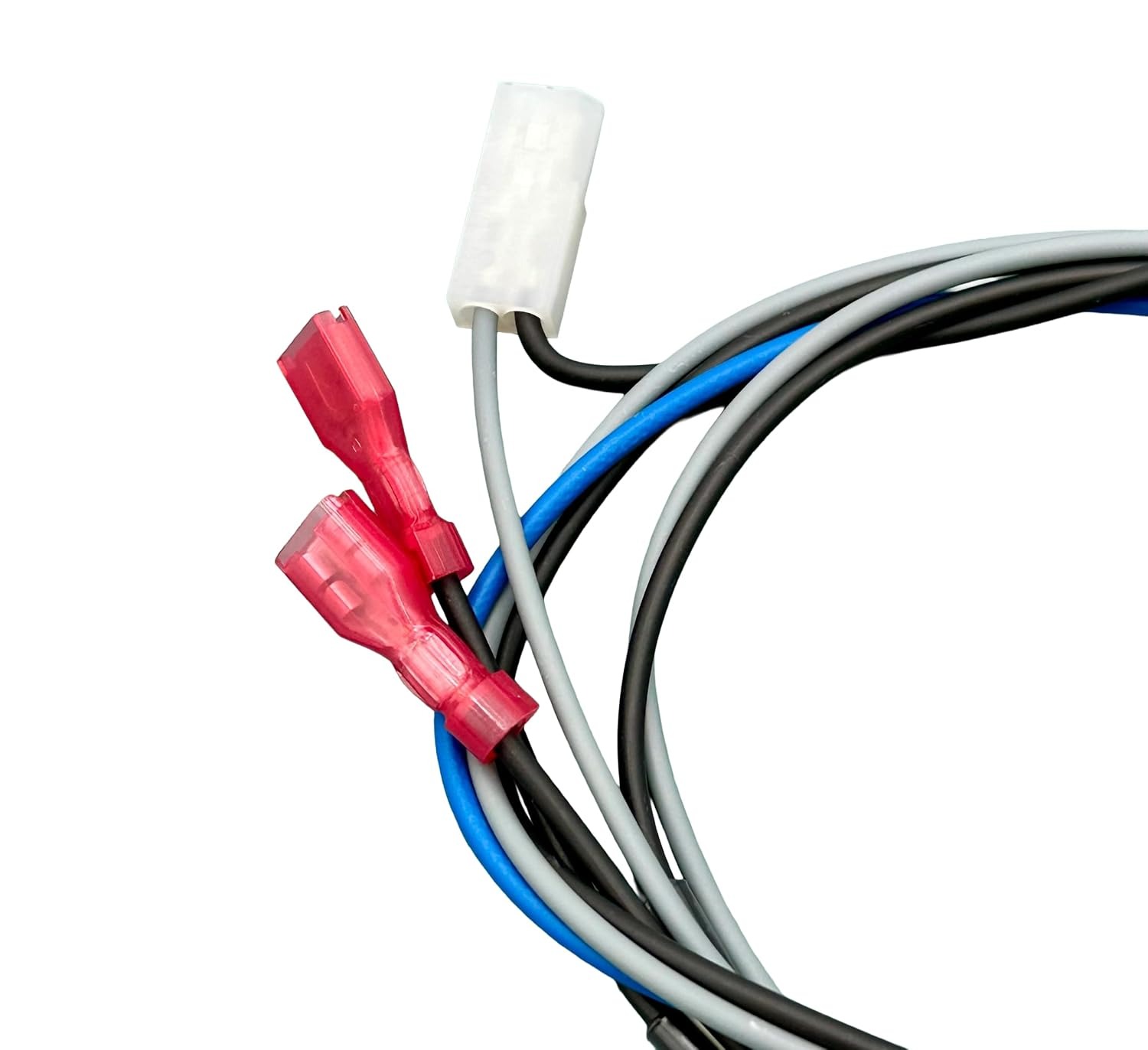

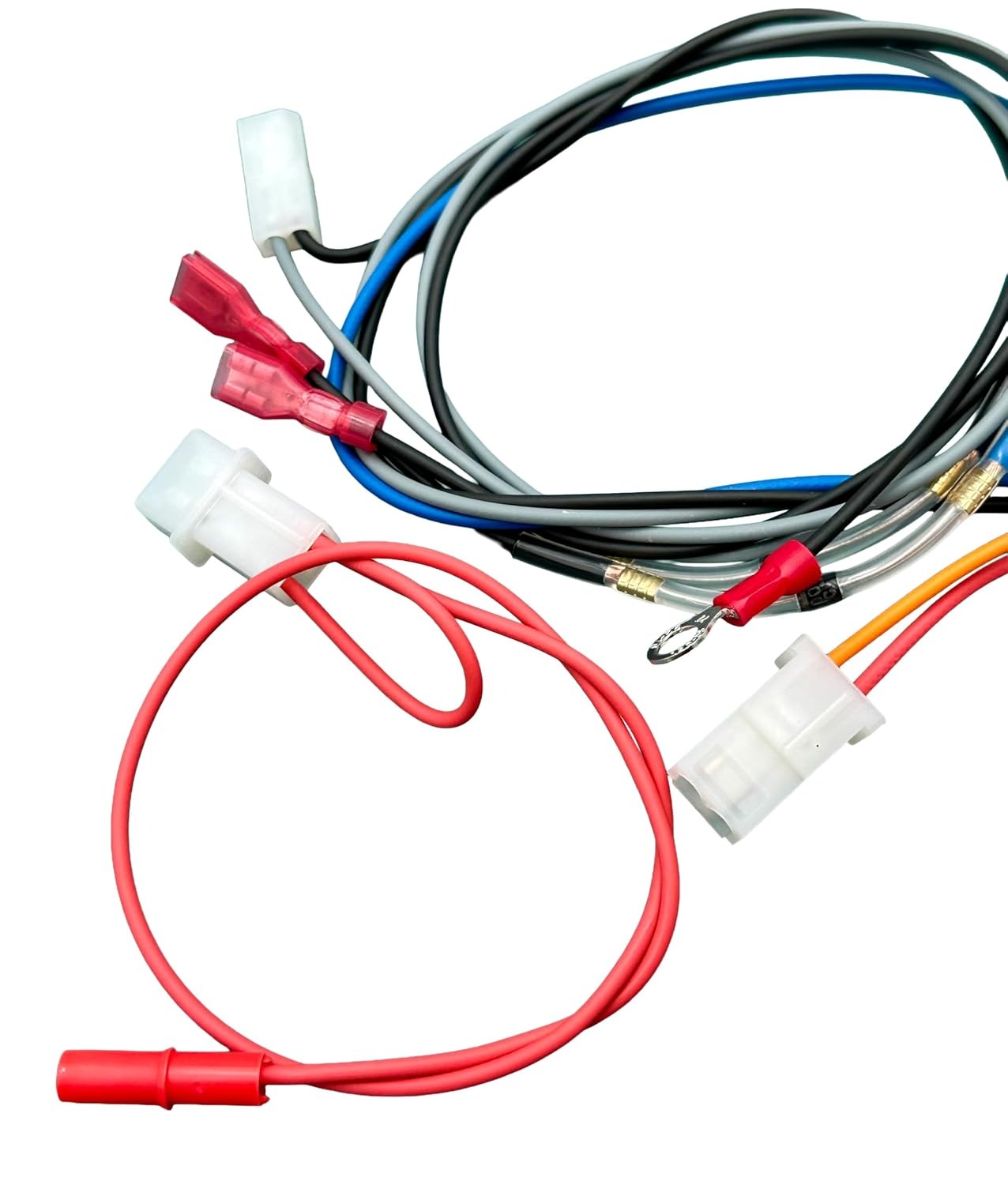

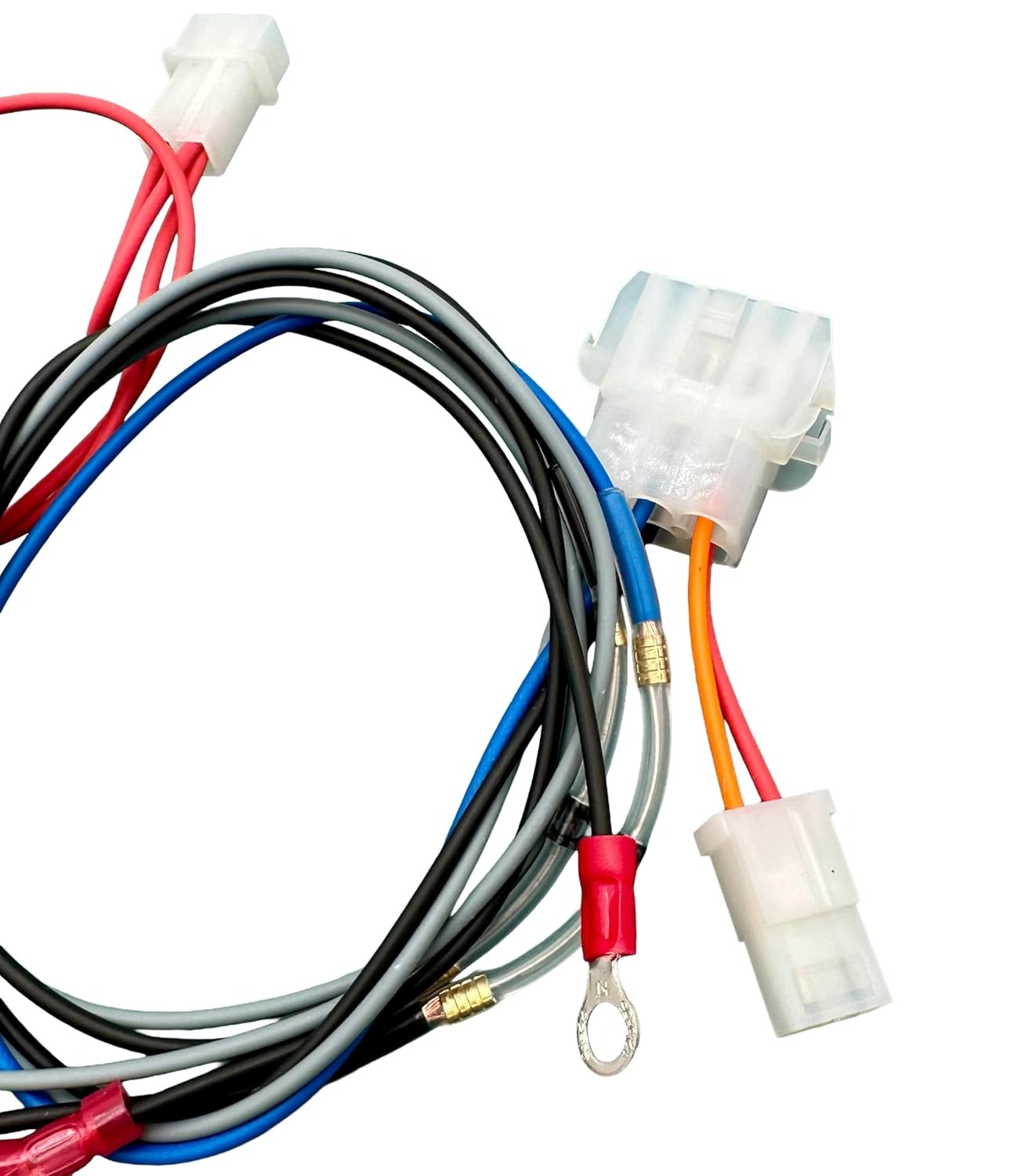

The Wholesale Sensors replacement for Briggs & Stratton 696576 is built for dependable service in outdoor power equipment. The harness uses insulated wiring and application-specific electrical connections designed to replace the original harness configuration.

Each replacement harness is rigorously tested for electrical continuity, connection integrity, fit, electrical performance, and reliability. This helps ensure consistent electrical connections after installation and reduces the risk of problems caused by poor wiring continuity.

The harness is suitable for lawn tractors, riding mowers, and other compatible outdoor power equipment using the specified Briggs & Stratton engine configuration.

Direct-Fit Installation

The replacement is designed to follow the original 696576 wiring configuration, simplifying installation when replacing an existing harness.

Before beginning service, shut off the engine, remove the ignition key, disconnect the spark plug leads, and disconnect the battery according to the equipment manufacturer’s service instructions. Photograph or label the original connections before removing the old harness.

Route the new harness using the original path and secure each connector to its corresponding engine component. Keep wiring away from the exhaust, flywheel, moving linkages, sharp edges, and other areas that could damage the insulation.

Briggs & Stratton notes that an adapter wire may be required when connecting certain alternator systems, depending on the application. Their installation documentation identifies 790544 as an alternator adapter wire used where required. Briggs & Stratton

Troubleshooting Electrical Problems

Lawn mower engines do not use automotive OBD-II diagnostic trouble codes, so there are no universal P-codes associated with the 696576 harness.

When diagnosing an electrical problem, visually inspect the harness for burned areas, broken insulation, loose pins, corrosion, damaged terminals, and disconnected wires. Check continuity and grounds according to the appropriate Briggs & Stratton service information.

Replacing a confirmed damaged 696576 harness can help restore reliable connections for the ignition, fuel-solenoid, grounding, and charging circuits.

12-Month Warranty and US-Based Support

Wholesale Sensors provides dependable replacement sensors, wiring components, and electrical parts for outdoor power equipment, automotive, commercial, and industrial applications.

The Wholesale Sensors Replacement Briggs & Stratton 696576 Wiring Harness provides a direct-fit solution for compatible lawn mower engines requiring this specific 6-pin harness configuration. It combines application-specific connections, rigorous electrical testing, straightforward installation, and dependable construction.

Every harness is backed by a strong 12-month warranty and responsive US-based product support, providing added confidence for homeowners, landscaping professionals, lawn care companies, repair shops, equipment dealers, and small-engine technicians.
