Contact Support →DESCRIPTION Replacement for Pitco B6744401 Millivolt Wire Harness, High-Limit Thermostat Wiring for Commercial Gas Fryers, Made in USA, 12-Month Warranty Restore dependabl…
Replacement for Pitco B6744401 Millivolt Wire Harness, High-Limit Thermostat Wiring for Commercial Gas Fryers, Made in USA, 12-Month Warranty

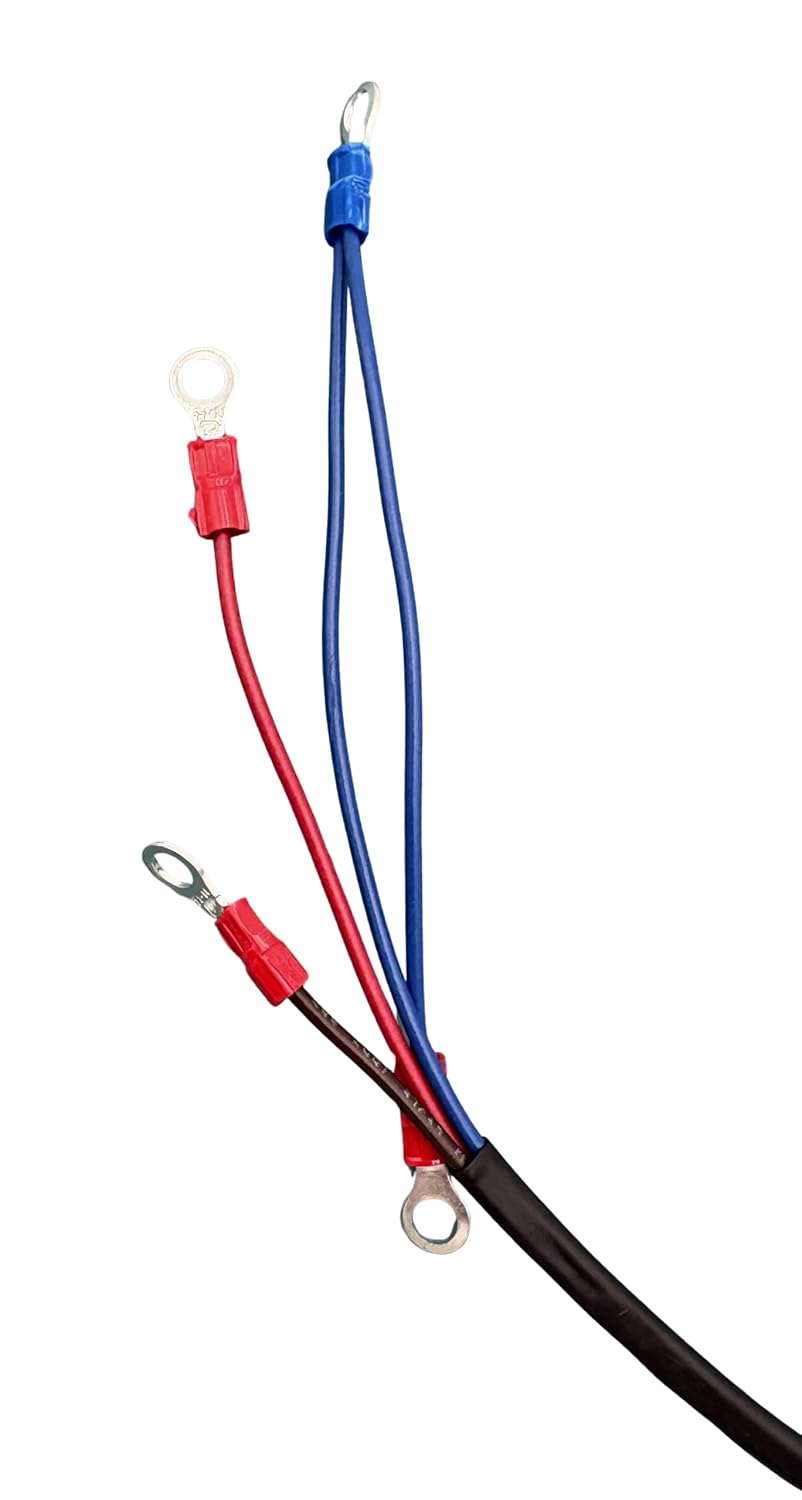

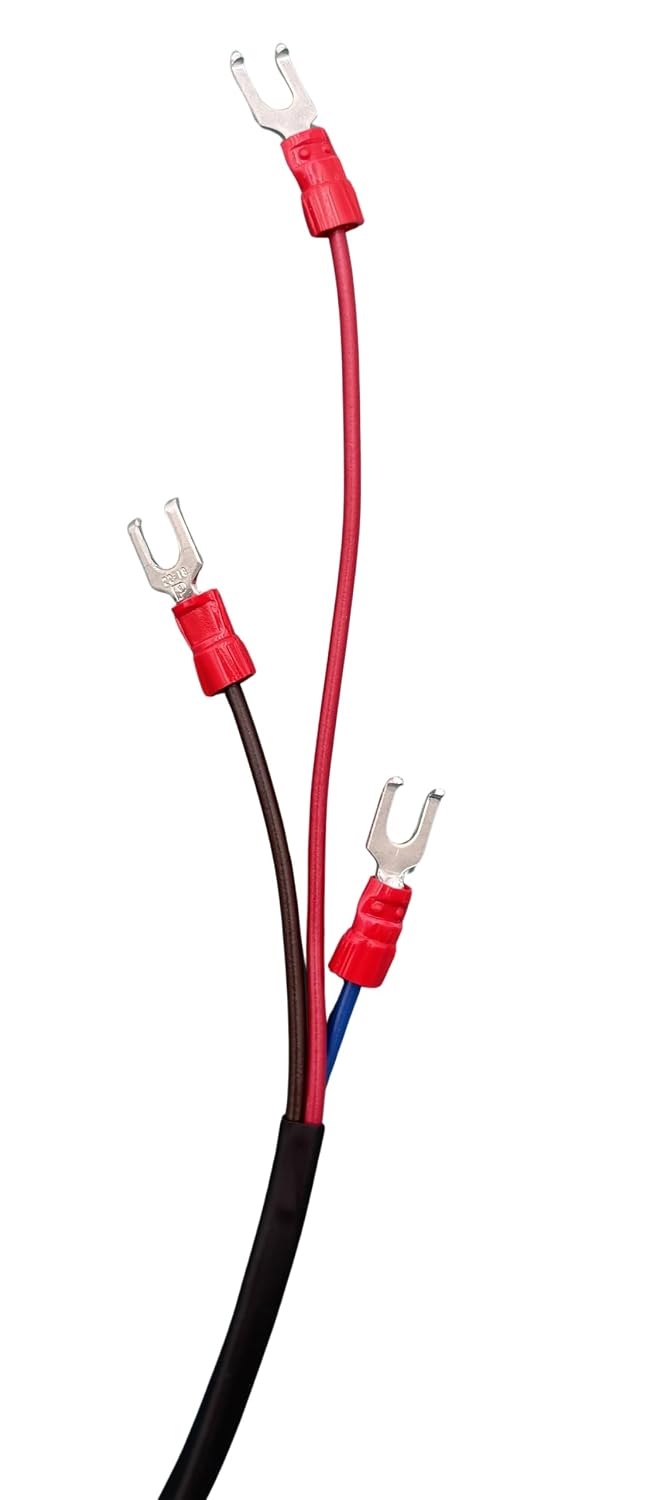

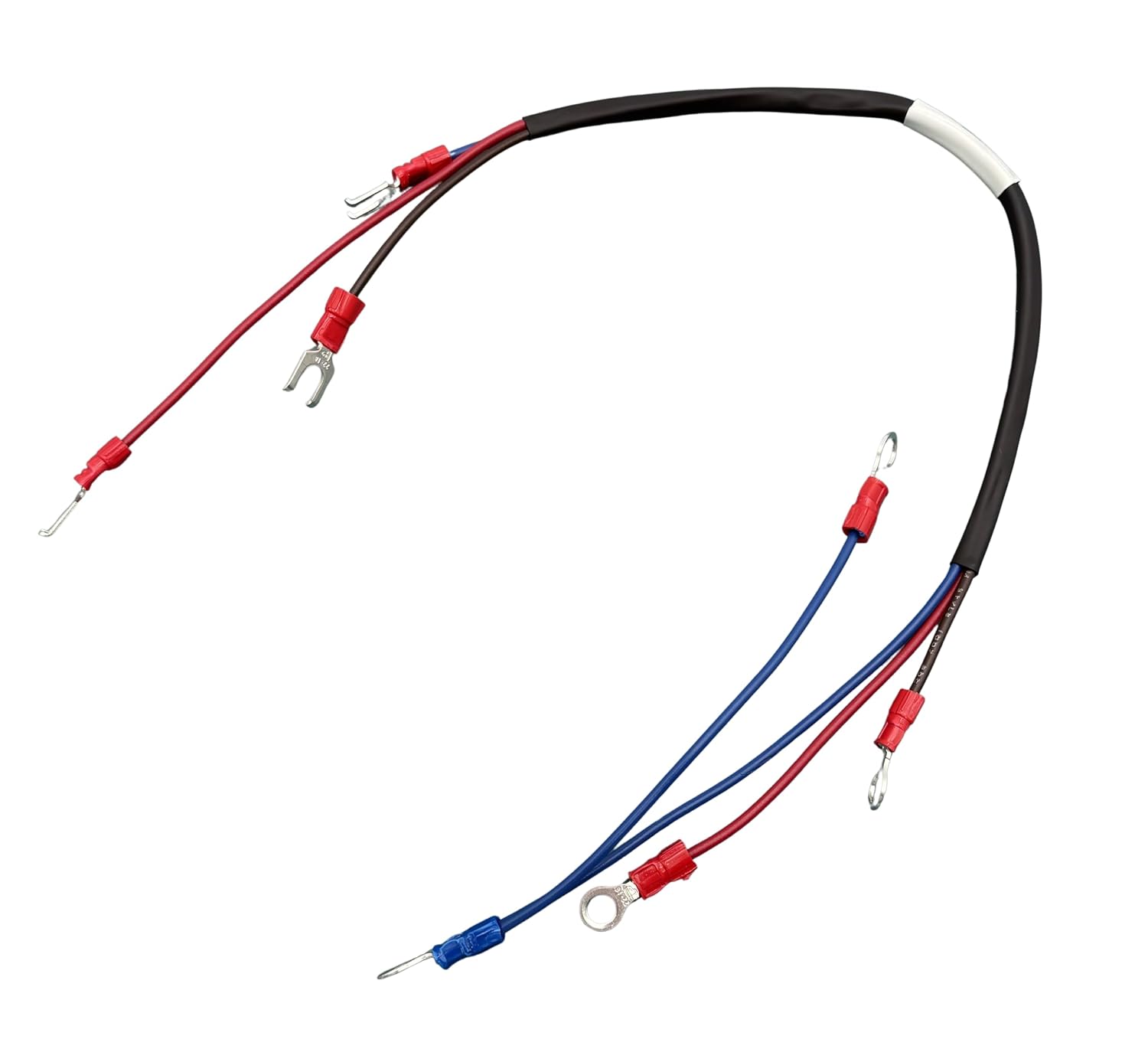

Restore dependable electrical connections in your commercial fryer with the Wholesale Sensors Replacement for Pitco B6744401 Wire Harness. This Made in USA aftermarket wiring harness is designed for compatible Pitco SG-series gas fryers using a millivolt high-limit and thermostat circuit.
The harness connects designated temperature control and high-limit safety components, supporting the electrical continuity required for proper fryer operation.
OEM Replacement Part Numbers
- Pitco B6744401
- Pitco B6744401 Millivolt Wire Harness
- Pitco B6744401 High-Limit and Thermostat Wiring
Catalog references: PTB6744401 and PITB6744401.
This is a replacement wiring harness, not a complete thermostat, high-limit switch, temperature probe, or gas valve.
Compatible Pitco Commercial Fryer Models
Listed applications for the original Pitco B6744401 include select configurations of:
- Pitco SG14
- Pitco SG14R
- Pitco SG14RS
- Pitco SG14S
- Pitco SG14T
- Pitco SG14DI
- Pitco SG14RDI
- Pitco SG14TDI
- Pitco SG18
- Pitco SG18S
- Pitco SG18DI
- Pitco SG18F
- Pitco SSH55
- Pitco SSH75
- Pitco SSH75RS
- Pitco SFSG14
- Pitco SFSG18
- Pitco SGM24
- Pitco SGM34
Compatibility depends on the fryer model, serial number, gas control configuration, and installed thermostat system. Verify that the equipment requires B6744401 before purchasing.
Millivolt High-Limit and Thermostat Wiring
The Pitco B6744401 wire harness is used in the millivolt thermostat and high-limit circuit of compatible commercial gas fryers.
The harness provides electrical connections between designated components of the fryer control system.
Proper wiring continuity is important for thermostat operation, high-limit safety functionality, and the equipment’s intended control sequence.
Damaged conductors, loose terminals, corrosion, or deteriorated insulation can interrupt electrical connections and cause operational problems.
Replacing a confirmed defective harness can help restore the intended electrical connections without changing the original control design.
Made in USA Replacement Construction
The Wholesale Sensors replacement is Made in USA and intended to match the required wiring arrangement for compatible Pitco fryer applications.
Correct conductor characteristics, terminal connections, insulation, and harness routing are essential for safe and reliable operation.
Before installation, compare the replacement with the original harness and the manufacturer’s wiring diagram.
The harness must be used only with equipment requiring the specified millivolt high-limit and thermostat wiring configuration.
Helps Address Common Fryer Wiring Problems
A defective Pitco fryer wiring harness may contribute to:
- Intermittent fryer operation
- Damaged or disconnected thermostat wiring
- Loose electrical terminal connections
- Interrupted millivolt control circuits
- Fryer failing to operate due to an open connection
- Heating interruptions caused by faulty wiring
- High-limit circuit continuity problems
- Deteriorated wiring insulation
- Unreliable electrical connections
Replacing the B6744401 harness may help correct these issues when the original wiring is the confirmed cause.
Similar symptoms may also result from a defective thermostat, high-limit device, gas valve, thermopile, or other control component.
Installation and Maintenance
Disconnect electrical power where applicable, shut off the gas supply, and allow the fryer to cool before servicing.
Identify the original harness and document all connections before removal.
Compare the replacement terminals and wiring configuration with the original component.
Install the new harness according to the Pitco wiring diagram and service instructions.
Secure the connections and route the wiring away from excessive heat, sharp edges, and moving components.
After installation, a qualified technician should verify the control circuit and all required safety functions before returning the fryer to service.
Never bypass the high-limit thermostat or other fryer safety controls.
Professional installation by a qualified commercial gas equipment technician is recommended.
Commercial Kitchen Applications
The Wholesale Sensors Pitco B6744401 replacement wire harness is intended for compatible commercial gas fryers used in restaurants, cafeterias, hotels, catering facilities, institutional kitchens, and professional foodservice operations.
It provides an aftermarket repair option for commercial kitchen technicians and maintenance professionals replacing damaged millivolt thermostat and high-limit wiring.
12-Month Warranty and USA-Based Support
Wholesale Sensors supplies aftermarket replacement components for commercial foodservice equipment, including wiring harnesses, temperature sensors, thermistors, and control-related parts.
This Made in USA Pitco B6744401 replacement wire harness includes a 12-month warranty and USA-based customer support.
Choose Wholesale Sensors for compatible commercial fryer replacement parts backed by responsive customer service.
