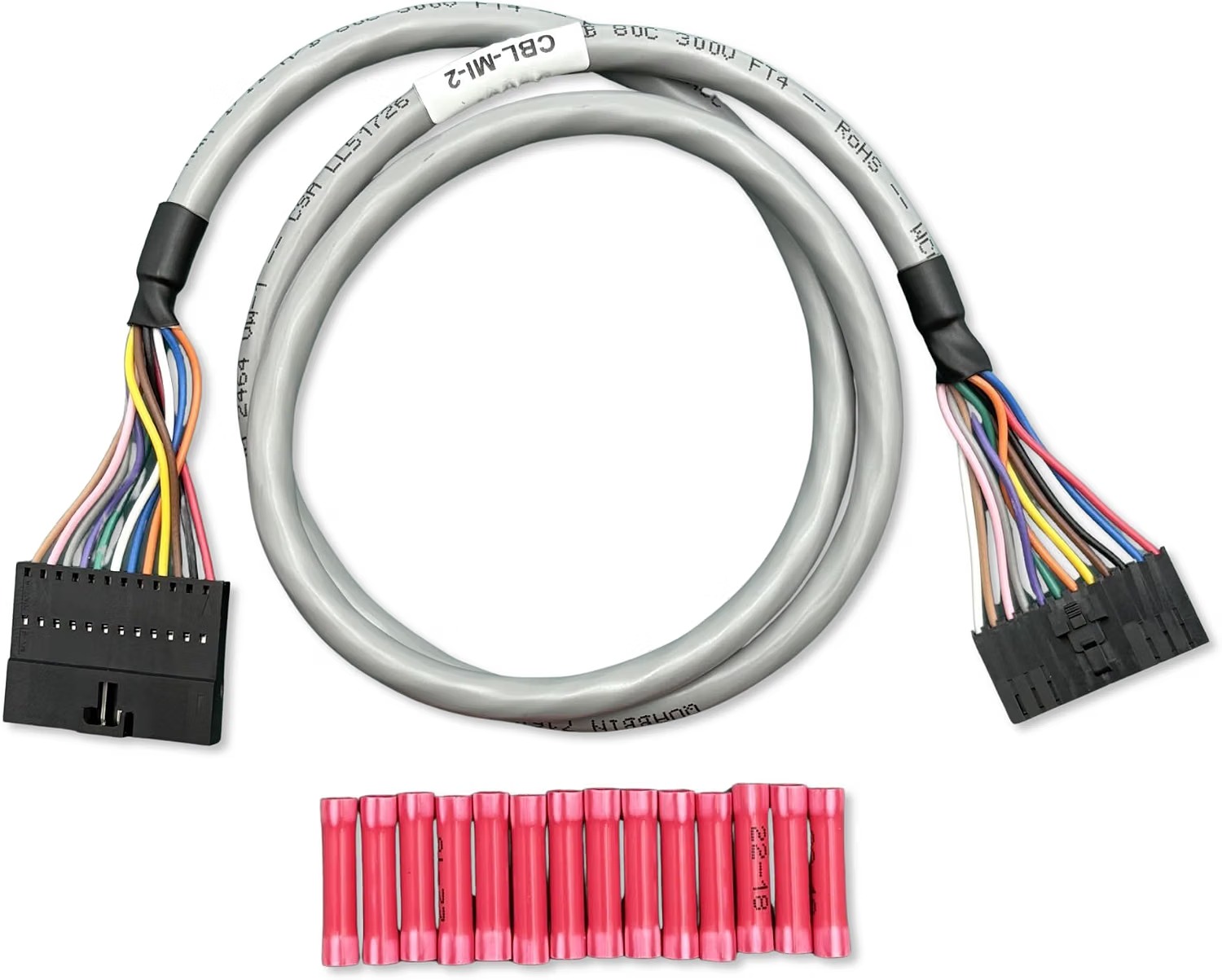

Replacement for Manitowoc Ice 000012046 Harness Membrane Extension Kit, 12 Month Warranty & Made in the USA

Restore a dependable electrical connection in your compatible Manitowoc commercial ice machine with the Wholesale Sensors Replacement for Manitowoc 000012046 Membrane Extension Kit. Designed as an aftermarket replacement for the original Manitowoc wire harness membrane extension kit, this component provides the electrical connection needed between compatible ice machine components and helps restore reliable operation when the original harness has become damaged, worn, loose, or electrically compromised.

The Manitowoc 000012046 is officially described by commercial foodservice parts suppliers as a Wire Harness Membrane Extension Kit or Harness Membrane Extension Kit. It is used in compatible Manitowoc commercial ice machines, particularly models within the NEO U-Series family. Parts Town describes the original 000012046 as a wire harness membrane extension kit designed to provide secure connections within compatible equipment.

This Wholesale Sensors component is engineered as a perfect OEM-style replacement designed to meet or exceed OEM specifications for compatible 000012046 applications. The primary manufacturer reference is Manitowoc 000012046. It is also cataloged by Parts Town as MAN000012046.

An especially important cross-reference is Manitowoc 040002053. Parts documentation identifies 040002053 as an older wire harness running from the control box to the wire chase connection and states that the part is no longer available and has been replaced by 000012046. Another commercial parts supplier likewise identifies 000012046 as the replacement for old number 040002053.

This information is useful when repairing an older Manitowoc ice machine because the number printed in service documentation or associated with the original harness may not match the current replacement number. If your machine specifies 040002053, the updated 000012046 reference should be used when confirming the correct replacement.

Compatibility includes a broad selection of Manitowoc NEO commercial ice machines. Documented applications include UD0140A, UD0140AE, UD0140W, UD0140WE, UD0190A, UD0190AE, UD0240A, UD0240AE, UD0240W, UD0240WE, UD0310A, UD0310AE, UD0310W, and UD0310WE.

Additional compatible equipment includes select UR-Series models such as UR0140A, UR0140AE, UR0190A, UR0190AE, UR0240A, UR0240AE, UR0310A, UR0310AE, and UR0310W. Parts Town specifically lists 000012046 among the replacement components for UR0140A and UR0240A equipment.

The harness is also documented for select UY-Series ice machines, including UY0140A, UY0140AE, UY0140W, UY0140WE, UY0190A, UY0190AE, UY0240A, UY0240AE, UY0240W, UY0240WE, UY0310A, UY0310AE, UY0310W, and UY0310WE.

The older 040002053 harness is specifically documented for UD0140A, UD0190A, UD0240A, UD0240W, UY0140A, UY0190A, UY0240A, and UY0240W, with 000012046 identified as its replacement. This provides additional support for compatibility with these popular Manitowoc NEO ice machine configurations.

Because commercial ice machines can have production revisions and electrical changes, compatibility should always be confirmed using the complete equipment model, serial number, original harness part number, connector arrangement, and wiring configuration. Do not purchase a wiring harness solely because the machine belongs to the same general Manitowoc product family.

The 000012046 is an electrical wiring harness component, not a temperature sensor, pressure sensor, or mechanical ice-making component. Its purpose is to provide the required electrical connection between compatible components. Reliable connections are essential because loose, damaged, corroded, or broken wiring can interrupt electrical signals and prevent the connected equipment from operating correctly.

A damaged membrane extension harness can potentially contribute to intermittent electrical operation, unresponsive controls, inconsistent membrane or touchpad response, loss of connection between components, or other control-related symptoms. The exact symptom depends on where the electrical fault occurs and which connected circuit is affected.

These symptoms do not automatically indicate that the 000012046 harness is defective. Similar problems can originate from the membrane or touchpad itself, damaged terminals, control board problems, loose connectors, damaged wiring elsewhere in the machine, incorrect power supply, moisture intrusion, or another electrical component.

Proper diagnosis should therefore be performed before replacing the harness. Start by disconnecting electrical power to the ice machine according to the manufacturer’s service procedures. Commercial ice machines contain hazardous electrical voltage and moving components, so qualified commercial refrigeration or foodservice technicians should perform repairs when appropriate.

Inspect the original harness carefully. Look for cut wires, damaged insulation, loose terminals, bent connector pins, corrosion, moisture, overheated terminals, broken conductors, damaged plugs, or wiring that has been pinched against sheet metal. Pay particular attention to areas where the harness bends, passes through openings, or connects to other components.

Electrical continuity can also be checked with an appropriate multimeter when the equipment is safely disconnected from power. An open circuit, intermittent conductor, or poor terminal connection can prevent reliable operation even when the outside of the harness appears undamaged.

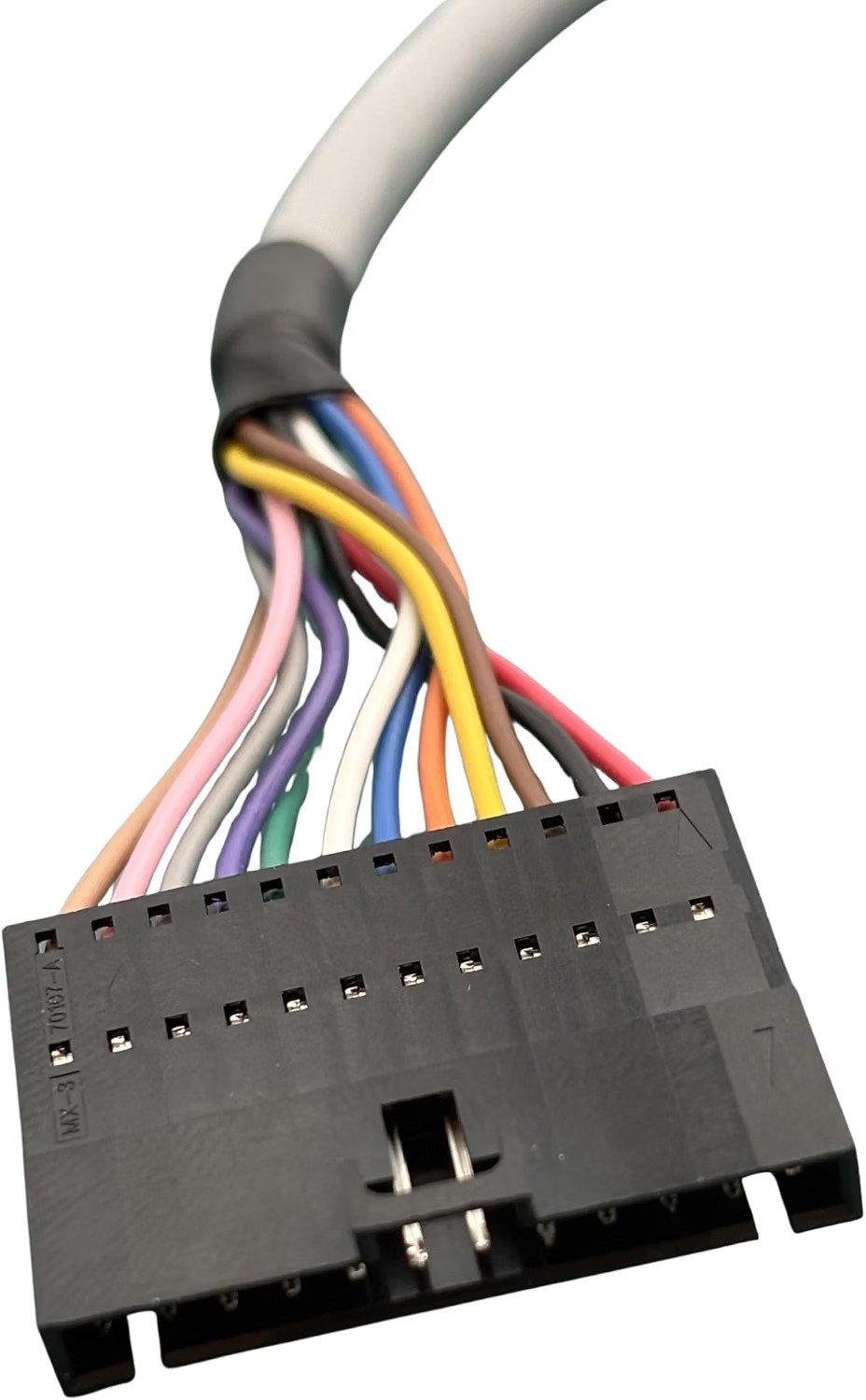

Before removing the original 000012046 or 040002053 harness, document its connector orientation, routing path, attachment points, and terminal locations. Taking a photo before disassembly can help ensure the replacement is installed in the same configuration.

Disconnect connectors by handling the connector body rather than pulling directly on the wires. Inspect mating terminals before installing the replacement. A new harness should not be connected to a severely corroded, burned, bent, or otherwise damaged mating terminal without correcting the underlying problem.

Install the replacement harness following the original routing. Keep wiring protected from sharp sheet-metal edges, hot surfaces, moving components, water exposure beyond the intended design, and areas where panels could pinch the conductors. Secure the harness according to the equipment configuration and confirm that every connector is fully seated before restoring electrical power.

After installation, reinstall all guards and access panels, restore power, and test normal ice machine operation. Confirm that the connected control functions respond correctly. If the original problem remains, continue diagnosis of the membrane assembly, control board, power supply, related wiring, and other connected components.

Commercial Manitowoc ice machines do not use automotive OBD-II diagnostic trouble codes, so automotive codes do not apply to the 000012046 harness. Manitowoc equipment may provide machine-specific diagnostics depending on the model and control system. Always use the service documentation for the exact ice machine when interpreting an alarm or control problem.

The original Manitowoc 000012046 is documented as a dedicated membrane extension wiring harness, and Parts Town lists popular applications including UR0310A, UD0140WE, and UR0310W. Other equipment-specific parts pages confirm 000012046 for machines such as UD0140A, UD0240A, UD0240W, UR0140A, and UR0240A.

Each Wholesale Sensors replacement is built for dependable commercial equipment service and is rigorously inspected and tested for electrical continuity, connection integrity, terminal security, fit, and reliable electrical performance. Durable insulated wiring and secure connections help provide consistent operation in demanding commercial ice machine environments.

Wholesale Sensors specializes in aftermarket replacement components for commercial foodservice equipment, ice machines, refrigeration systems, HVAC equipment, appliances, pool and spa systems, automotive applications, RV equipment, and industrial systems. Responsive USA-based product support is available to assist with part identification and compatibility questions.

Before ordering the Wholesale Sensors Replacement for Manitowoc 000012046 Membrane Extension Kit, verify your complete Manitowoc ice machine model and serial number and confirm that the equipment specifies 000012046 or obsolete 040002053. With confirmed compatibility, this replacement provides application-specific fit, dependable electrical connections, rigorously tested performance, and a practical repair solution for compatible Manitowoc NEO commercial ice machines.
