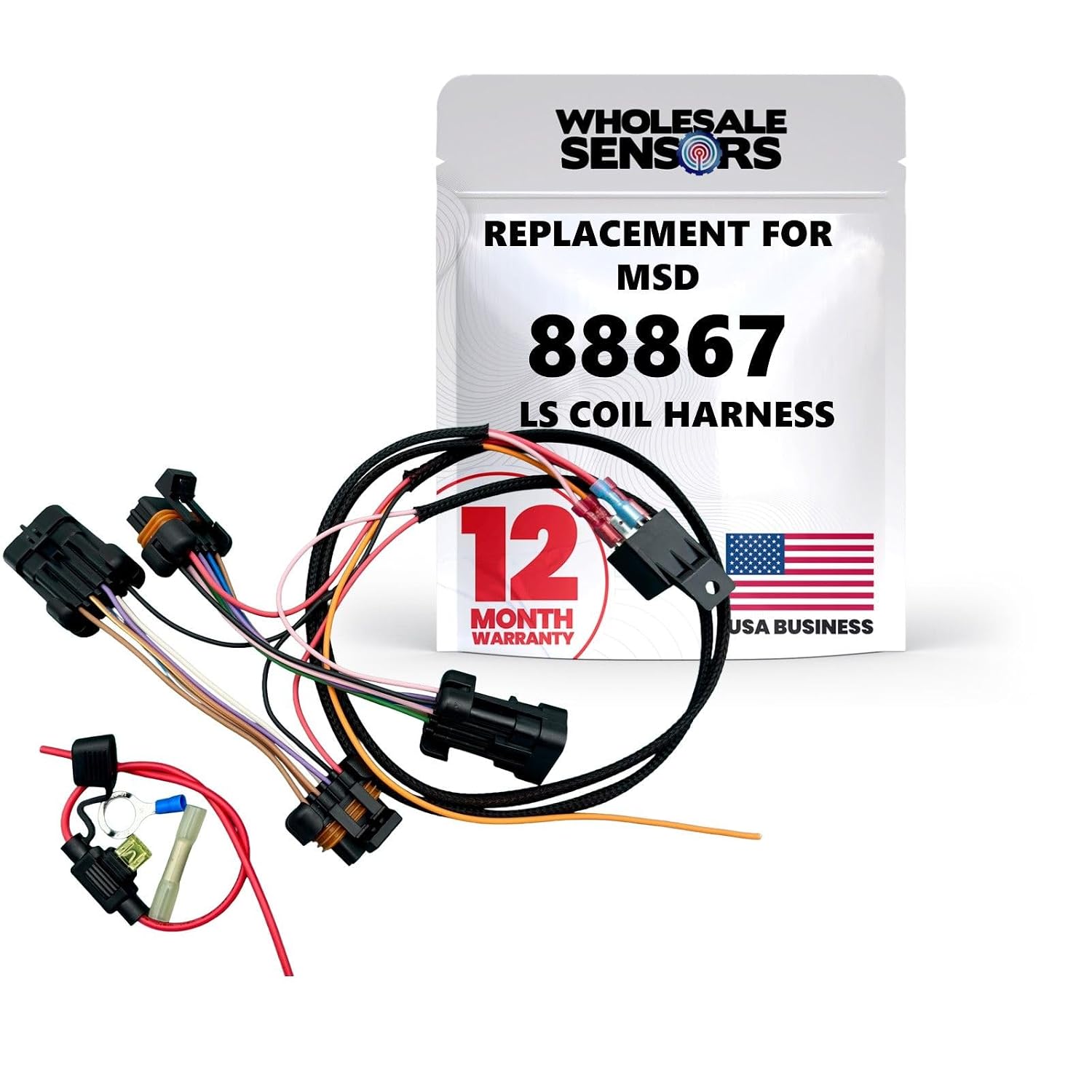

Replacement MSD 88867 LS Coil Power Upgrade Harness & Relay Kit, 12 Month Warranty & US Based Support

Improve power delivery to your GM LS ignition coils with the Wholesale Sensors Replacement for MSD 88867 LS Coil Power Upgrade Harness & Relay Kit, backed by a 12-Month Warranty and responsive US-based product support. Designed for compatible GM LS ignition systems, this power upgrade harness provides a more direct and reliable electrical path to the ignition coils, helping overcome limitations that can occur with factory coil power wiring during demanding engine operation.

The original MSD 88867 LS Coil Power Upgrade Harness was developed specifically to address variations in the factory wiring used to supply voltage and current to LS ignition coils. According to MSD, original equipment applications used different wire gauges within the main coil harness. Under sustained high RPM and extreme engine loads, the factory wiring may not always provide sufficient current to the coils. MSD notes that this condition can contribute to a Check Engine Light and lower-than-expected ignition performance.

This Wholesale Sensors harness is engineered as a perfect OEM-style replacement for MSD 88867, designed to meet or exceed the performance requirements of the original power upgrade harness for compatible applications. The primary replacement and cross-reference number is MSD 88867. It may also appear in retailer catalogs as MSD-88867 or 121-88867, but these references identify the same MSD 88867 application rather than separate OEM components.

Unlike a standard replacement coil harness that simply carries the existing factory power supply, the 88867-style upgrade provides a dedicated power path for the ignition coils. The system incorporates a relay and fused battery power connection, allowing the coils to receive the current required for reliable operation without relying exclusively on the original factory power feed.

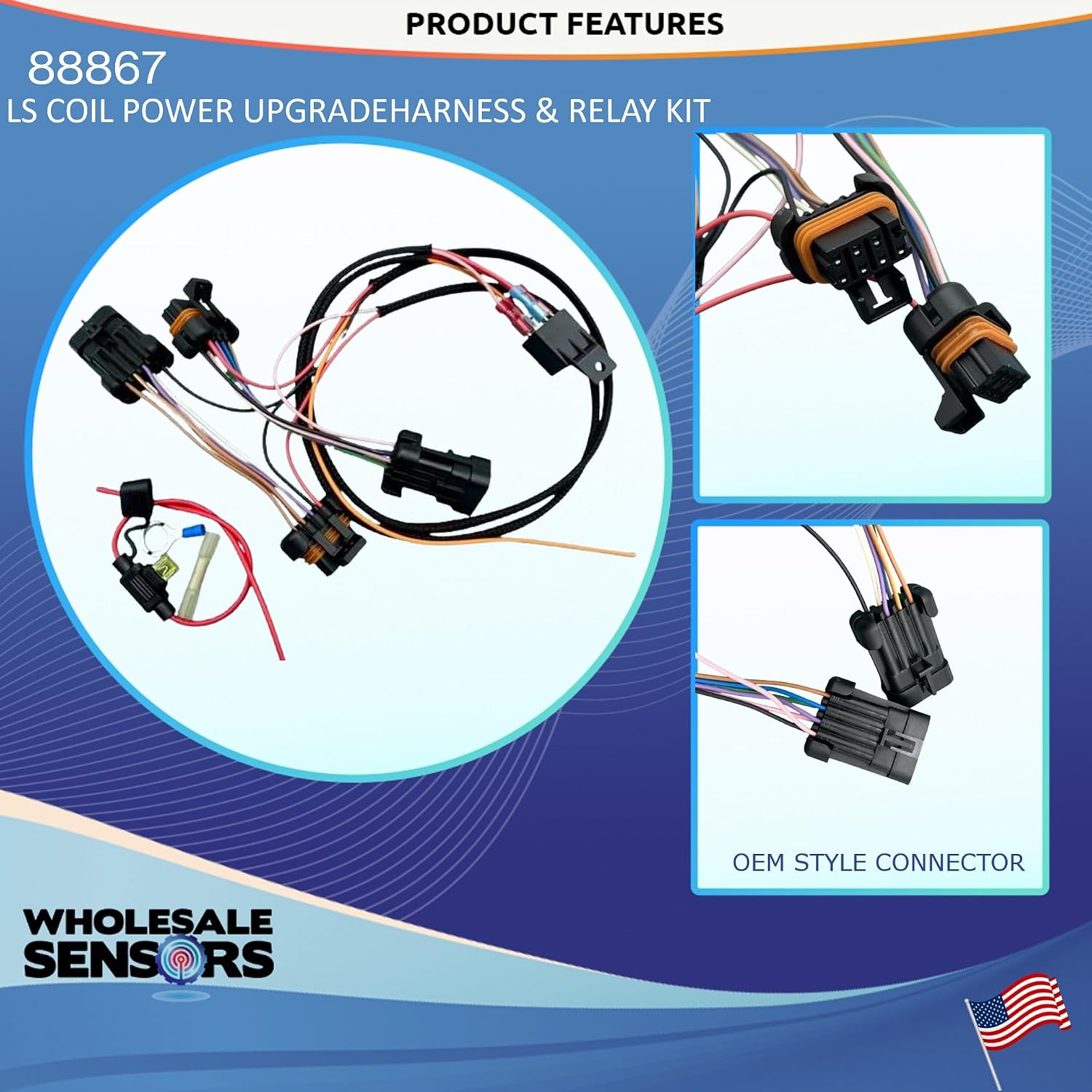

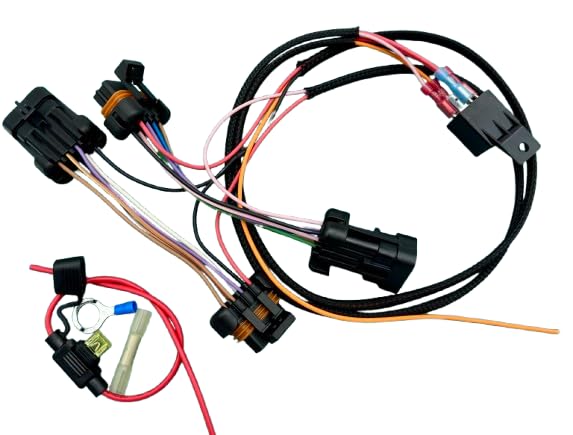

MSD’s installation documentation confirms that the original 88867 kit includes the harness, fuse holder, relay circuit, 20-amp fuse, ring terminal, and associated electrical connection hardware. The harness plugs between the original vehicle wiring and the coil harnesses on both cylinder banks. Its dedicated power lead is then connected to the positive battery terminal.

This design is especially useful in performance applications where the ignition system is operating under demanding conditions. High engine speeds and heavy loads increase the importance of consistent ignition coil performance. If the electrical supply feeding the coils is restricted by undersized wiring, voltage drop, poor connections, or excessive electrical resistance, the coils may not receive the power expected by the ignition system.

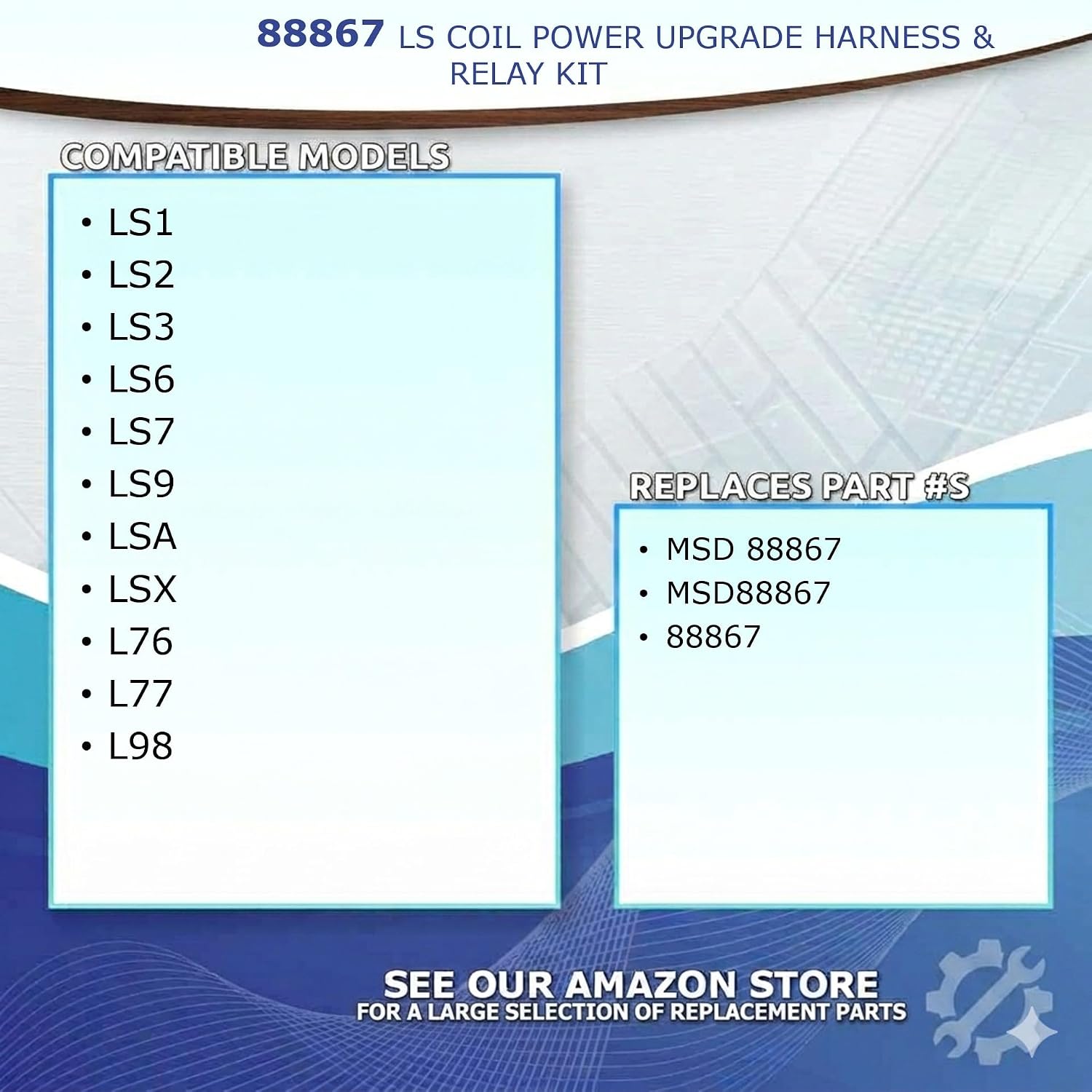

The replacement harness is intended for compatible GM LS-series ignition systems. Application references identify compatibility with GM Gen III and Gen IV LS engine families including select LS1, LS2, LS3, LS6, LS7, LS9, LSA, and LSX configurations. Because LS engines have been installed in numerous factory vehicles and are also widely used for engine swaps, restomods, racing vehicles, and custom builds, compatibility should be determined by the engine’s actual ignition system and connector configuration rather than vehicle model alone.

MSD specifically recommends the 88867 harness for use with its Pro Power LS ignition coils, but the manufacturer also states that the harness can be used with compatible OE coils. This makes the upgrade useful for vehicles retaining factory-style ignition coils as well as performance builds using compatible MSD LS coil packs.

This distinction is important because not every GM LS or LT engine configuration uses the same coil connectors or wiring architecture. Later-generation engines and certain vehicle applications may use different electrical systems. Customers should verify the engine generation, ignition coil type, factory coil harness connectors, and existing wiring configuration before ordering.

The primary purpose of this product is power delivery, not increasing ignition timing or changing engine calibration. The harness does not replace the engine control module, ignition controller, or ignition coils. Instead, it provides a dedicated electrical supply to help compatible coils operate with the voltage and current they require.

A factory coil power circuit that cannot adequately support the ignition system under load may contribute to a variety of symptoms. MSD specifically identifies a Check Engine Light and reduced performance expectations under sustained high RPM and extreme loads as reasons for using the 88867 power upgrade harness.

Depending on the vehicle and the underlying electrical condition, ignition problems may also present as hesitation, inconsistent operation, misfire-like behavior, or reduced performance under load. However, this harness should not be advertised as a guaranteed repair for specific OBD-II trouble codes. Misfire codes such as P0300 through P0308 can have many possible causes, including spark plugs, coils, injectors, mechanical engine problems, fuel delivery issues, wiring faults, poor grounds, or calibration problems.

Proper diagnosis should always come first. Before installing the harness to address a performance problem, inspect the ignition coils, coil connectors, grounds, charging system, battery condition, spark plugs, and existing wiring. If a Check Engine Light is present, scan the vehicle for stored diagnostic trouble codes and use those codes as part of a complete diagnostic process.

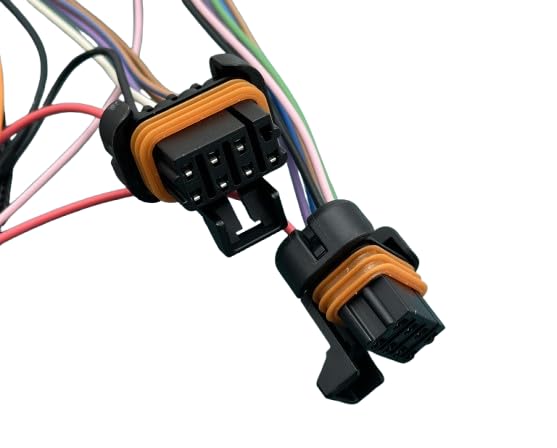

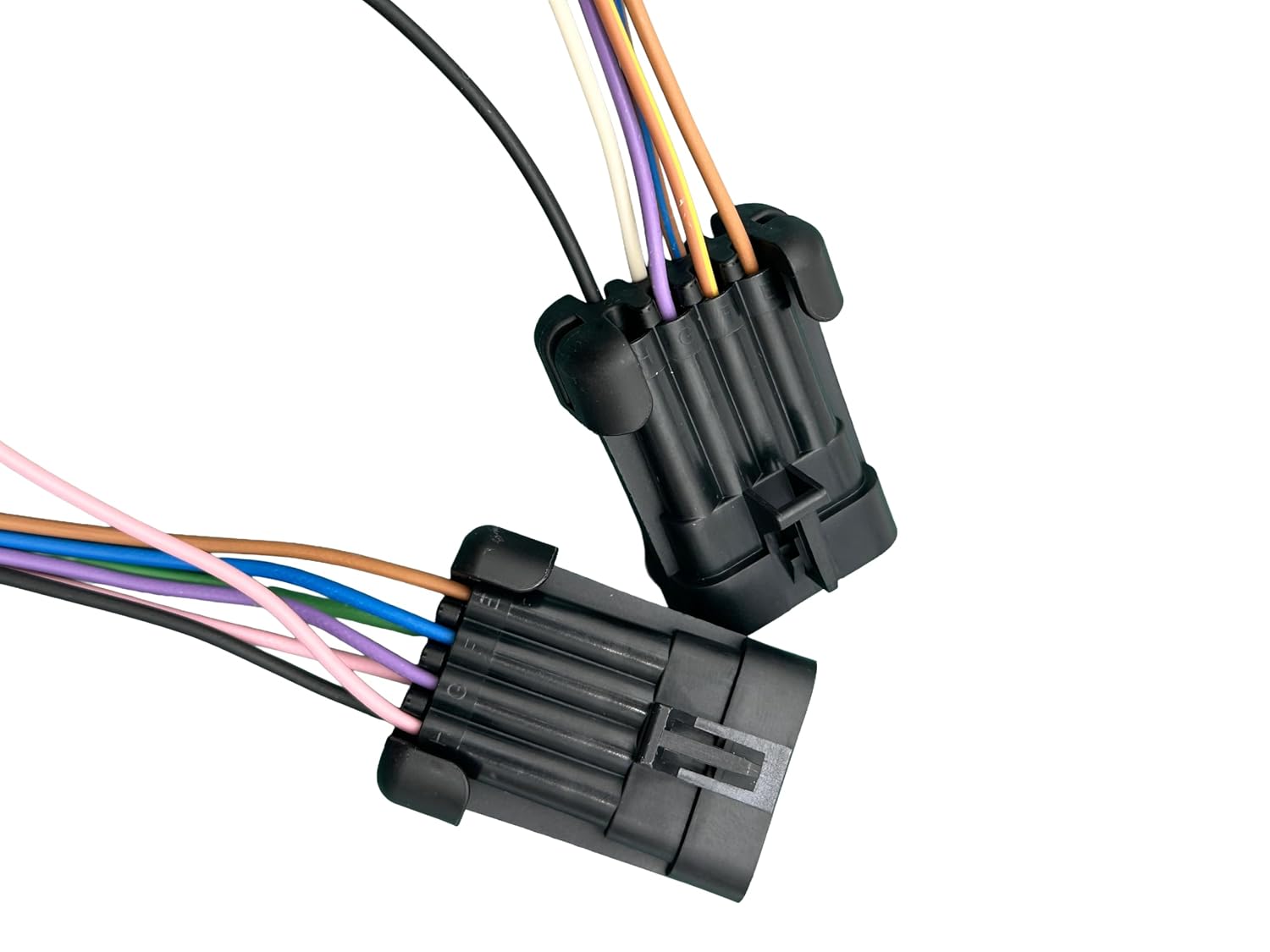

Installation is straightforward because the 88867 design is intended as a direct plug-in LS coil power upgrade. MSD’s original instructions specify locating the OEM harness connections for the coil harnesses on both sides of the engine, unplugging the coil harnesses from the OEM harness, and connecting the upgrade harness between the factory wiring and both coil harnesses.

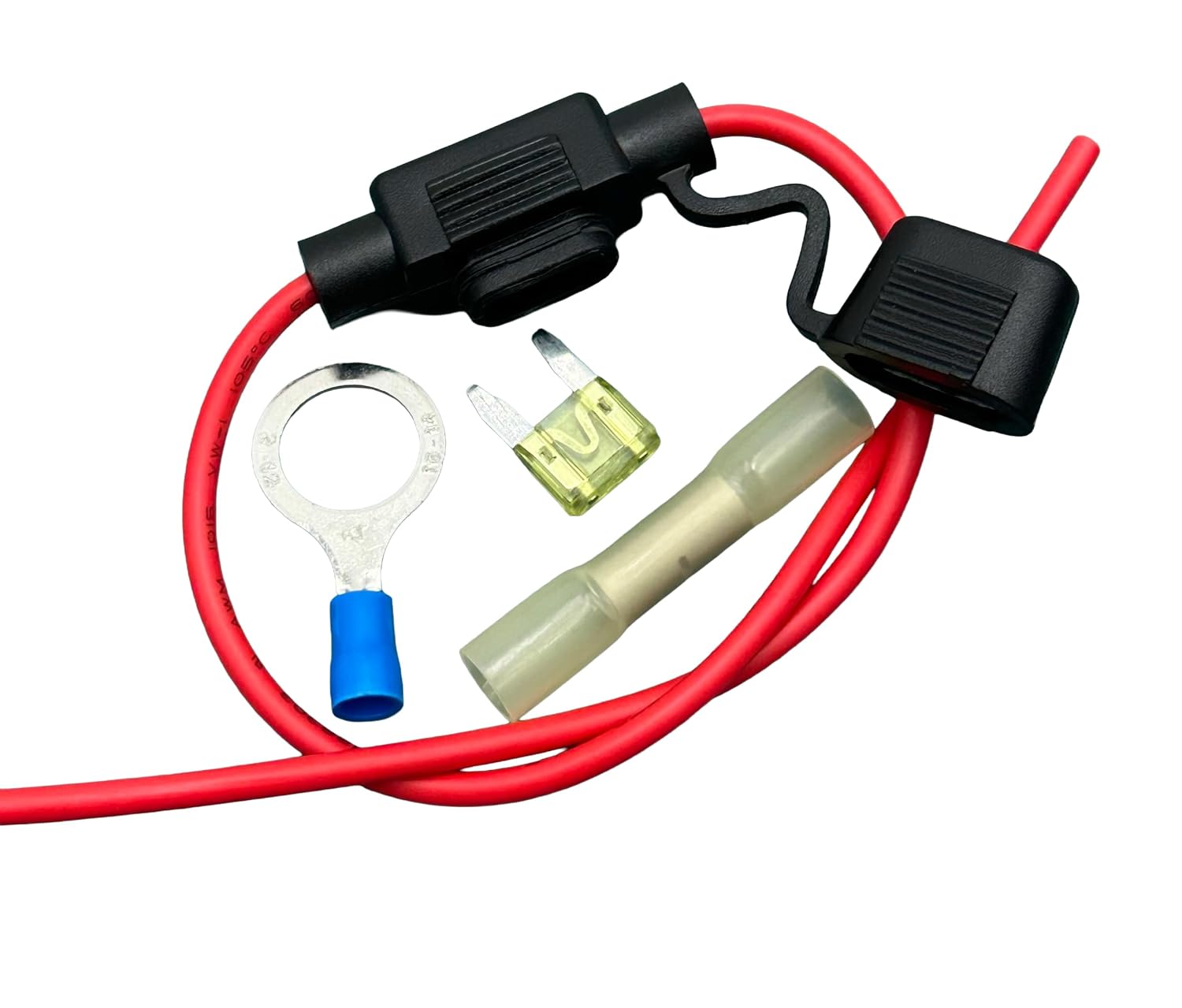

The relay should be mounted securely in a suitable location. The dedicated positive power lead connects to the battery positive terminal, and the fuse is installed in the supplied fuse holder. This arrangement allows battery power to reach the coil circuits through the relay while maintaining circuit protection.

Correct wire routing is essential. MSD specifically instructs installers to keep wiring away from heat sources, sharp objects, and corrosive materials. In an LS engine compartment, the harness should be kept clear of exhaust manifolds or headers, accessory drive components, belts, pulleys, and other locations where heat or movement could damage the insulation.

Before performing electrical work, disconnect the battery according to the vehicle manufacturer’s recommended procedure. Carefully compare all connectors with the existing harness before installation. Never force an electrical connector that does not match the corresponding terminal.

After installation, verify that the relay and fuse holder are securely mounted, the battery connection is tight, and all coil harness connectors are fully seated. Start the engine and inspect the system for normal operation. If a Check Engine Light or performance problem remains, continue diagnosis rather than assuming the new harness is defective.

The Wholesale Sensors replacement is built with durable automotive-grade wiring, secure factory-style connections, an integrated relay, and fused power protection for dependable operation in compatible LS ignition systems. Each harness is rigorously tested for electrical continuity, connection integrity, fit, and reliable power delivery before shipment.

Whether you are maintaining a factory-powered LS vehicle, upgrading ignition coils, building an LS swap, or troubleshooting inadequate coil power in a performance application, the Wholesale Sensors Replacement for MSD 88867 LS Coil Power Upgrade Harness & Relay Kit provides a practical solution for improving the electrical path supplying your ignition coils.

Every kit is backed by a strong 12-Month Warranty and responsive US-based product support. Before ordering, confirm that your LS engine uses compatible factory-style coil harness connections and compare your application with MSD part number 88867. With confirmed fitment, this replacement provides dependable coil power delivery, integrated relay and fuse protection, straightforward installation, rigorously tested construction, and the confidence of Wholesale Sensors support.
