Pitco B6746501 SG Relay Board to Control Wire Harness, Replacement with 12 Month Warranty & USA Business

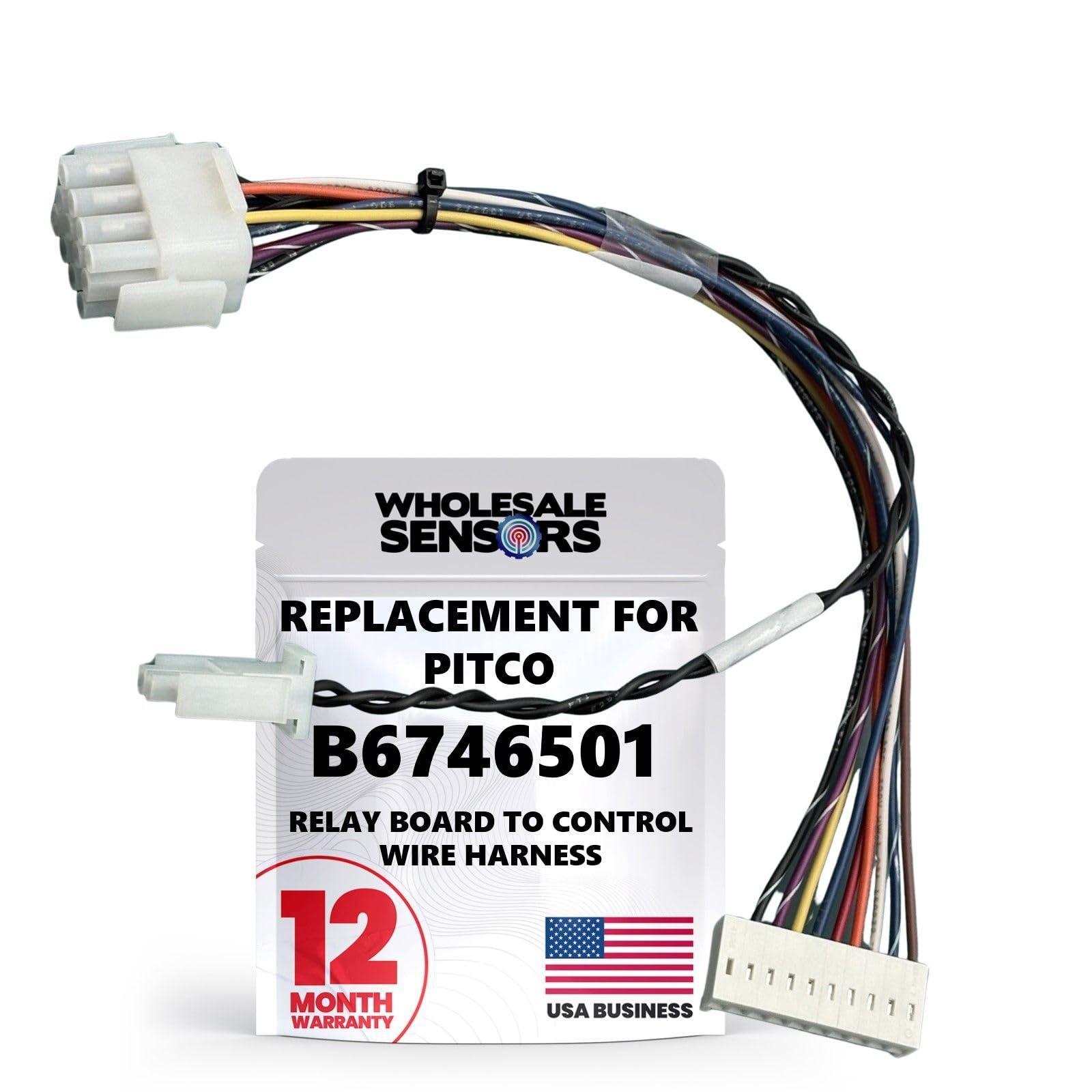

Overview OEM-STYLE RELAY BOARD WIRING HARNESS REPLACEMENT: Wholesale Sensors replacement for Pitco B6746501 is a commercial fryer…
- OEM-STYLE RELAY BOARD WIRING HARNESS REPLACEMENT: Wholesale Sensors replacement for Pitco B6746501 is a commercial fryer relay board-to-control wiring harness designed for compatible Pitco SG Series fryers. Direct replacement for Pitco OEM part number B6746501 when the original wiring configuration matches. Helps restore electrical connections between the relay board and control system without replacing unrelated fryer components.
- PITCO SG FRYER COMPATIBILITY: Designed for select Pitco SG Series commercial gas fryers requiring relay board-to-control wire harness B6746501. Suitable for compatible restaurant and foodservice frying equipment using the specified relay board and controller configuration. Verify the fryer model, serial number, OEM part number, connector arrangement, and electrical specifications before ordering. Not a universal replacement for all Pitco SG fryers.
- DEPENDABLE ELECTRICAL CONNECTIONS: Designed for compatible Pitco commercial fryer electrical repairs, this B6746501 wiring harness connects designated relay board and control system circuits. Proper terminal engagement, secure electrical connectors, suitable insulation, and correct wire routing help maintain dependable electrical continuity. Matching the original equipment's wiring specifications supports consistent operation in commercial kitchen environments.
- DIRECT REPLACEMENT & CONTROL CIRCUIT REPAIR: May help address intermittent fryer operation, relay board communication problems, damaged wiring, and control circuit interruptions caused by a defective harness. Designed for direct replacement where Pitco B6746501 is specified. Disconnect electrical power, follow gas shutdown procedures, and allow the fryer to cool before installation. A replacement harness will not correct defective relay boards, controllers, or safety devices.
- 12-MONTH WARRANTY & USA-BASED SUPPORT: Wholesale Sensors is a USA-based business supplying aftermarket commercial fryer wiring harnesses, electrical connectors, temperature probes, and replacement components. This Pitco B6746501 relay board-to-control wiring harness includes a 12-month warranty and responsive USA-based customer support. Ideal for restaurants, commercial kitchens, foodservice maintenance teams, and professional fryer repair technicians.
QUANTITY
Technical Support
Questions? Our USA-based team can help with compatibility and installation.
Contact Support →DESCRIPTION Replacement for Pitco B6746501 Relay Board to Control Wiring Harness, SG Fryer, 12-Month Warranty Restore dependable electrical connections in your commercial …
Replacement for Pitco B6746501 Relay Board to Control Wiring Harness, SG Fryer, 12-Month Warranty
Restore dependable electrical connections in your commercial fryer with the Wholesale Sensors Replacement for Pitco B6746501 Relay Board to Control Wiring Harness.
Designed as an OEM-style aftermarket replacement for compatible Pitco SG Series commercial fryers, this wiring harness connects designated relay board and control circuits in equipment requiring original part number B6746501.
A properly functioning wiring harness helps maintain electrical continuity between the fryer controller and relay board. Damaged wiring, loose terminals, or deteriorated connectors can interrupt these connections and contribute to equipment operating problems.
Replacing a confirmed defective harness may help restore normal electrical communication without replacing unrelated fryer components.
OEM Replacement and Product Specifications
OEM Part Number References:
- Pitco B6746501
- Pitco B6746501 Relay Board to Control Wire Harness
- Pitco B6746501 SG Fryer Wiring Harness
Product Specifications:
| Specification | Details |
|---|---|
| Product Type | Relay Board to Control Wiring Harness |
| OEM Replacement Part Number | B6746501 |
| Brand Compatibility | Pitco |
| Equipment Series | Select Pitco SG Fryers |
| Application | Commercial Fryer Electrical Control Systems |
| Function | Relay Board to Controller Electrical Connection |
| Replacement Type | Direct Replacement for Matching OEM Configuration |
| Warranty | 12 Months |
| Customer Support | USA-Based |
Additional OEM supersession and interchangeable part numbers should be verified using the manufacturer’s parts catalog.
Compatible Pitco SG Commercial Fryers
The Pitco B6746501 replacement wiring harness is intended for select Pitco SG Series commercial fryers requiring this specific relay board-to-control wiring assembly.
Potential applications include compatible:
- Pitco SG Series commercial gas fryers
- Pitco SG fryer relay board installations
- Pitco electronic fryer control systems
- Pitco commercial fryer configurations requiring B6746501
- Pitco restaurant frying equipment with matching relay board and controller connections
Compatibility depends on the fryer’s model number, serial number, electrical configuration, installed relay board, and original wiring harness specifications.
Before purchasing, verify the original OEM part number using the equipment’s service manual or model-specific parts diagram.
Compare the replacement harness with the original component to confirm the correct connector arrangement, terminal configuration, wire routing, and electrical requirements.
This product is not a universal replacement for all Pitco SG Series fryers.
Relay Board to Control Wiring Harness Function
The Pitco B6746501 relay board-to-control wiring harness provides electrical connections between the designated relay board and controller in compatible commercial frying equipment.
The fryer control system relies on electrical connections to exchange signals with connected components.
The relay board operates designated electrical circuits according to the equipment’s control system design.
A properly connected harness helps maintain the electrical pathways required for these functions.
When the original wiring assembly becomes damaged, disconnected, or corroded, the fryer may experience intermittent control operation or electrical circuit faults.
Replacing a confirmed defective harness may help restore electrical continuity.
Important: This product is a replacement wiring harness, not a relay board, electronic controller, temperature probe, ignition module, or complete fryer control system.
Electrical Connections and Harness Construction
The Wholesale Sensors Pitco B6746501 replacement wiring harness is designed for compatible commercial fryer electrical repairs.
The harness provides a replacement option when the original relay board-to-control wiring assembly becomes damaged or deteriorated.
Important compatibility and installation considerations include:
- Matching electrical connector configuration
- Correct terminal arrangement
- Proper wire-to-circuit connections
- Secure connector engagement
- Suitable electrical insulation
- Correct harness routing
- Protection from excessive heat and abrasion
- Compatibility with the original relay board and controller
Correct installation and electrical specifications are essential for dependable operation.
Direct Replacement for Pitco B6746501
The Wholesale Sensors Replacement Pitco B6746501 Wiring Harness is intended for equipment requiring the original Pitco B6746501 configuration.
The replacement is designed to connect compatible relay board and controller interfaces using the designated electrical connection points.
Before installation, compare the replacement harness with the original wiring assembly.
Verify the connector types, terminal arrangement, and electrical requirements.
Do not modify the harness, substitute incompatible electrical connections, or bypass fryer safety circuits.
Helps Resolve Common Pitco Fryer Electrical Problems
A damaged relay board-to-control wiring harness may contribute to:
- Intermittent fryer control operation
- Loose relay board connections
- Damaged or deteriorated wiring
- Corroded connector terminals
- Open electrical circuits
- Poor electrical continuity
- Intermittent control signals
- Unreliable operation of connected components
- Electrical control system warnings
- Wiring-related equipment interruptions
Replacing a defective Pitco B6746501 wiring harness may help resolve these problems when the original harness is responsible.
Similar symptoms can result from defective relay boards, electronic controllers, power supply problems, or faults elsewhere in the equipment.
Proper diagnosis is recommended before replacing components.
Pitco SG Fryer Error Codes and Troubleshooting
Depending on the fryer model and installed controller, damaged wiring connections may contribute to:
- Electrical circuit faults
- Open-circuit conditions
- Intermittent controller operation
- Relay control circuit problems
- Electrical connection warnings
- Equipment operation interruptions
Exact error codes and diagnostic messages vary by fryer model and controller.
Commercial fryers do not use standardized automotive OBD-II diagnostic trouble codes.
An electrical fault does not automatically indicate that the wiring harness requires replacement.
Always consult the Pitco service manual for model-specific diagnostic procedures.
Installation and Replacement Instructions
Turn off the commercial fryer and disconnect electrical power according to the manufacturer’s service procedures.
For gas-powered equipment, follow the manufacturer’s instructions for safely shutting down the gas supply when required.
Allow the cooking oil and surrounding fryer components to cool completely before beginning repairs.
Locate the original relay board-to-control wiring harness using the appropriate Pitco service manual.
Document the existing connector locations, wiring arrangement, and harness routing before removal.
Inspect the electrical connectors, terminals, relay board connections, and surrounding wiring for damage or corrosion.
Compare the replacement Pitco B6746501 harness with the original assembly.
Disconnect and remove the defective harness according to the manufacturer’s instructions.
Install the replacement using the designated relay board and controller connections.
Route the wiring according to the original equipment configuration, keeping it away from excessive heat, sharp edges, and moving components.
Verify that all electrical connectors are fully seated and secured.
After installation, restore equipment operation and confirm proper functionality using the manufacturer’s recommended testing procedure.
Safety Notice: Never bypass high-temperature limit switches, gas safety controls, electrical protection devices, or other fryer safety systems.
Professional installation by a qualified commercial foodservice equipment technician is recommended.
Commercial Kitchen and Foodservice Applications
The Wholesale Sensors Replacement Pitco B6746501 Relay Board to Control Wiring Harness provides an aftermarket repair option for compatible commercial frying equipment.
Suitable for:
- Restaurants
- Quick-service restaurants
- Commercial kitchens
- Institutional foodservice facilities
- Catering operations
- Commercial fryer maintenance teams
- Professional restaurant equipment repair companies
- Commercial foodservice equipment technicians
Replacing a damaged wiring harness may help restore electrical connections without replacing unrelated fryer components.
12-Month Warranty and USA-Based Support
Wholesale Sensors is a USA-based business supplying aftermarket commercial fryer wiring harnesses, temperature sensors, electrical connectors, and replacement components for restaurant and foodservice equipment.
The Wholesale Sensors Replacement for Pitco B6746501 Relay Board to Control Wiring Harness includes a 12-month warranty with responsive USA-based customer support.
Choose Wholesale Sensors for compatible Pitco SG fryer electrical repairs backed by dependable customer service.
