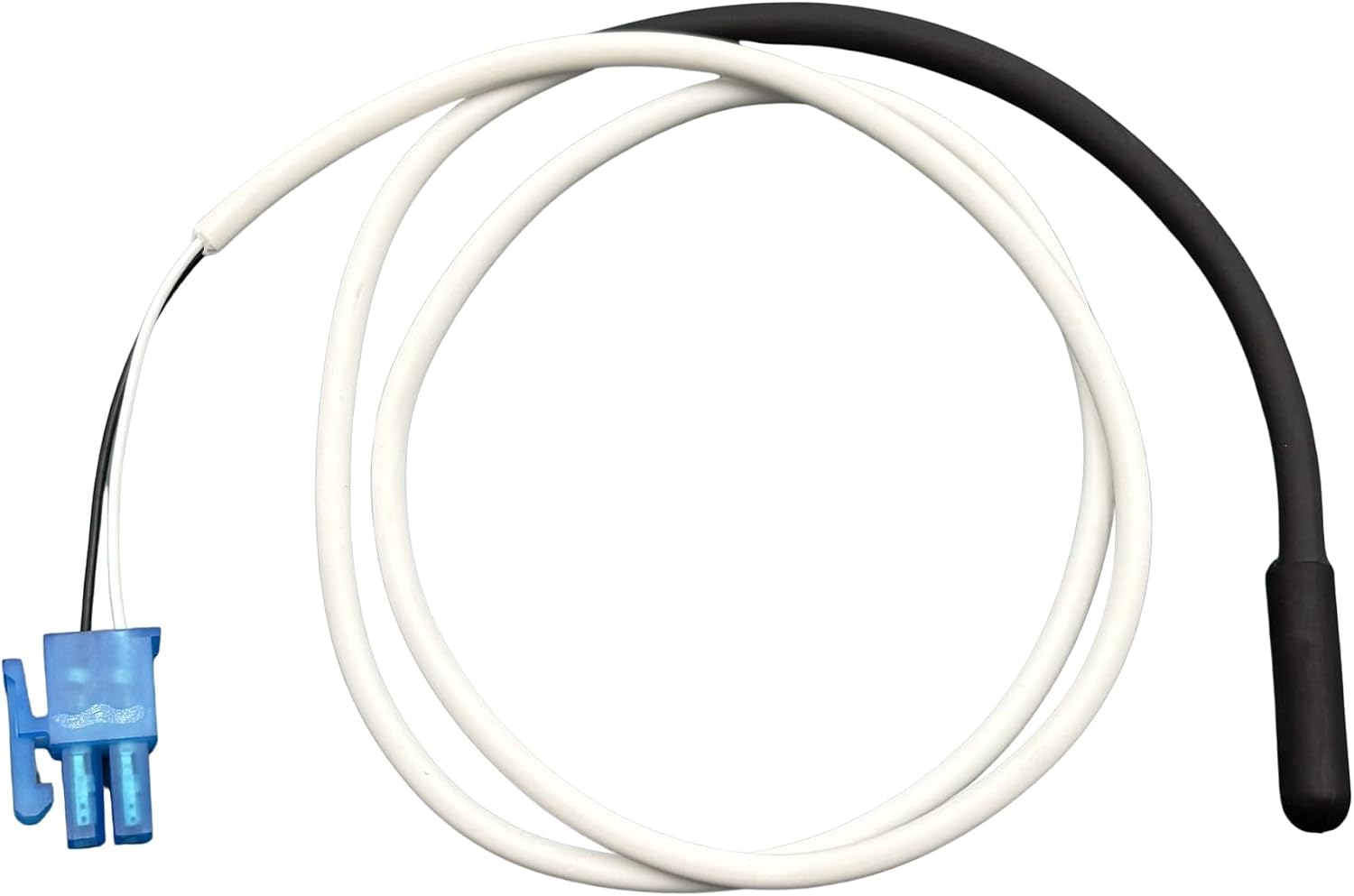

Wholesale Sensors Dometic 3312303005 Replacement Thermistor RV Air Conditioner 24 Month Warranty

Restore dependable evaporator temperature monitoring with the Wholesale Sensors Dometic 3312303005 Replacement Thermistor for RV Air Conditioner, backed by a 24 Month Warranty and responsive USA-based product support. This replacement freeze control temperature sensor is designed for compatible Dometic and Duo-Therm RV air conditioning systems that use the 3312303005, commonly formatted by Dometic as 3312303.005, thermistor wire assembly. Dometic service-parts documentation identifies 3312303.005 as a service thermistor wire assembly, confirming its role as a replacement temperature-sensing component within compatible climate-control systems.

The thermistor performs an important job inside an RV air conditioner. During normal cooling operation, the evaporator coil becomes cold as heat is removed from the interior air. The thermistor monitors temperature at the evaporator and provides temperature-dependent feedback to the air conditioner control system. Accurate temperature sensing helps the system respond when evaporator conditions become too cold, supporting proper freeze-control operation and consistent cooling.

This Wholesale Sensors thermistor is engineered as a perfect OEM-style replacement designed to meet or exceed OEM specifications for compatible applications. The primary replacement numbers are Dometic 3312303005 and 3312303.005. The 3312303.005 part is also documented as superseding 3309711.004, giving owners and technicians another useful reference when identifying older Dometic A/C systems.

Compatibility covers a broad selection of Dometic and Duo-Therm RV air conditioning equipment. Published parts information identifies 3312303.005 for select 579, 590, 591, 595, 600, and 630 Series Dometic A/C units. It is also documented for Duo-Therm Penguin air conditioner applications. Because these series were produced in numerous configurations, customers should verify their complete air conditioner model number and original thermistor number before ordering rather than relying only on the appearance of the rooftop unit.

The compatibility range extends beyond those broad series references. Parts documentation identifies 3312303.005 for numerous specific Dometic configurations within the 541, 551, 641, and 651 families. Examples include 541815, 541816, 541915, 541916, 551816, 641835, 641915, 641916, 651815, 651816, and 651916 configurations, with exact suffixes varying according to the individual A/C assembly.

Dometic service documentation also confirms the thermistor wire harness in specific Penguin units. For example, model 641515.301D0 Penguin AC CCC identifies 3312303.005 as the service thermistor wire harness. The same part is identified in 651515.301D0 Penguin heat pump CCC and 651516.301J0 Penguin heat pump configurations. This illustrates why checking the full rooftop A/C model is the best way to confirm fitment.

When a freeze-control thermistor becomes damaged, disconnected, electrically unstable, or inaccurate, the air conditioner may no longer receive reliable evaporator temperature information. Potential symptoms can include evaporator coil freeze-up, reduced airflow, inconsistent cooling, abnormal compressor cycling, or unexpected cooling interruptions. However, these symptoms do not automatically mean the thermistor has failed.

An RV air conditioner can freeze for several reasons. Restricted airflow from a dirty filter, dirty evaporator coil, obstructed return air path, blower problems, unusually high humidity, control-system issues, or other refrigeration problems may produce similar symptoms. Before replacing the sensor, inspect the air filter, evaporator condition, airflow, wiring, connector, and thermistor placement. Proper diagnosis helps avoid replacing a functioning sensor when another condition is responsible for the cooling problem.

Unlike automotive sensors, this Dometic RV air conditioner thermistor does not use automotive OBD-II diagnostic trouble codes. Diagnostic behavior depends on the specific Dometic control system and thermostat installed with the rooftop unit. If the system displays a fault or behaves abnormally, consult the service information for the exact A/C and thermostat configuration before assuming the thermistor is defective.

Installation is designed to be straightforward when replacing an existing compatible thermistor. The replacement sensor should be installed in the same location and orientation as the original so it can correctly monitor evaporator temperature. The wiring should be routed securely and kept away from moving components or locations that could damage the insulation.

Before beginning service, disconnect all applicable electrical power to the RV air conditioning system. Rooftop air conditioners contain high-voltage electrical components and capacitors that can retain electrical energy. If you are not familiar with RV air conditioner service procedures, installation should be performed by a qualified RV or HVAC technician.

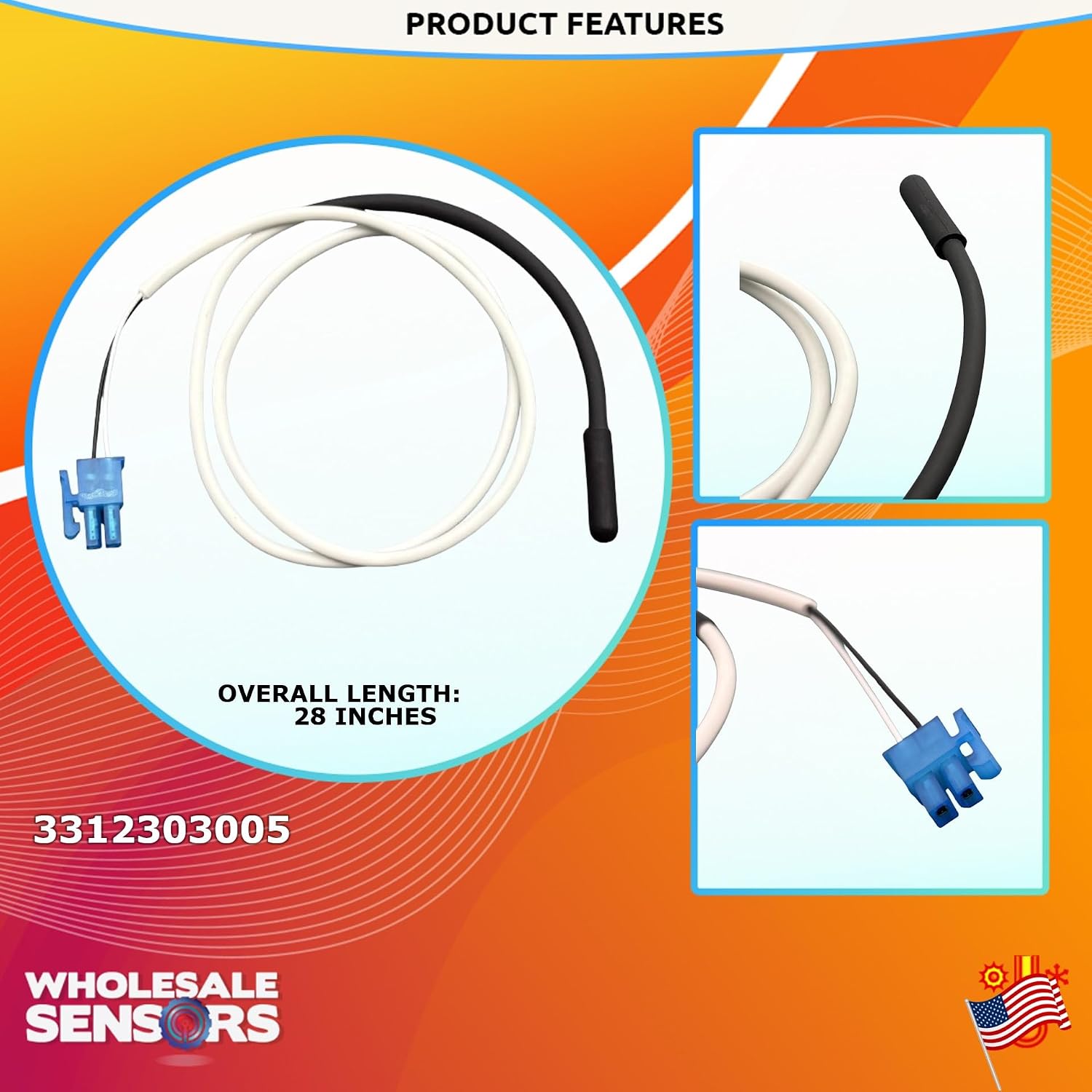

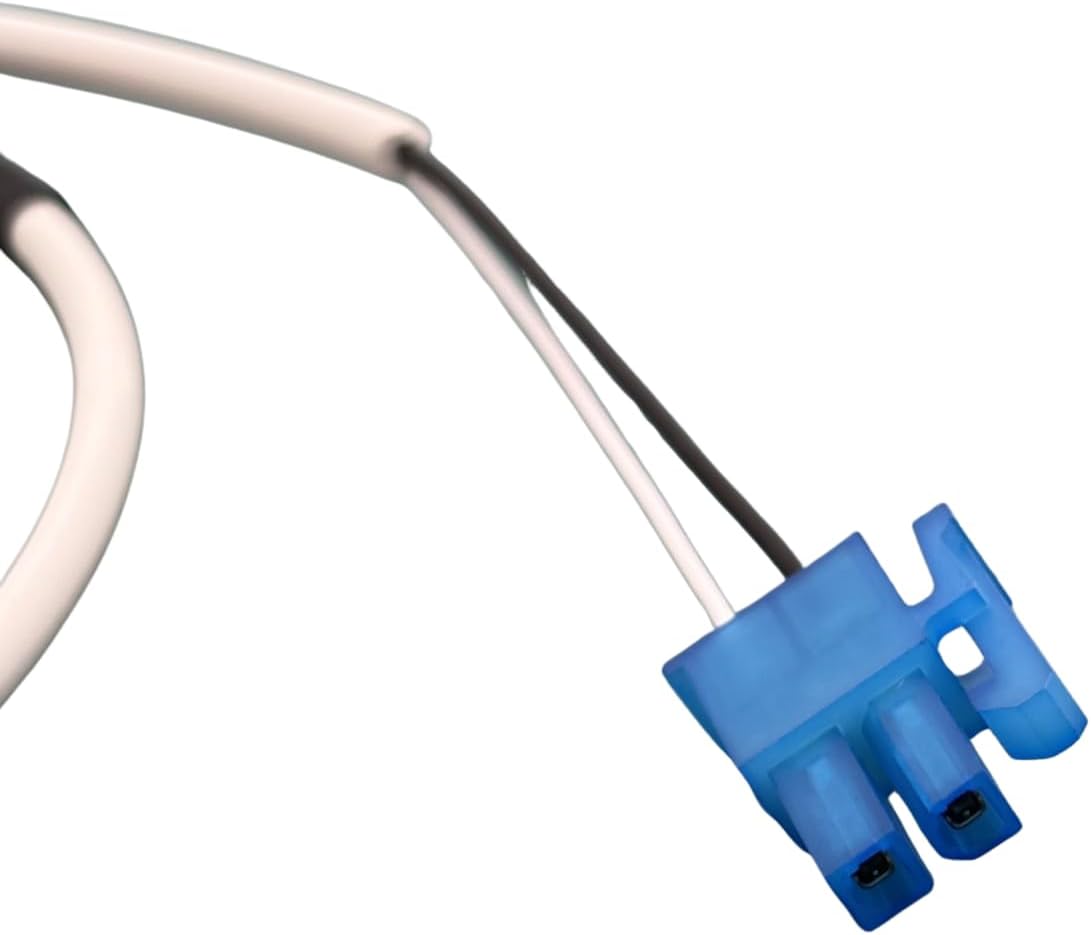

Quality and consistency are especially important for a freeze-control sensor because the air conditioner depends on changing thermistor resistance to determine temperature conditions. The Wholesale Sensors replacement is built with a temperature-sensitive sensing element, durable wiring, and an electrical connector designed for compatible applications. Each sensor is rigorously tested for electrical response, performance, fit, and reliability before shipment.

A correctly functioning thermistor can help maintain dependable cooling during RV travel, camping, and extended stays by giving the air conditioner the temperature information needed for proper operation. It can also help protect cooling performance from problems associated with excessive evaporator freeze-up when the rest of the air conditioning system is operating correctly.

Wholesale Sensors specializes in replacement sensing components for appliance, HVAC, automotive, pool and spa, commercial equipment, and RV applications. Our goal is to provide a dependable aftermarket replacement while giving customers access to responsive USA-based product support when compatibility questions arise.

Every Wholesale Sensors Dometic 3312303005 Replacement Thermistor is backed by a strong 24 Month Warranty. Whether you are an RV owner performing maintenance, a mobile RV technician, a dealership service department, or a professional repair facility, this replacement sensor provides a practical solution when the original Dometic freeze-control thermistor has been confirmed faulty.

Before ordering, verify that your original component or parts documentation specifies 3312303005, 3312303.005, or superseded 3309711.004, and compare your complete Dometic air conditioner model with the applicable parts information. With confirmed compatibility, the Wholesale Sensors replacement provides dependable evaporator temperature monitoring, straightforward replacement, rigorous quality testing, a 24 month warranty, and USA-based support for your compatible Dometic or Duo-Therm RV air conditioning
