Pentair 472610Z 42002-0029Z Heater Switch Membrane Pad, Max-E-Therm, Replacement with 12 Month Warranty & USA Business

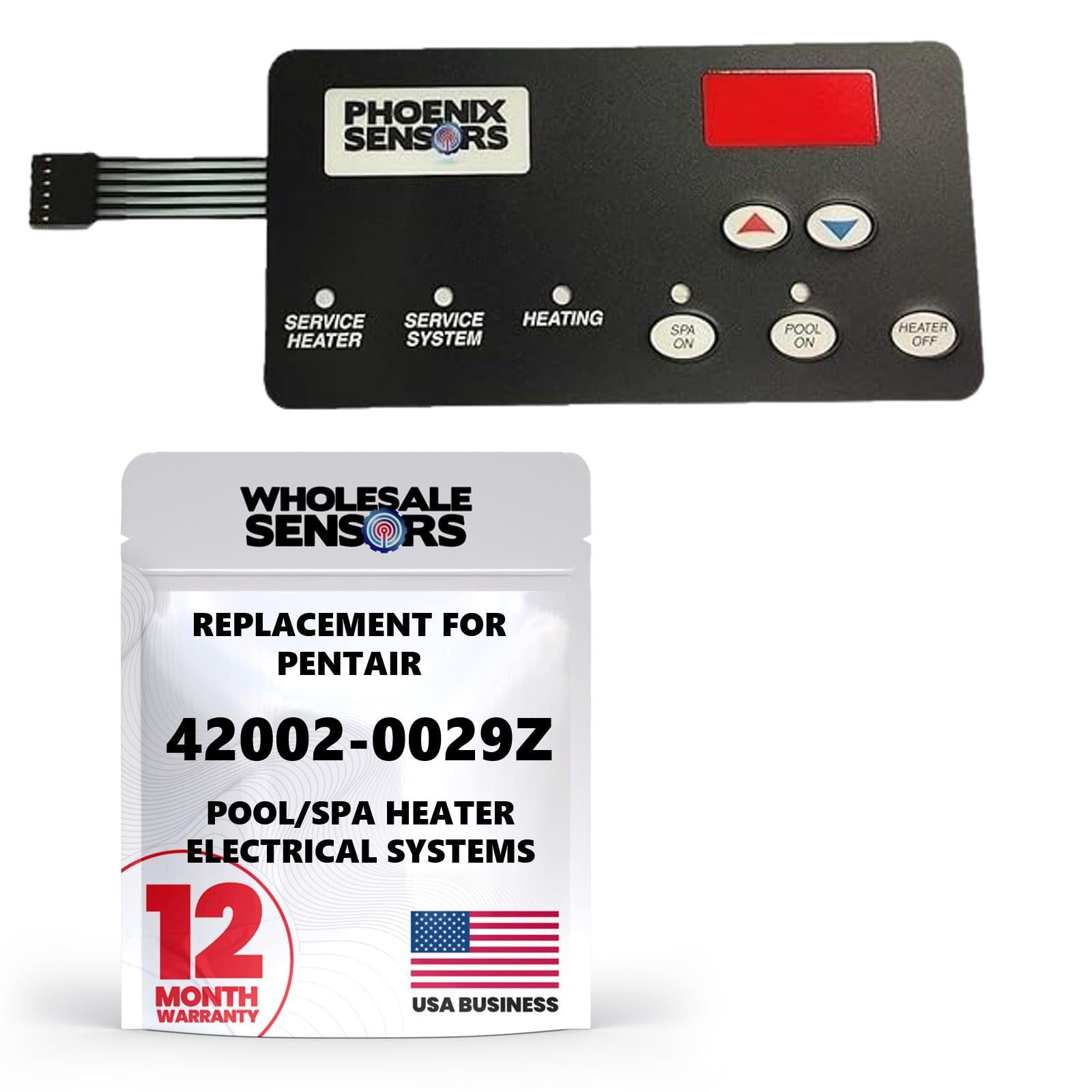

Restore responsive operation of your pool or spa heater control panel with the Wholesale Sensors Replacement for Pentair 472610Z / 42002-0029Z Heater Switch Membrane Pad. Engineered as a perfect OEM-style replacement, this 5-button membrane keypad is designed to meet or exceed original fit and functional specifications while providing dependable control input for compatible Pentair MasterTemp and Sta-Rite Max-E-Therm pool and spa heaters.

The 472610Z is the legacy five-button membrane keypad used on compatible Pentair heater electrical systems. Pentair’s current replacement-parts documentation identifies 472610Z as the Five Button Membrane Keypad for heaters manufactured before May 5, 2021. Pentair

Replacement for Pentair 472610Z and 42002-0029Z

This Wholesale Sensors component is designed as an aftermarket replacement for:

Pentair 472610Z
Pentair 42002-0029Z

42002-0029Z is documented as an industry cross-reference for the MasterTemp and Max-E-Therm style membrane pad. Swimables

Additional catalog references associated with 472610Z include:

47-102-1325
PEN472610Z

This Wholesale Sensors product is an aftermarket replacement and is not represented as a genuine Pentair or Sta-Rite component.

Compatible Pentair MasterTemp Heaters

The 472610Z membrane pad is documented for the Pentair MasterTemp heater electrical system, including legacy natural gas and propane configurations. Pentair documentation also specifically lists the membrane pad for the MasterTemp 125. Pentair Pool

Compatible legacy heater families include select:

MasterTemp 125
MasterTemp 175
MasterTemp 200
MasterTemp 250
MasterTemp 300
MasterTemp 333
MasterTemp 400

Always verify the original keypad and heater production date before ordering.

Compatible Sta-Rite Max-E-Therm Heaters

Pentair’s Max-E-Therm replacement-parts documentation identifies 472610Z as the legacy membrane pad for NA and LP Series heaters. Pentair Flow and Filtration Solutions

Compatible legacy Max-E-Therm families include:

Sta-Rite Max-E-Therm SR200
Sta-Rite Max-E-Therm SR333
Sta-Rite Max-E-Therm SR400

Applications include compatible natural gas, liquid propane, and certain HD configurations using the original five-button control interface.

Important Pre-May 2021 Compatibility

Production date is critical when selecting this replacement.

Pentair specifies 472610Z as the five-button keypad for heaters manufactured before May 5, 2021. Heaters manufactured after the 2021 control-system update use a newer six-button membrane keypad. Pentair

Pentair’s connected-heater parts matrix further confirms that 472610Z remains the replacement five-button membrane keypad for older non-connected heaters. Pentair

The newer six-button membrane keypad is 461106.

Therefore, do not order based only on the MasterTemp or Max-E-Therm name. Confirm that the heater uses the legacy five-button interface and check the production date and original part number.

Restores the Heater Control Interface

The membrane pad forms the user-facing control interface on the compatible heater.

Its buttons allow the operator to interact with the heater control system, including adjusting temperature and operating pool or spa functions. When a button is pressed, the membrane switch communicates the input to the electronic control system.

Because the keypad is exposed to outdoor conditions and repeated use, it can eventually deteriorate.

Common symptoms of a failing membrane pad include:

One or more buttons no longer responding

Buttons requiring excessive pressure

Intermittent button response

Temperature up or down button not working

Pool or spa selection button not responding

Worn or faded control markings

Cracked membrane surface

Peeling or delaminating keypad

Visible weather-related deterioration

A replacement membrane pad can restore normal button operation when the original keypad itself has been confirmed faulty.

Avoid Unnecessary Control Board Replacement

An unresponsive heater button does not automatically mean the electronic control board has failed.

For example, technical guidance for 472610Z indicates that when one control button stops working while other buttons continue functioning, the membrane pad is a likely cause, although the membrane-to-board connection should also be inspected. Inyo Pools

This distinction can help prevent unnecessary replacement of more expensive heater electronics.

However, the membrane pad will not repair a defective control board, failed temperature sensor, ignition problem, wiring fault, power problem, safety-switch failure, or another unrelated heater malfunction.

Proper troubleshooting is recommended before replacing parts.

Durable Membrane Construction

Pool and spa heaters operate outdoors where their control panels can experience sunlight, changing temperatures, moisture, and repeated button presses.

The Wholesale Sensors replacement uses a durable membrane-style control surface designed for dependable heater operation. The sealed keypad construction provides the tactile control interface needed to operate the compatible heater while helping protect the switch area during normal outdoor service.

Each replacement is rigorously tested for button response, electrical continuity, ribbon connection integrity, physical fit, adhesion, surface quality, and consistent operation.

Straightforward 4-Pin Connection

The legacy 472610Z membrane pad uses a 4-pin ribbon connection, and replacement is commonly described as a straightforward plug-in process once the heater control area has been safely accessed. Inyo Pools

Before servicing the heater, disconnect electrical power and follow the manufacturer’s safety instructions. Gas pool heater servicing should be performed by a qualified technician when appropriate.

Note the original membrane position and ribbon-cable routing before removal. Carefully disconnect the old membrane, prepare the mounting surface as required, align the replacement keypad correctly, and connect the ribbon securely.

After reassembly, restore power and verify operation of every keypad button.

Heater Error Codes and Troubleshooting

This component is a pool and spa heater membrane keypad, so automotive OBD-II codes do not apply.

Pentair MasterTemp and Sta-Rite Max-E-Therm heaters can display heater-specific diagnostic conditions, but replacing the membrane pad should not be advertised as a universal solution for a particular error code.

The 472610Z replacement is intended primarily to correct physical or electrical keypad problems, such as worn, damaged, intermittent, or unresponsive buttons.

If the display is completely blank, the heater will not ignite, or a specific safety or sensor fault remains present, additional troubleshooting of the power supply, control board, wiring, ignition system, sensors, and heater safety circuits may be required.

12-Month Warranty and USA-Based Support

Wholesale Sensors specializes in dependable replacement sensors, membrane switches, temperature probes, thermistors, pressure sensors, connectors, switches, and related components for pool and spa equipment, appliances, HVAC systems, commercial equipment, automotive applications, and industrial systems.

The Wholesale Sensors Replacement for Pentair 472610Z / 42002-0029Z Heater Switch Membrane Pad provides a reliable repair option for compatible legacy Pentair MasterTemp and Sta-Rite Max-E-Therm pool and spa heaters using the five-button control interface.

Every replacement includes a strong 12-month warranty and responsive USA-based product support, giving pool owners, professional pool technicians, maintenance departments, property managers, and pool and spa service companies added confidence.
