Raypak 009184F Heater Switch Membrane Decal, Replacement with 12 Month Warranty & USA Business

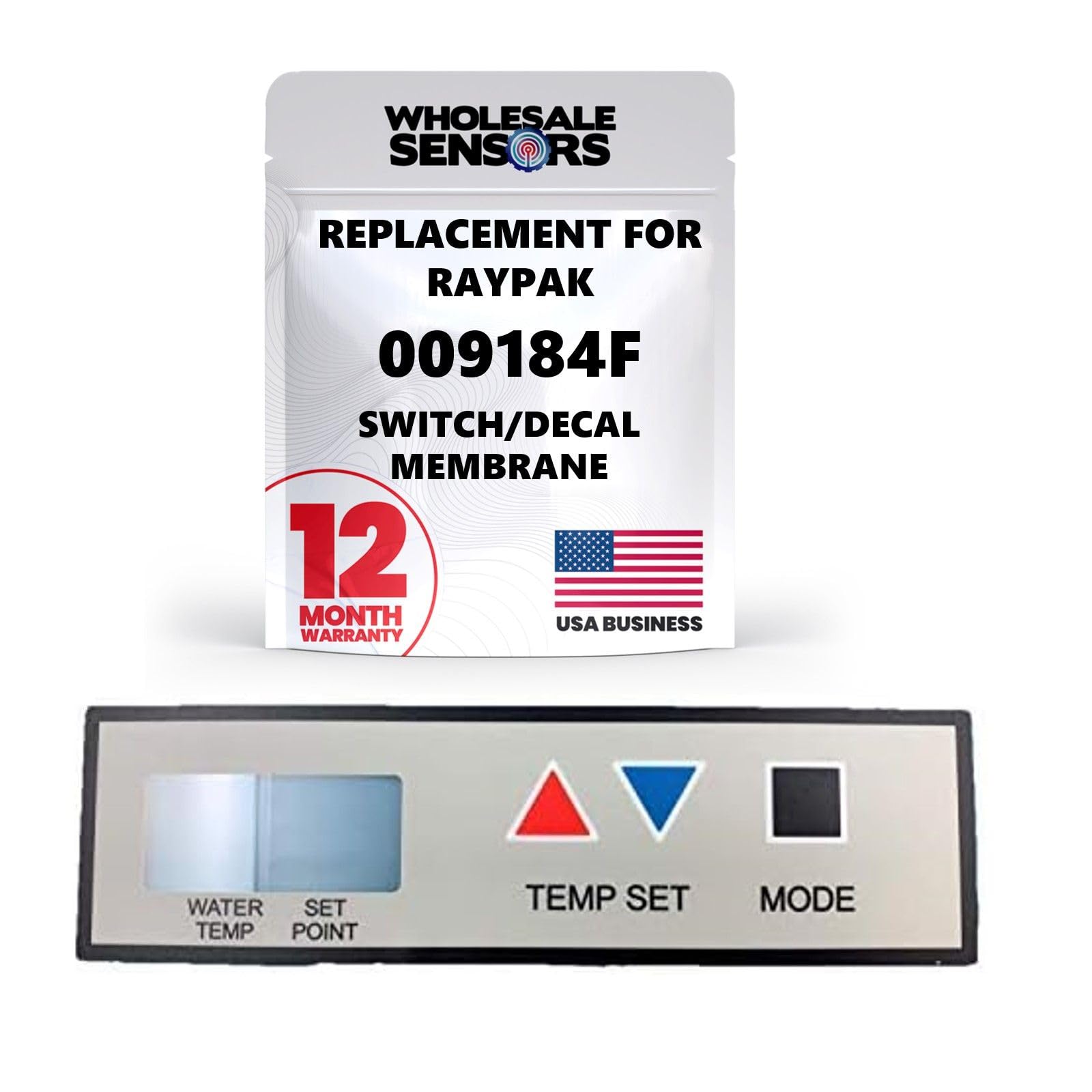

Restore reliable operation and a clean appearance to your compatible pool or spa heater control panel with the Wholesale Sensors Replacement for Raypak 009184F Switch/Decal Membrane. Engineered as a perfect OEM-style replacement, this membrane keypad is designed to meet or exceed original fit and functional specifications while restoring responsive user controls on compatible Raypak RP2100 Digital Gas Heaters.

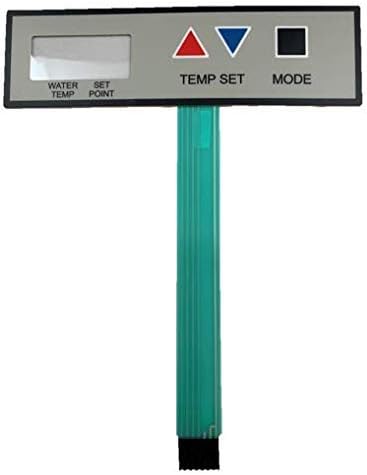

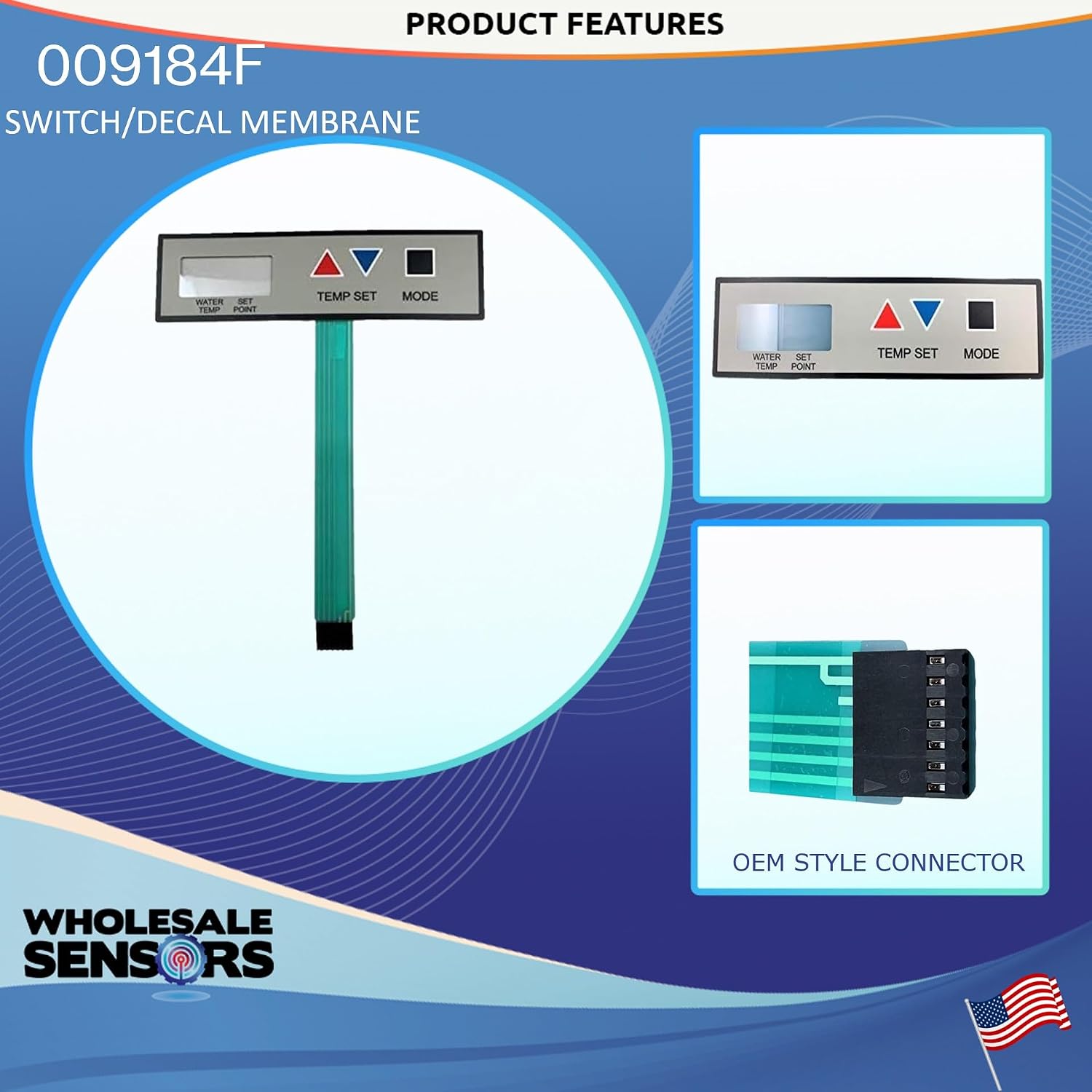

The 009184F is the switch/decal membrane located on the heater’s front control interface. It provides the surface and electrical switch contacts used when adjusting heater settings from the control panel. Over years of outdoor service, repeated button presses, sunlight, temperature changes, and moisture can cause the original membrane to become worn, cracked, faded, peeling, or difficult to operate.

Replacing the membrane provides an economical way to restore the control interface without automatically replacing a functioning electronic control board.

Replacement for Raypak 009184F

This Wholesale Sensors component is designed as an aftermarket replacement for:

Raypak 009184F

Documented alternate and cross-reference numbers include:

6230-70
RAY-151-9184
RAY009184F

INYOPools identifies 009184F as the manufacturer code for the decal membrane switch and lists 6230-70, RAY-151-9184, and RAY009184F as alternate numbers. Inyo Pools

The Wholesale Sensors product is an aftermarket replacement and is not represented as a genuine Raypak component.

Compatible Raypak Pool and Spa Heaters

Raypak’s own replacement-parts documentation identifies 009184F as the switch/decal membrane for 185A, 265A, 335A, and 405A heaters. Amazon Web Services, Inc.

Documented applications include:

Raypak R185A
Raypak R265A
Raypak R335A
Raypak R405A

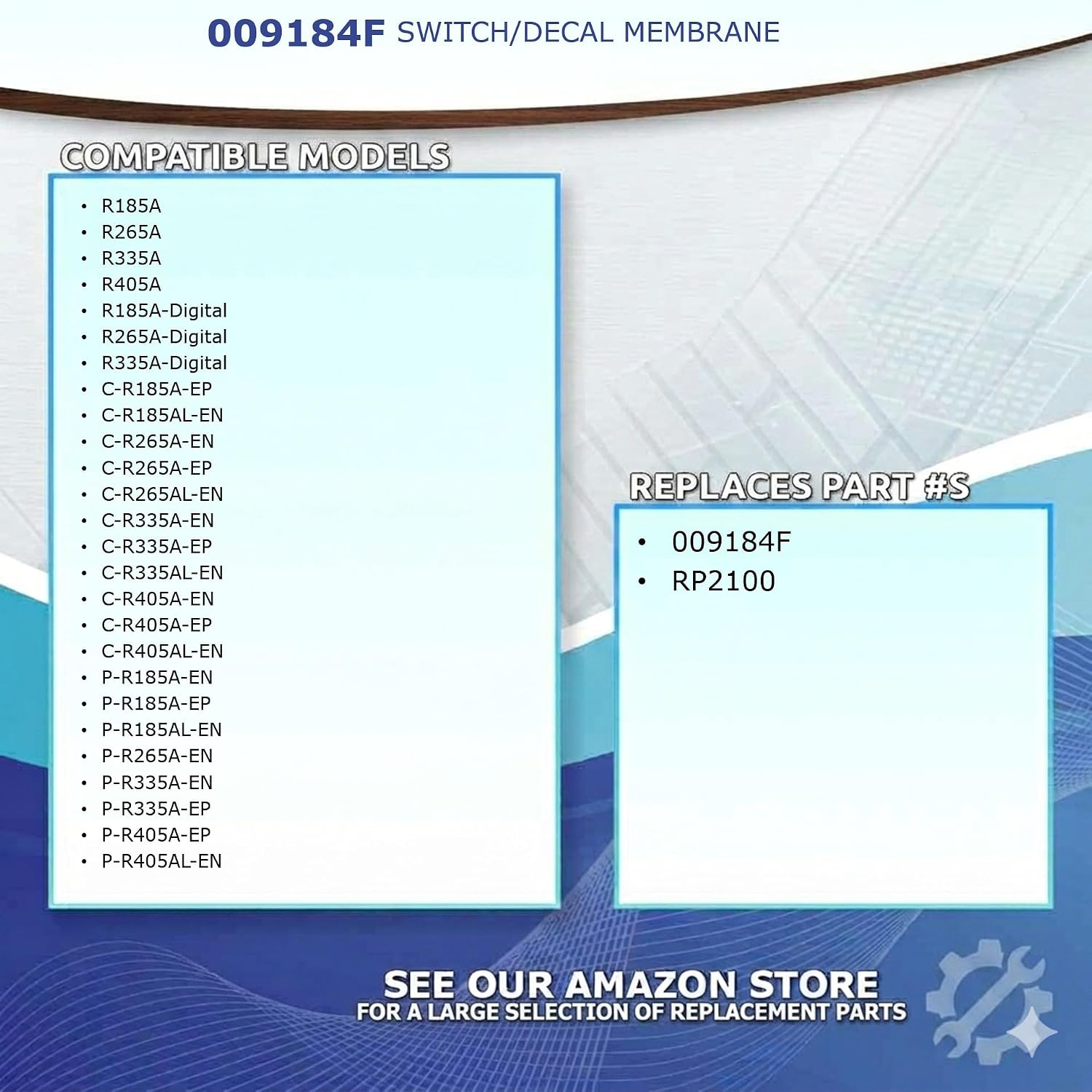

More specifically, documented configurations include:

C-R185A-EN
C-R185A-EP
C-R185AL-EN
C-R265A-EN
C-R265A-EP
C-R265AL-EN
C-R335A-EN
C-R335A-EP
C-R335AL-EN
C-R405A-EN
C-R405A-EP
C-R405AL-EN
P-R185A-EN
P-R185A-EP
P-R185AL-EN
P-R265A-EN
P-R265A-EP
P-R265AL-EN
P-R335A-EN
P-R335A-EP
P-R335AL-EN
P-R405A-EN
P-R405A-EP
P-R405AL-EN

These specific configurations are documented for the 009184F membrane by a Raypak parts supplier. Parts4Heating

Because Raypak has produced multiple heater generations with similar appearances, always verify the complete heater model and original 009184F part number before ordering.

RP2100 Digital Gas Heater Control Interface

The 009184F is specifically documented for the Raypak RP2100 Digital Gas Heater family. It serves as the membrane keypad and decal that the user presses when operating compatible heater controls. Active Pool Supply

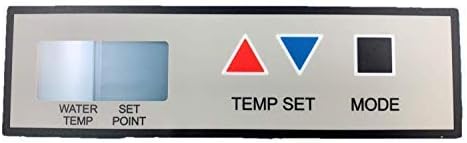

The membrane provides two important functions. First, its printed graphics clearly identify the heater controls. Second, the membrane’s switch contacts transmit the user’s button presses to the heater’s electronic control system.

This makes it different from a simple decorative decal.

When the membrane deteriorates, the electronic control board underneath may still function correctly, but the user may have difficulty entering commands through the control panel.

Helps Restore Worn or Unresponsive Controls

Common signs that a switch/decal membrane may need replacement include:

Buttons require excessive pressure
Buttons require repeated presses
One or more controls stop responding
Control inputs respond inconsistently
Membrane surface is cracked
Decal is peeling or lifting
Printed control markings are faded or damaged
Control panel surface is worn from repeated use

The 009184F membrane is a known wear component because it is exposed to outdoor conditions and repeated finger pressure. A replacement can restore the physical control interface when the membrane itself is responsible for the problem. Active Pool Supply

Important: Membrane Switch, Not the PC Board

The 009184F is the switch/decal membrane only. It should not be confused with the heater’s electronic PC board or complete control-panel assembly.

This distinction is important when troubleshooting.

If the membrane is cracked, peeling, worn, or requires unusually hard button presses, the membrane may be the appropriate component to replace.

However, if the heater has a blank or malfunctioning digital display, no power at the control system, control-board failure, damaged electronics, or another internal electrical problem, replacing the membrane alone may not solve the issue.

For example, technical guidance for an RP2100 with an inconsistent or blank LCD display points to the PC board rather than the 009184F membrane. Inyo Pools

Proper diagnosis can prevent unnecessary replacement of functioning components.

Built for Outdoor Pool Equipment

Pool heater control panels operate in demanding environments where components may encounter sunlight, changing temperatures, humidity, moisture, and frequent use.

The Wholesale Sensors replacement uses durable membrane materials, clear control graphics, and responsive switch contacts designed for dependable operation in compatible pool and spa heater applications.

Each replacement is rigorously tested for physical fit, button response, electrical functionality, control alignment, adhesion, surface quality, and consistent performance.

A properly functioning membrane provides responsive control input while restoring a clean and readable heater interface.

Straightforward Replacement Installation

Before servicing a gas pool or spa heater, disconnect electrical power and follow the heater manufacturer’s safety procedures.

Access the existing control panel and carefully remove the bezel or cover required to reach the switch/decal membrane. Industry installation guidance for 009184F notes that the touchpad cover or bezel can be removed to facilitate replacement. Inyo Pools

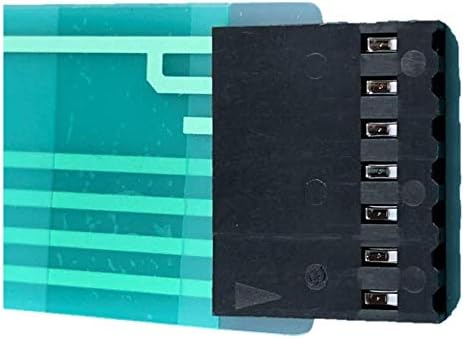

Before removing the existing membrane, note its position, electrical connection, cable routing, and alignment.

Remove the worn membrane carefully and prepare the mounting surface as required. Position the replacement so the printed controls and switch locations align correctly with the heater interface.

Reconnect the membrane securely, reinstall the bezel or control-panel components, restore power, and test each control function.

If the control panel remains unresponsive after membrane replacement, further diagnosis of the wiring, connectors, PC board, power supply, or other heater components may be required.

Pool and Spa Heater Application

The Raypak 009184F is specifically a pool and spa heater control component. It is not an automotive part, so automotive OBD-II diagnostic codes do not apply.

Raypak heaters can display their own heater-specific diagnostic information depending on the control system and fault involved. A heater error should be diagnosed according to the appropriate Raypak service information.

Replacing 009184F is appropriate when the membrane keypad itself is confirmed to be worn, physically damaged, or electrically unresponsive. It should not be presented as a universal repair for every heater fault or diagnostic display.

12-Month Warranty and USA-Based Support

Wholesale Sensors specializes in dependable replacement sensors, membrane switches, control components, temperature probes, thermistors, pressure sensors, and related parts for pool and spa equipment, appliances, HVAC systems, commercial equipment, automotive applications, and industrial systems.

The Wholesale Sensors Replacement for Raypak 009184F Switch/Decal Membrane provides a practical repair option for compatible Raypak RP2100 R185A, R265A, R335A, and R405A Digital Gas Heaters when the original membrane becomes worn or damaged. Amazon Web Services, Inc.

Every replacement includes a strong 12-month warranty and responsive USA-based product support, providing added confidence for pool owners, pool and spa technicians, maintenance departments, property managers, service companies, and professional equipment repair specialists.
