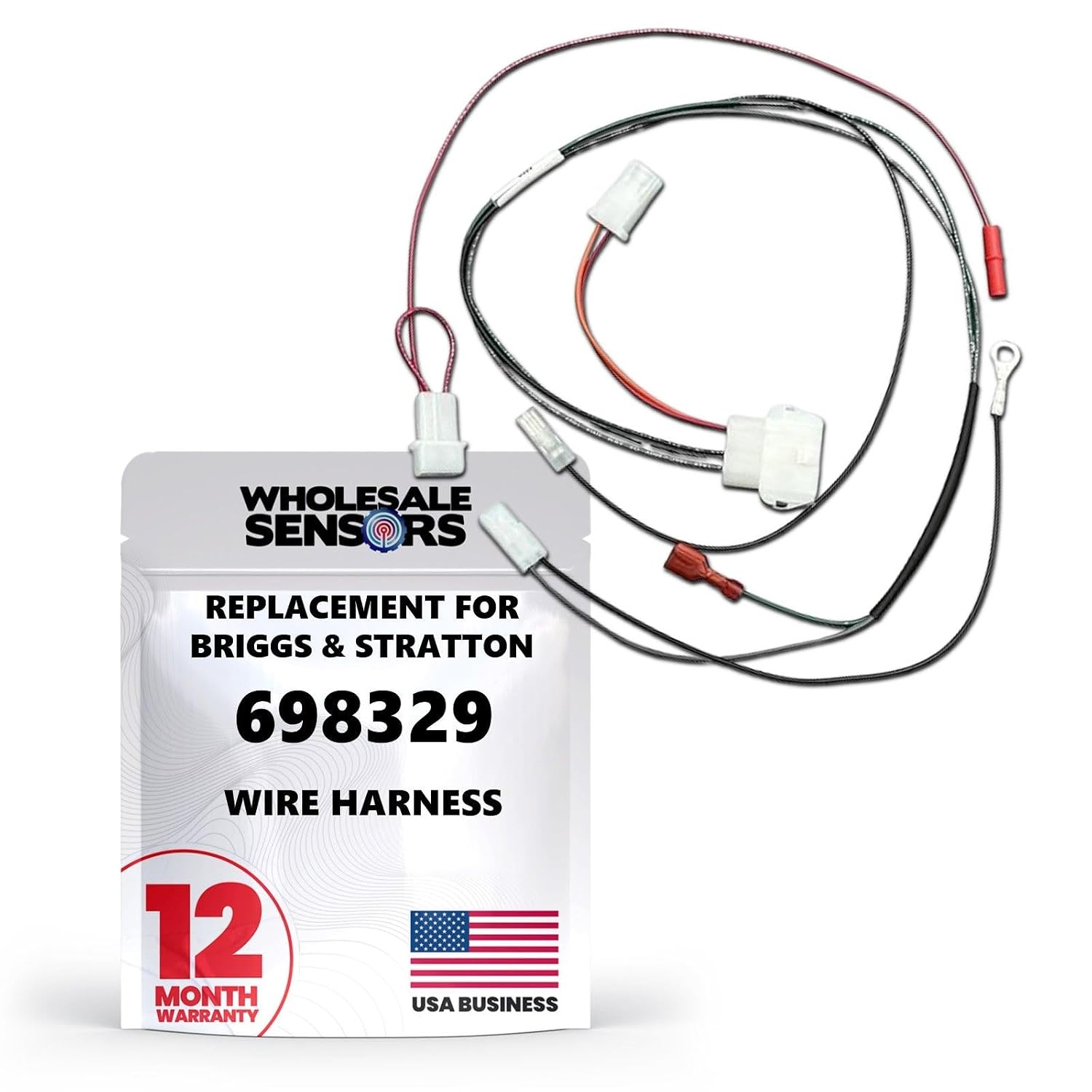

Replacement for Briggs & Stratton 698329 Wire Harness 12 Month Warranty

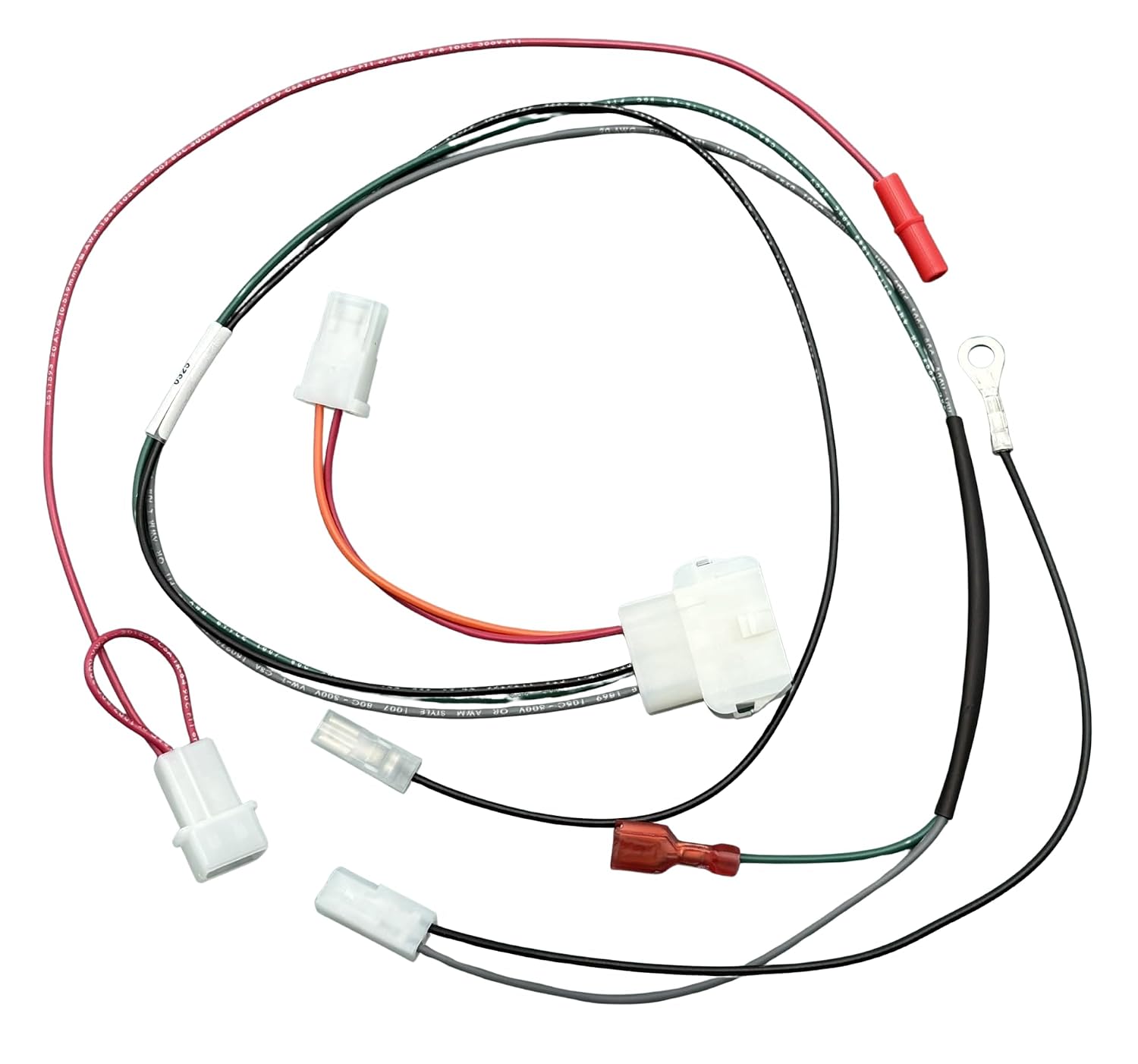

Restore dependable electrical connections in your lawn and garden equipment with the Wholesale Sensors Replacement for Briggs & Stratton 698329 Wire Harness, backed by a 12-Month Warranty and responsive USA-based product support. Designed for compatible Briggs & Stratton engines, this replacement wiring harness provides the electrical connections needed between key engine components and helps restore reliable operation when the original harness has become damaged, burned, brittle, corroded, or electrically unreliable.

The Briggs & Stratton 698329 is officially identified by Briggs & Stratton as a wiring harness. Its purpose is to provide reliable electrical connections between multiple engine components, supporting the overall electrical stability and operation of compatible small engines. Briggs & Stratton also describes the original harness as being designed for straightforward replacement and constructed to withstand the stresses associated with engine operation.

This Wholesale Sensors component is engineered as a perfect OEM-style replacement for Briggs & Stratton 698329, designed to meet or exceed OEM performance specifications for compatible applications. The primary reference number is 698329, and the part may also appear in equipment catalogs as BS-698329. Troy-Bilt and Cub Cadet, for example, list the component under item number BS-698329 for equipment powered by compatible Briggs & Stratton engines.

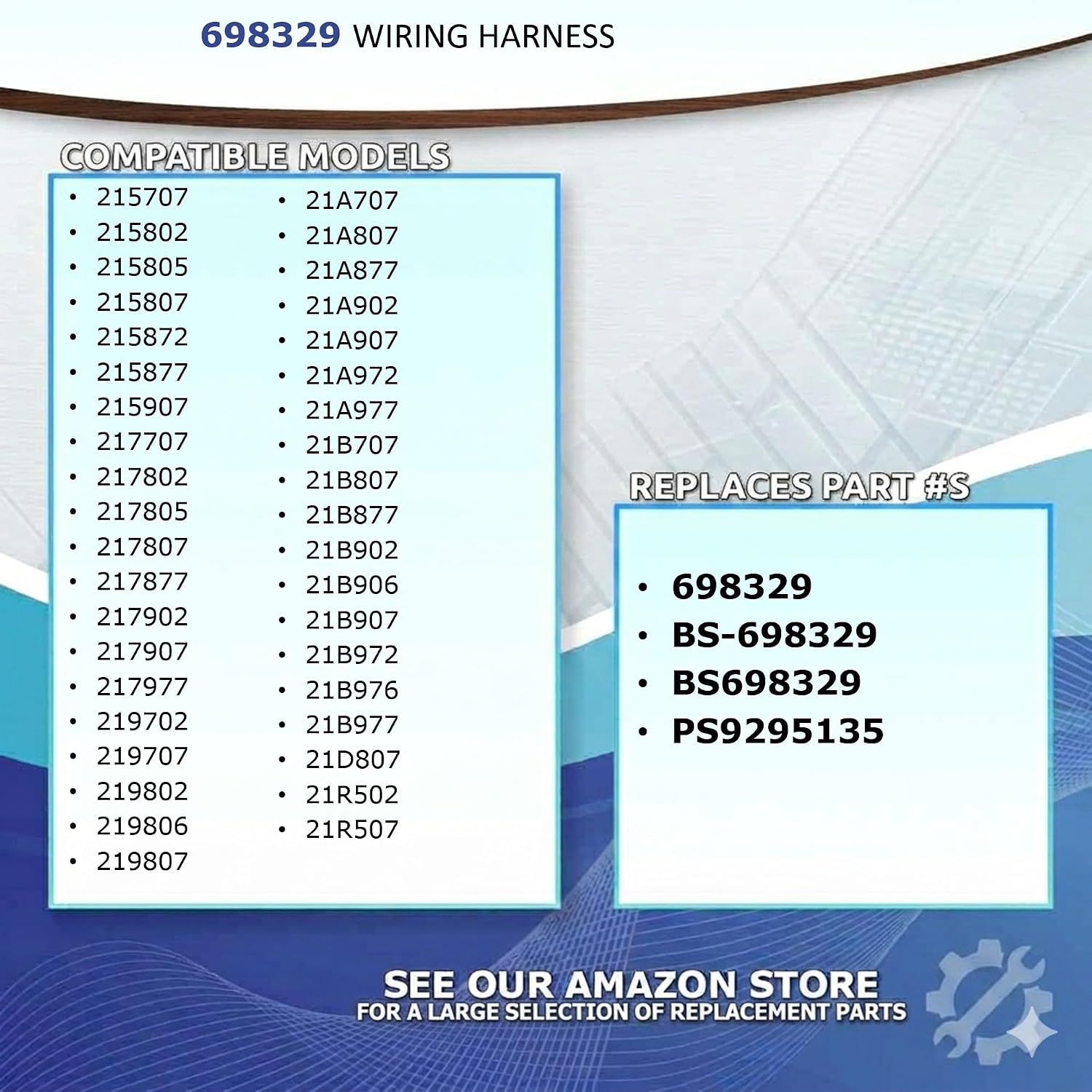

The 698329 harness is used across a particularly broad range of Briggs & Stratton engine families. Briggs & Stratton’s official compatibility information lists numerous applications, including select 215707, 215802, 215805, 215807, 215872, 215877, 215907, 217707, 217802, 217805, 217807, 217877, 217902, 217907, 217972, 217976, 217977, 219702, 219707, 219802, 219806, 219807, 219872, 219902, 219906, 219907, 219972, and 219977 engine families.

Additional documented engine families include select 21A707, 21A807, 21A877, 21A902, 21A907, 21A972, 21A977, 21B707, 21B807, 21B877, 21B902, 21B906, 21B907, 21B972, 21B976, 21B977, 21D807, 21R502, 21R507, 21R602, 21R607, 21R677, 21R702, 21R707, 21R772, 21R777, 21R802, 21R806, 21R807, 21R872, 21R876, and 21R877 engines.

Briggs & Stratton also documents 698329 applications within select 280000 and 310000-series engines. The company’s engine alternator repower documentation identifies harness 698329 for 280000 and 310000 OHV and L-head applications and shows connections associated with the fuel solenoid, stop switch, alternator system, and related electrical circuitry.

Specific documented models using the 698329 harness include 21B807-0289-E1, 21A807-0236-E1, 21B807-0290-E1, 31C707-0230-E1, 28R707-1120-E1, 283H07-0399-E1, 31C707-0240-B1, 31H777-0605-E2, 31N707-0430-B1, and 280H07-0385-E1.

The harness is not limited to equipment sold directly under the Briggs & Stratton name. Briggs & Stratton engines using 698329 were installed in lawn and garden equipment from several manufacturers. Documented equipment applications include select Cub Cadet lawn tractors and mowers, MTD lawn tractors, and Simplicity equipment. Examples include Cub Cadet 13AB11CG710, 13AB11CG712, 13AL11CG710, 13AL11CG712, 13AX11CG710, and 13AX11CG712, along with MTD 13AC26JD093, 13AL77XT099, and 13AN77XS093.

Because Briggs & Stratton engine applications can vary by model, type, and code, customers should not order solely by mower, tractor, or equipment brand. Two machines with similar model names may use different engines or electrical systems. Always locate the identification information on the engine and confirm that the original parts diagram specifies 698329 before purchasing.

The wiring harness serves as an important pathway for the engine’s electrical system. Briggs & Stratton’s technical documentation shows the 698329 harness associated with electrical connections involving the fuel solenoid, stop switch, alternator system, and ground circuitry in applicable engine configurations. A reliable harness allows electrical signals and power to reach these components through the intended circuits.

Over time, an engine wiring harness can be affected by heat, vibration, moisture, corrosion, abrasion, accidental damage, or previous repairs. Connector terminals can become loose or burned, insulation can deteriorate, and individual wires can become damaged or develop intermittent connections.

When the harness is faulty, symptoms depend on which circuit has been affected. Potential problems can include intermittent engine operation, failure to start, loss of ignition or spark, fuel solenoid operation problems, charging system issues, or unreliable electrical connections. Repair experiences documented for the 698329 include replacement of a harness with burned connectors and replacement after damaged wiring contributed to a no-spark condition.

These symptoms do not automatically mean that the wire harness is defective. A no-start condition can also result from a discharged battery, faulty ignition coil, defective safety switch, fuel delivery problem, starter system fault, failed fuel solenoid, poor ground, or another electrical issue. Likewise, a charging problem may originate with the alternator or charging components rather than the harness itself.

Proper diagnosis is recommended before replacement. Inspect the original wiring for burned or melted connectors, cracked insulation, corrosion, broken conductors, loose terminals, damaged grounds, or evidence of previous splicing. Where appropriate, electrical continuity can be checked with a multimeter according to the service information for the exact engine.

Unlike modern passenger vehicles, these small-engine applications do not use universal automotive OBD-II diagnostic trouble codes. Codes such as P0117, P0300, or P0562 should not be associated with this harness. Troubleshooting should instead follow the Briggs & Stratton service procedure and wiring diagram for the specific engine model, type, and electrical configuration.

Installation is designed to be straightforward on compatible applications, but access requirements vary considerably by engine and equipment design. Before beginning service, shut off the engine, allow hot components to cool, remove the ignition key where applicable, and disconnect the battery according to the equipment manufacturer’s instructions.

Before removing the original harness, photograph or label each electrical connection and note the wire routing. Disconnect the old harness carefully without pulling directly on wires. Route the replacement in the same manner as the original, securing it away from the exhaust system, flywheel, belts, pulleys, sharp edges, and other areas that could cause heat or abrasion damage.

After installation, verify that every terminal and connector is fully seated. Reconnect the battery, inspect the harness routing, and test the engine and associated electrical functions. If the original problem remains, continue troubleshooting rather than replacing unrelated components.

Each Wholesale Sensors replacement harness is rigorously tested for electrical continuity, connection integrity, fit, and reliable performance. Durable insulated wiring and application-specific connections help provide dependable service through the vibration and operating conditions encountered in lawn tractors, riding mowers, snow equipment, and other compatible outdoor power equipment.

Wholesale Sensors specializes in dependable aftermarket replacement components supported by careful quality control and responsive customer assistance. Every Wholesale Sensors Replacement for Briggs & Stratton 698329 Wire Harness is backed by a strong 12-Month Warranty and USA-based product support.

Before ordering, verify the complete Briggs & Stratton engine model, type, and code, and confirm that the original application specifies 698329 or BS-698329. With confirmed compatibility, this replacement wiring harness provides a dependable solution for restoring damaged engine electrical connections and getting compatible lawn and garden equipment back into reliable service.
