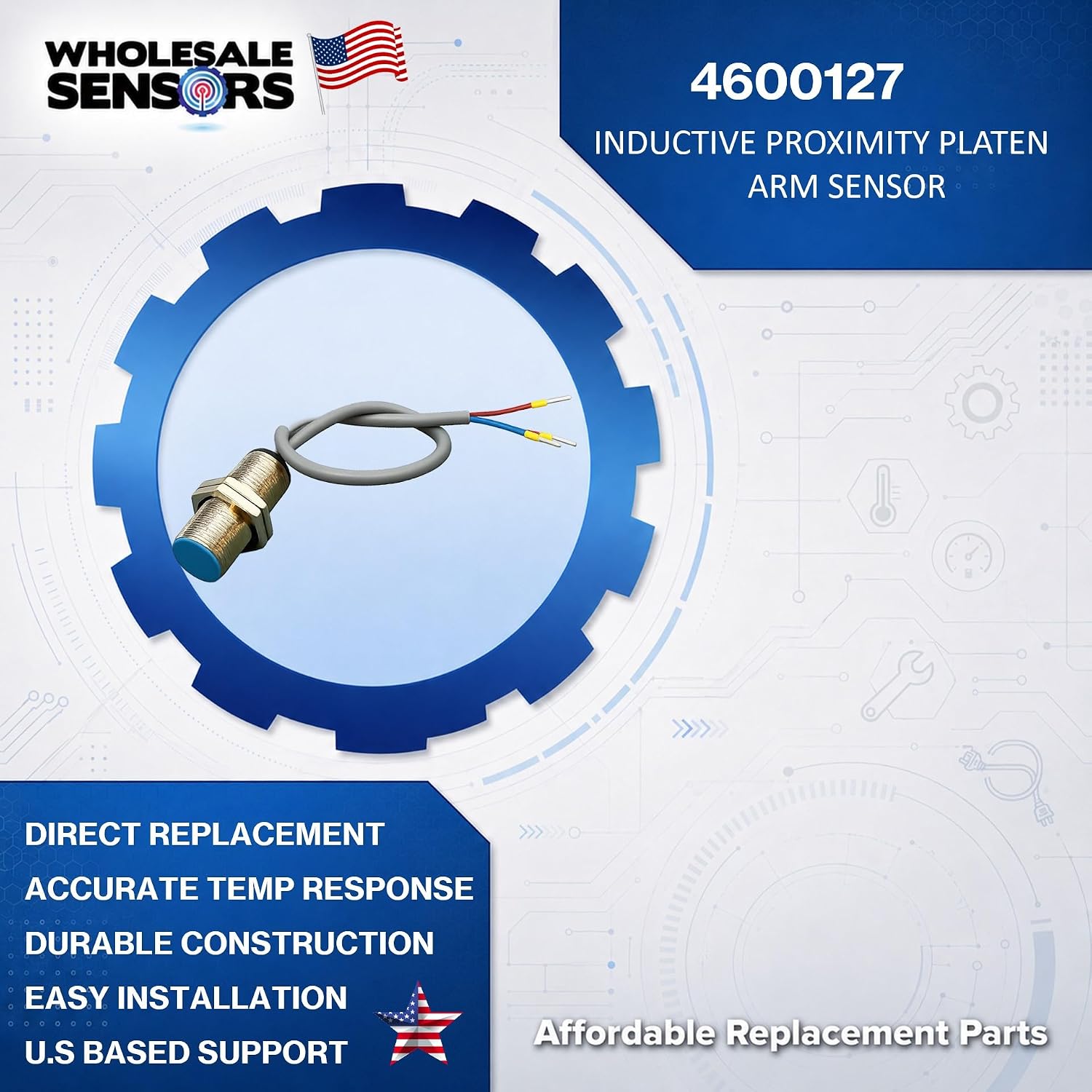

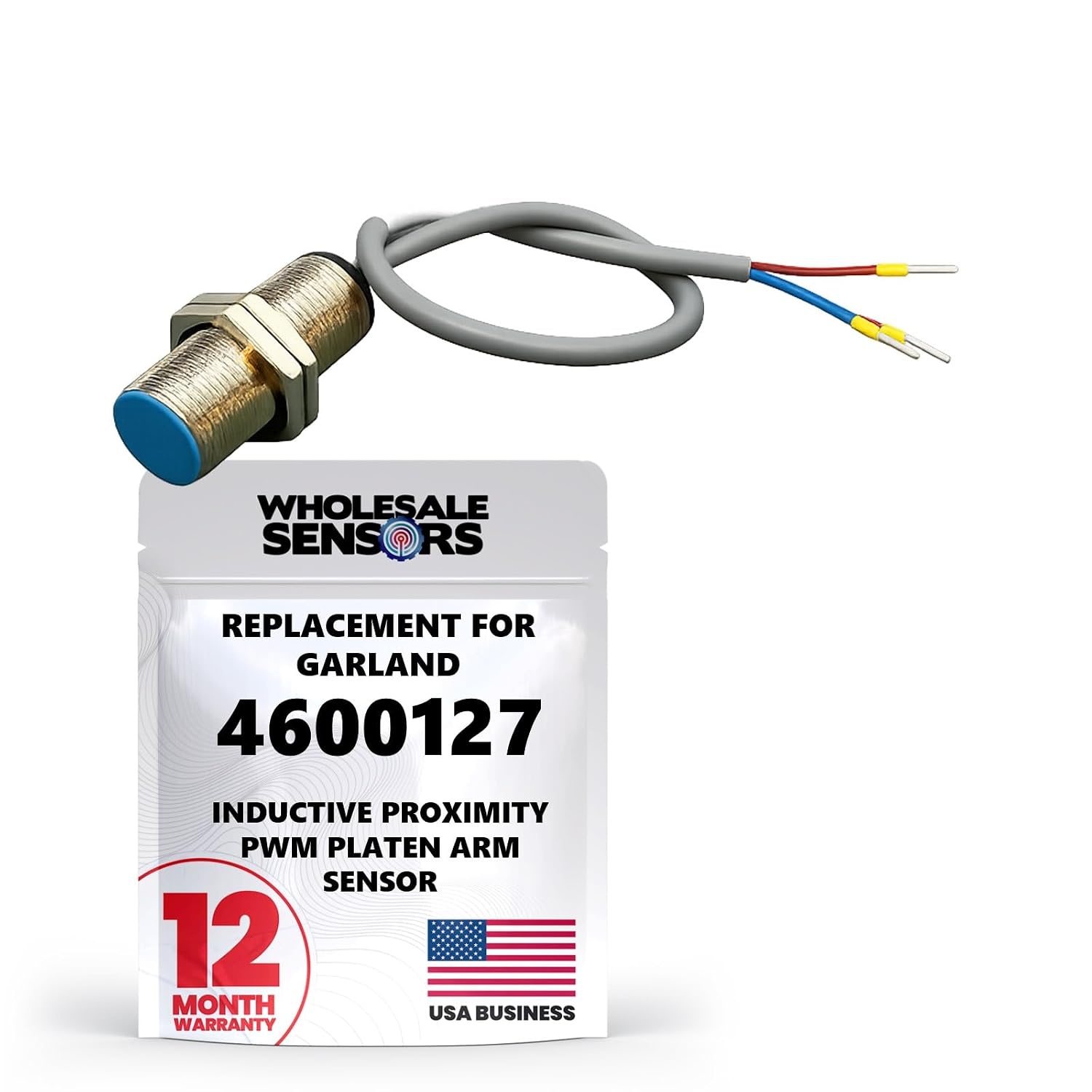

Replacement for Garland 4600127 Inductive Proximity PWM Platen Arm Sensor for Commercial Clamshell Grills, 12-Month Warranty & USA Support

Restore dependable platen arm position monitoring with the Wholesale Sensors Replacement for Garland 4600127 Inductive Proximity PWM Platen Arm Sensor.

Designed as an OEM-style aftermarket replacement for compatible Garland commercial clamshell grills, this sensor detects the position of the grill’s platen arm and provides electrical feedback to the equipment control system.

Accurate platen position monitoring helps support automated grill operation, consistent cooking cycles, and proper upper-platen positioning.

Whether maintaining restaurant equipment or replacing a defective proximity sensor, the Wholesale Sensors Garland 4600127 replacement provides a repair option for commercial grills requiring this specific OEM part number.

OEM Replacement and Part Number References

• Garland 4600127
• Garland 4600127 Inductive Proximity Sensor
• Garland 4600127 PWM Platen Arm Sensor

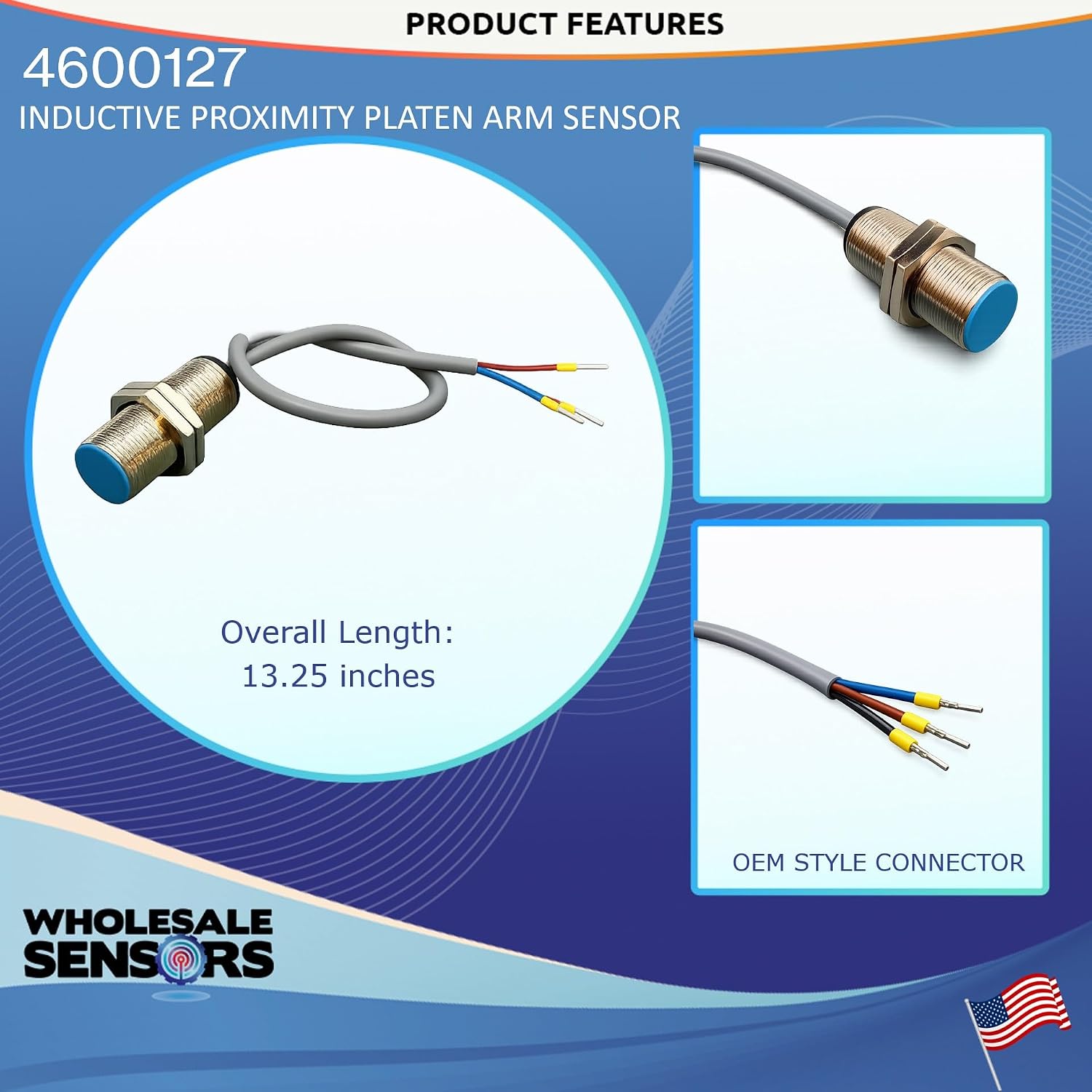

Product Specifications:

• Product Type: Inductive Proximity PWM Platen Arm Sensor
• OEM Replacement Part Number: 4600127
• Brand Compatibility: Garland
• Application: Commercial Clamshell Grill Platen Arm Position Monitoring
• Sensor Technology: Inductive Proximity Detection
• Signal Type: PWM
• Function: Platen Arm Position Detection and Control Feedback
• Warranty: 12 Months
• Customer Support: USA-Based

Additional OEM supersession or interchangeable part numbers should be verified through the manufacturer’s official parts catalog.

Compatible Garland Commercial Clamshell Grills

The Garland 4600127 replacement inductive proximity sensor is intended for select Garland commercial clamshell grills requiring this original equipment part number.

Potential applications include compatible:

• Garland commercial clamshell grills
• Garland automated upper-platen grill systems
• Garland restaurant cooking equipment
• Garland quick-service restaurant grills
• Garland commercial grills equipped with proximity sensor 4600127

Compatibility depends on the grill’s complete model number, serial number, controller configuration, electrical connector, sensing characteristics, and original sensor specifications.

Before purchasing, verify the original part number using the manufacturer’s equipment parts diagram or service manual.

Compare the replacement with the existing platen arm sensor to confirm the correct mounting arrangement, electrical connections, and signal requirements.

This replacement is not universal across all Garland commercial grill models.

Inductive Proximity Platen Arm Sensor Function

The Garland 4600127 inductive proximity PWM sensor is designed to detect the position of a compatible metal target associated with the platen arm mechanism.

Inductive proximity sensing allows position detection without requiring direct mechanical contact with the target.

The sensor provides an electrical signal to the grill control system.

In compatible equipment, the controller interprets this feedback to monitor platen position during automated grill operation.

Accurate position detection helps the equipment determine whether the platen arm is in the expected position during operation.

When the original sensor becomes damaged, disconnected, misaligned, or electrically defective, the controller may receive incorrect position information.

Replacing a confirmed faulty sensor may help restore normal platen position feedback.

PWM Signal and Non-Contact Detection

The Wholesale Sensors Garland 4600127 replacement proximity sensor is intended for equipment requiring a compatible inductive sensor with PWM signal characteristics.

PWM stands for Pulse Width Modulation, a signaling method that can communicate information through changes in pulse duration.

The replacement sensor must match the original equipment’s electrical and signal requirements.

Important compatibility considerations include:

• Correct supply voltage
• Compatible PWM output characteristics
• Proper electrical connector
• Matching sensor mounting configuration
• Correct sensing distance
• Appropriate target material
• Proper sensor alignment
• Compatibility with the grill controller

Correct electrical and mechanical specifications are essential for dependable platen position feedback.

Before installation, compare the replacement with the original sensor and verify the manufacturer’s requirements.

Helps Resolve Common Garland Clamshell Grill Problems

A defective platen arm proximity sensor may contribute to:

• Incorrect platen arm position readings
• Failure to detect platen position
• Inconsistent platen positioning
• Interrupted automated cooking cycles
• Platen position sensor faults
• Unexpected grill control warnings
• Intermittent sensor signal feedback
• Failure to complete certain automated grill operations
• Incorrect platen position feedback to the controller
• Sensor circuit or connection faults

Replacing a defective Garland 4600127 proximity sensor may help resolve these issues when the original sensor is responsible.

Similar symptoms can result from damaged wiring, incorrect sensor alignment, mechanical platen problems, actuator faults, or defective control components.

Proper diagnosis is recommended before replacing equipment parts.

Garland Grill Error Codes and Troubleshooting

Depending on the grill model and electronic controller, a defective or misaligned proximity sensor may contribute to:

• Platen position detection errors
• Platen arm sensor signal faults
• Invalid position feedback
• Proximity sensor circuit faults
• Platen movement or positioning warnings
• Automated cooking cycle interruptions

Exact error codes and diagnostic messages vary by grill model and controller.

A platen position fault does not automatically confirm that the proximity sensor requires replacement.

Always consult the Garland service manual for model-specific diagnostic information.

Installation and Replacement Instructions

Turn off the commercial grill and disconnect electrical power according to the manufacturer’s service procedures.

Allow the cooking surfaces, platen assemblies, and surrounding components to cool completely before beginning repairs.

Follow the manufacturer’s procedures for securing the upper platen against unexpected movement.

Locate the original inductive proximity sensor using the appropriate Garland service manual.

Document the original sensor position, mounting configuration, electrical connections, and alignment before removal.

Inspect the wiring, connector, mounting bracket, and target area for damage, corrosion, or misalignment.

Compare the replacement Garland 4600127 sensor with the original component.

Remove the defective sensor according to the manufacturer’s instructions.

Install the replacement in the designated mounting location using the specified hardware and procedures.

Adjust the sensor alignment and sensing distance according to the manufacturer’s specifications.

Reconnect the electrical connections and verify proper wiring.

After installation, restore equipment operation and confirm platen position detection using the manufacturer’s recommended testing procedure.

Safety Notice: Never bypass platen position sensors, interlocks, or other grill safety devices. Commercial clamshell grills contain high-temperature surfaces and moving platen mechanisms that can cause serious injury.

Professional installation by a qualified commercial foodservice equipment technician is recommended.

Commercial Kitchen and Foodservice Applications

The Wholesale Sensors Replacement Garland 4600127 Inductive Proximity PWM Platen Arm Sensor provides an aftermarket repair option for compatible commercial clamshell grills.

Suitable for:

• Quick-service restaurants
• Fast-food establishments
• Commercial kitchens
• Restaurant chains
• Institutional foodservice facilities
• Commercial grill repair companies
• Foodservice equipment maintenance technicians
• Professional restaurant equipment service providers

Replacing a confirmed defective proximity sensor may help restore normal platen position feedback without replacing unrelated equipment components.

12-Month Warranty and USA-Based Support

Wholesale Sensors is a USA-based business supplying aftermarket commercial equipment sensors, inductive proximity sensors, temperature probes, thermistors, and replacement sensing components for restaurant and foodservice equipment.

The Wholesale Sensors Replacement for Garland 4600127 Inductive Proximity PWM Platen Arm Sensor includes a 12-month warranty and responsive USA-based customer support.

Choose Wholesale Sensors for compatible commercial grill sensor replacements backed by dependable customer service.
