Replacement Hayward FDXLBKP1930 Keypad Membrane Switch,12 Month Warranty for Pool Heaters

Restore convenient control of your compatible Hayward pool or spa heater with the Wholesale Sensors Replacement for Hayward FDXLBKP1930 Keypad Membrane Switch, backed by a strong 12-Month Warranty and responsive USA-based product support. Designed for select Hayward Universal H-Series Low NOx heaters, this replacement keypad membrane provides a practical solution when the original control pad has become worn, damaged, intermittent, difficult to operate, or unresponsive.

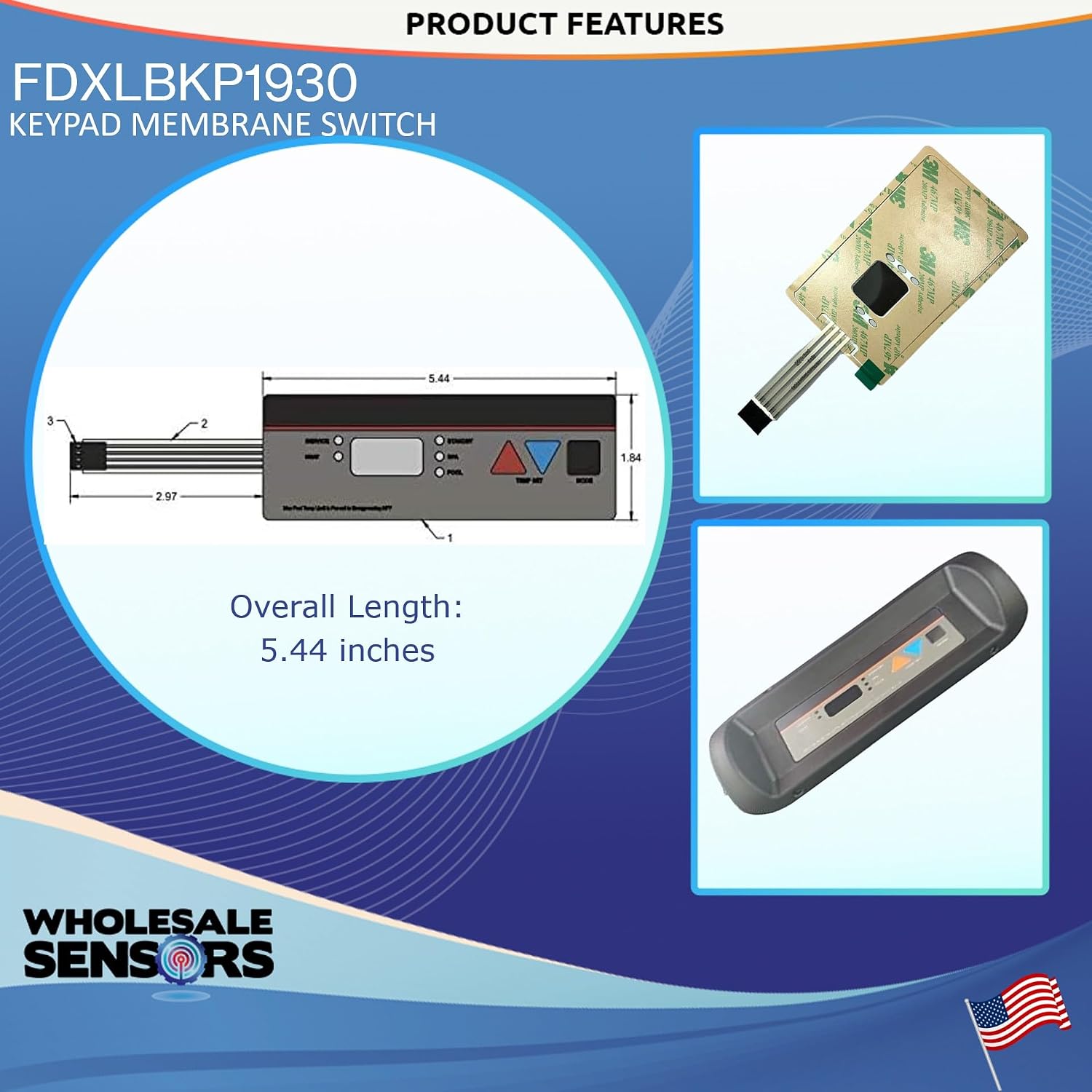

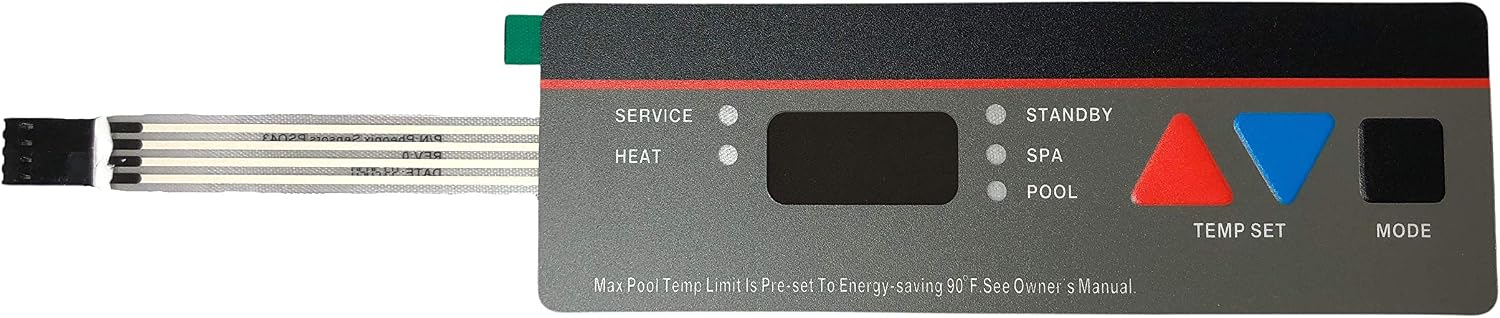

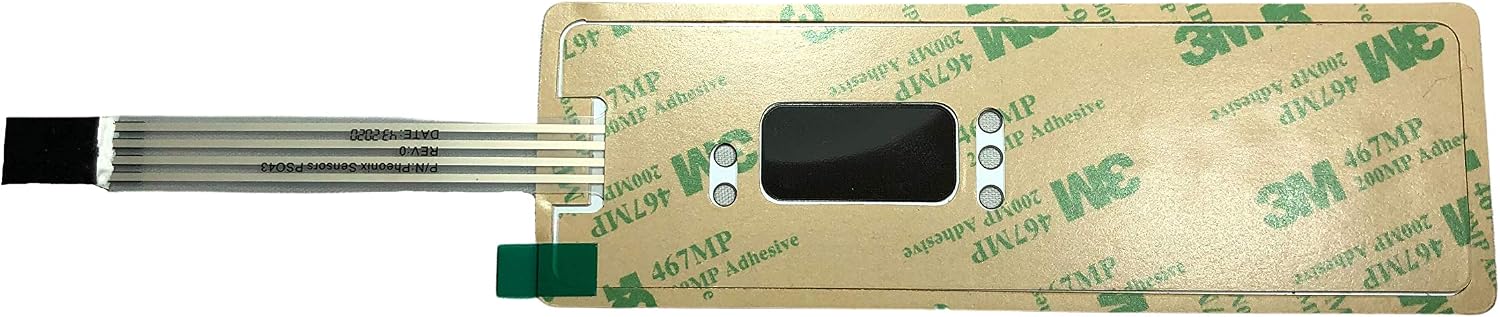

The Hayward FDXLBKP1930 is a keypad membrane replacement used with compatible Universal H-Series Low NOx pool and spa heaters. The membrane keypad provides the user interface for operating heater controls and making adjustments through the heater’s electronic control system. When the keypad is working correctly, pressing a button produces the corresponding electrical input required by the heater control.

This Wholesale Sensors component is engineered as a perfect OEM-style replacement for Hayward FDXLBKP1930, designed to meet or exceed OEM performance specifications for compatible applications. The primary replacement reference is FDXLBKP1930. When confirming compatibility, customers should use this exact part number together with their complete heater model and serial information rather than selecting a membrane switch solely by appearance.

The FDXLBKP1930 keypad is associated with select Hayward Universal H-Series Low NOx pool and spa heaters, including popular H250FD, H300FD, H350FD, and H400FD heater platforms. These model families include different fuel and configuration variations, such as natural gas and propane versions. Because revisions can occur across production periods, always confirm the original keypad part number before ordering.

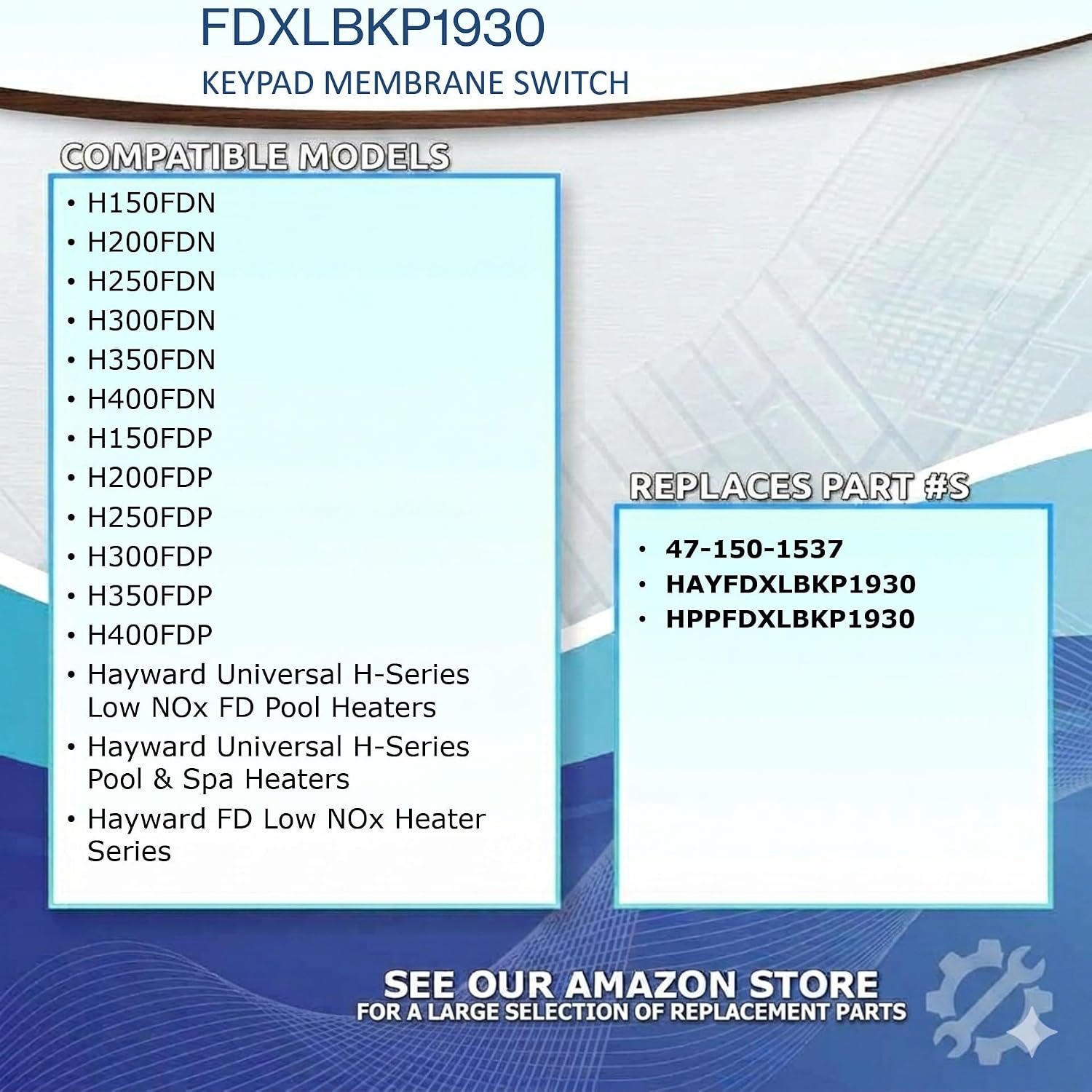

Typical compatible heater models can include configurations within the H250FDN, H250FDP, H300FDN, H300FDP, H350FDN, H350FDP, H400FDN, and H400FDP families where the equipment specifies the FDXLBKP1930 keypad membrane. Compatibility should be verified against the heater’s identification label and parts documentation.

This replacement is intended for pool and spa heater applications. Hayward Universal H-Series heaters are used to heat swimming pools and spas by transferring heat into circulating pool water. The keypad itself does not measure water temperature, ignite the burner, or control gas flow directly. Instead, it functions as part of the user interface that communicates operator selections to the heater’s electronic control system.

Over time, membrane keypads can deteriorate from repeated use and exposure to demanding pool equipment environments. A heater installed outdoors may experience temperature changes, humidity, dust, chemical exposure, sunlight, and repeated button presses throughout its service life. Eventually, individual keypad buttons or internal membrane contacts may become unreliable.

Common symptoms of a deteriorated keypad can include buttons that do not respond, buttons that work only intermittently, controls that require excessive pressure, sticking buttons, difficulty changing heater settings, or inability to select normal operating functions. Visible damage to the keypad surface can also indicate that replacement should be considered.

Replacing a defective keypad can restore normal user input when testing confirms that the membrane switch is responsible. However, an unresponsive heater control does not automatically mean the FDXLBKP1930 keypad has failed.

Hayward pool heaters contain several electronic and safety components that can affect operation. Problems involving the display board, control board, wiring connections, power supply, temperature sensors, pressure switch, high-limit switches, ignition system, gas supply, water flow, or other safety circuits can produce symptoms that may initially appear to involve the keypad.

For this reason, proper troubleshooting is recommended before replacement. Inspect the existing membrane for physical deterioration and check its connection to the heater electronics. Look for corrosion, moisture, damaged conductors, loose connectors, or other evidence that could interrupt communication between the keypad and control system.

Hayward pool heaters may display diagnostic fault codes or service messages when the control detects abnormal operating conditions. These are not automotive OBD-II codes. A displayed heater code should be interpreted using the service documentation for the exact Hayward heater model.

For example, sensor, ignition, water-flow, high-limit, or other safety-related faults generally should not be treated as evidence that the keypad membrane is defective. Replacing the FDXLBKP1930 will not correct an unrelated failed temperature sensor, insufficient water flow, ignition problem, pressure switch fault, or control board failure.

Installation is designed to be straightforward for experienced pool equipment technicians. Before servicing a gas-fired pool heater, turn off electrical power and follow all safety procedures specified by the heater manufacturer. If access to gas-related components is required during service, follow appropriate gas appliance safety procedures or use a qualified technician.

Before removing the original keypad, document its orientation, connection, and routing. Carefully disconnect the existing membrane connection without pulling excessively on the conductors. Remove the old keypad according to the heater service procedure and prepare the mounting surface as required.

Position the replacement keypad carefully so that the controls align correctly with the heater interface. Connect the membrane securely and verify that the cable is not pinched, folded sharply, or routed against surfaces that could cause damage. Reassemble the control area before restoring electrical power.

After installation, test each applicable keypad function. Verify that buttons respond consistently and that the heater display recognizes normal user inputs. Confirm that temperature adjustments and operating selections function correctly according to the heater’s control design.

If the keypad remains unresponsive after replacement, additional diagnosis may be necessary. Inspect the electrical connection, display electronics, control board, power supply, and related wiring before assuming that the new membrane switch is defective.

The Wholesale Sensors replacement is designed with a durable flexible membrane surface and dependable internal switch construction for repeated operation. Its application-specific design provides the fit and electrical connection required for compatible FDXLBKP1930 installations.

Each replacement keypad is rigorously tested for button response, electrical continuity, connection integrity, fit, and reliability before shipment. This quality-control process helps provide dependable performance for homeowners, pool service technicians, property managers, hotels, recreation facilities, and other operators maintaining compatible Hayward pool and spa heating systems.

Wholesale Sensors specializes in dependable aftermarket replacement components for pool and spa equipment, HVAC systems, appliances, commercial refrigeration, foodservice equipment, automotive applications, RV systems, and industrial equipment. Our focus is providing reliable replacement solutions backed by knowledgeable customer assistance.

Every Wholesale Sensors Replacement for Hayward FDXLBKP1930 Keypad Membrane Switch is backed by a strong 12-Month Warranty and responsive USA-based product support. Whether replacing a physically damaged membrane or repairing a heater with properly diagnosed keypad input problems, this replacement provides a practical solution without requiring replacement of the entire heater control assembly.

Before ordering, verify the Hayward FDXLBKP1930 part number, complete heater model, serial information, and existing keypad configuration. With confirmed compatibility, the Wholesale Sensors replacement provides responsive heater controls, dependable membrane switch construction, straightforward installation, rigorously tested performance, and the confidence of a 12-month warranty.
