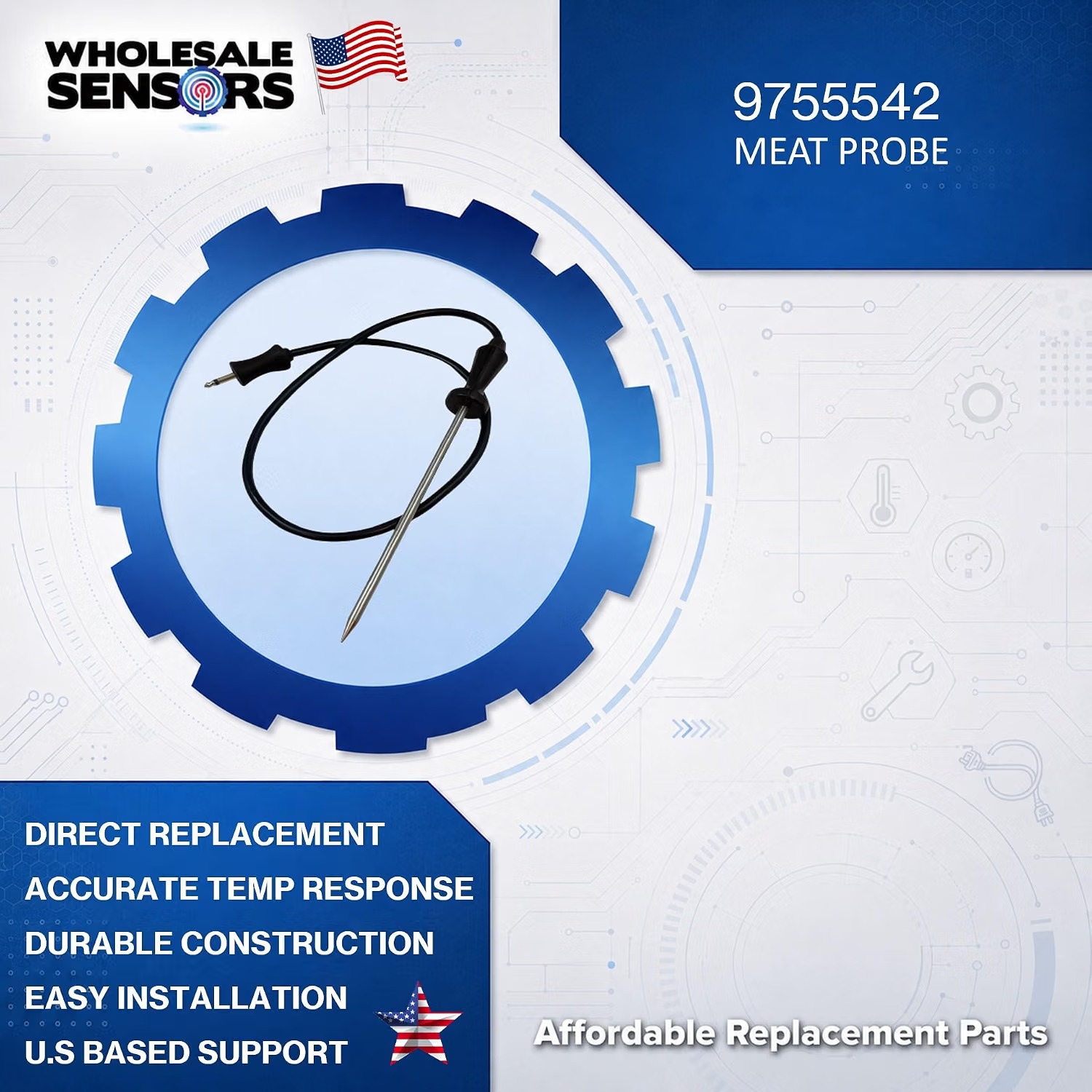

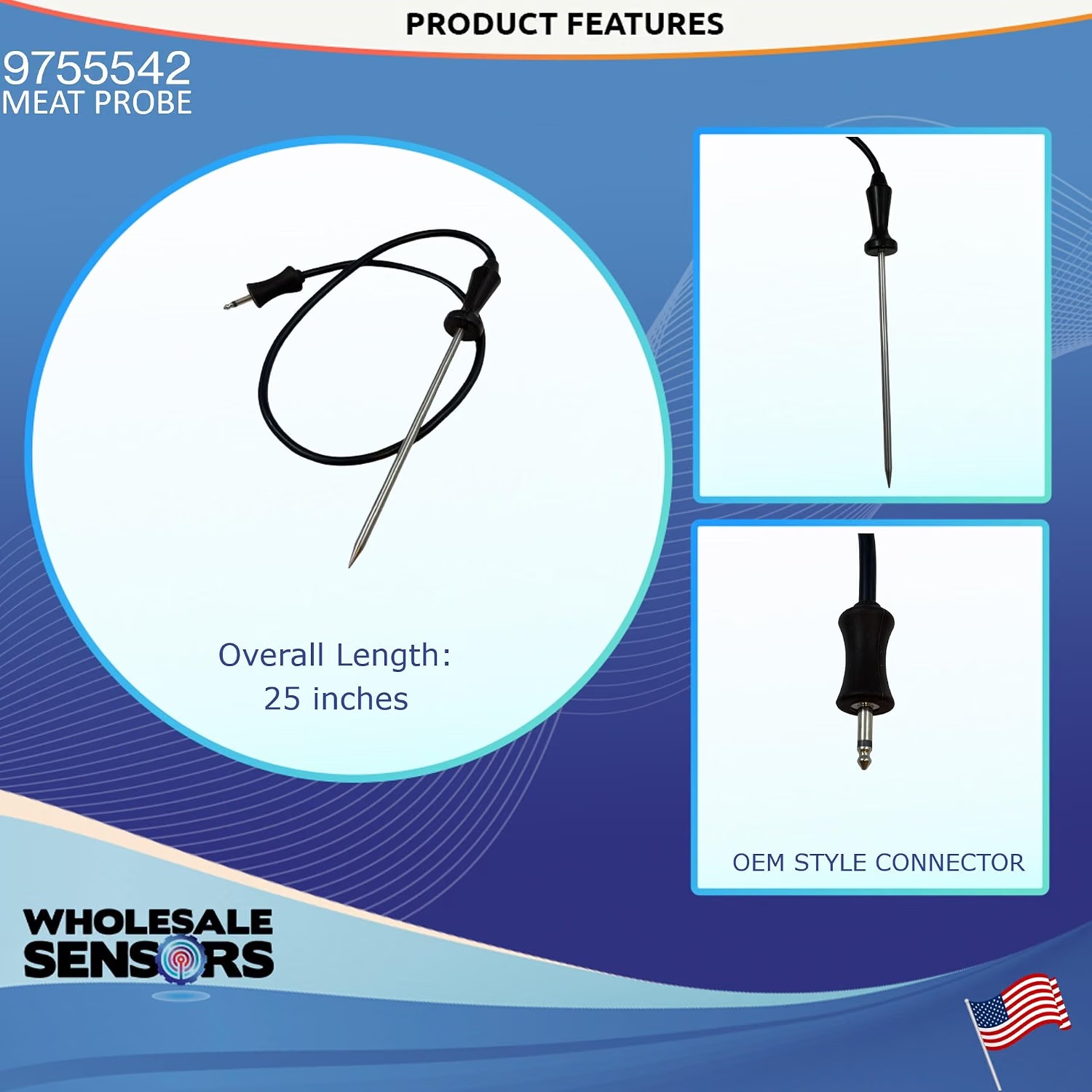

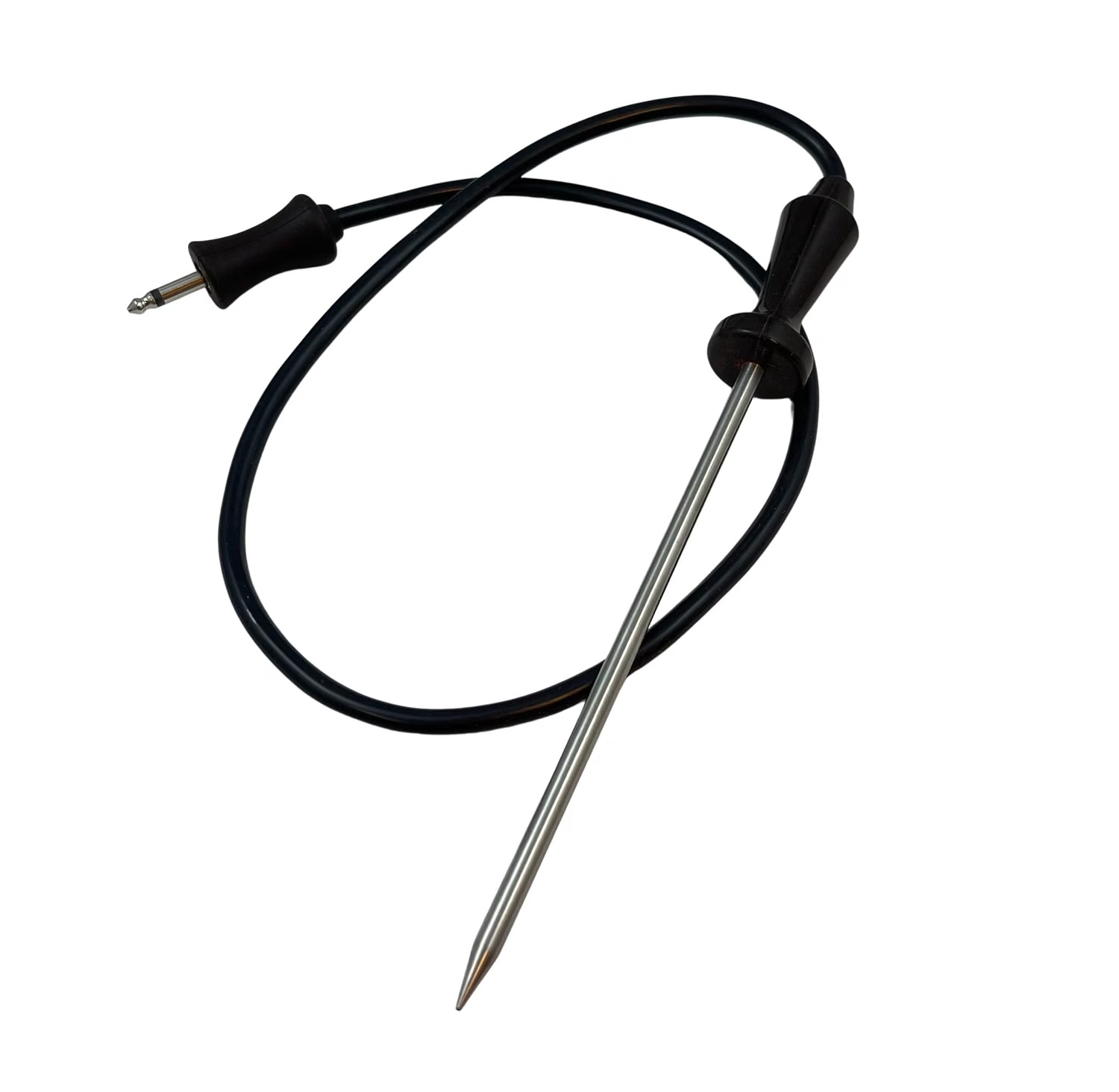

9755542 Meat Probe Replacement 12-Month Warranty

Achieve more reliable food temperature monitoring with the Wholesale Sensors Replacement for Whirlpool 9755542 Meat Probe, backed by a strong 12-Month Warranty and responsive USA-based product support. Designed for compatible Whirlpool-family ranges, wall ovens, and oven/microwave combinations, this replacement temperature probe measures the internal temperature of food while it cooks, helping the oven’s compatible meat probe system provide accurate temperature feedback.

The original Whirlpool 9755542 is an oven meat probe sensor used with compatible cooking appliances. Whirlpool replacement-parts documentation identifies the current version as WP9755542 and describes it as a temperature probe. Sears PartsDirect likewise identifies WP9755542 as an oven meat probe sensor designed for ranges.

This Wholesale Sensors component is engineered as a perfect OEM-style replacement designed to meet or exceed OEM specifications for compatible applications. The primary replacement numbers are 9755542 and WP9755542. Verified parts documentation also identifies 4448948 as an older part number replaced by WP9755542.

The probe is compatible with select appliances manufactured under the KitchenAid, Whirlpool, Jenn-Air, and Maytag brands. Home Depot’s appliance-parts catalog specifically identifies WP9755542 as a range temperature probe, also known as a meat probe, manufactured by Whirlpool for these brands.

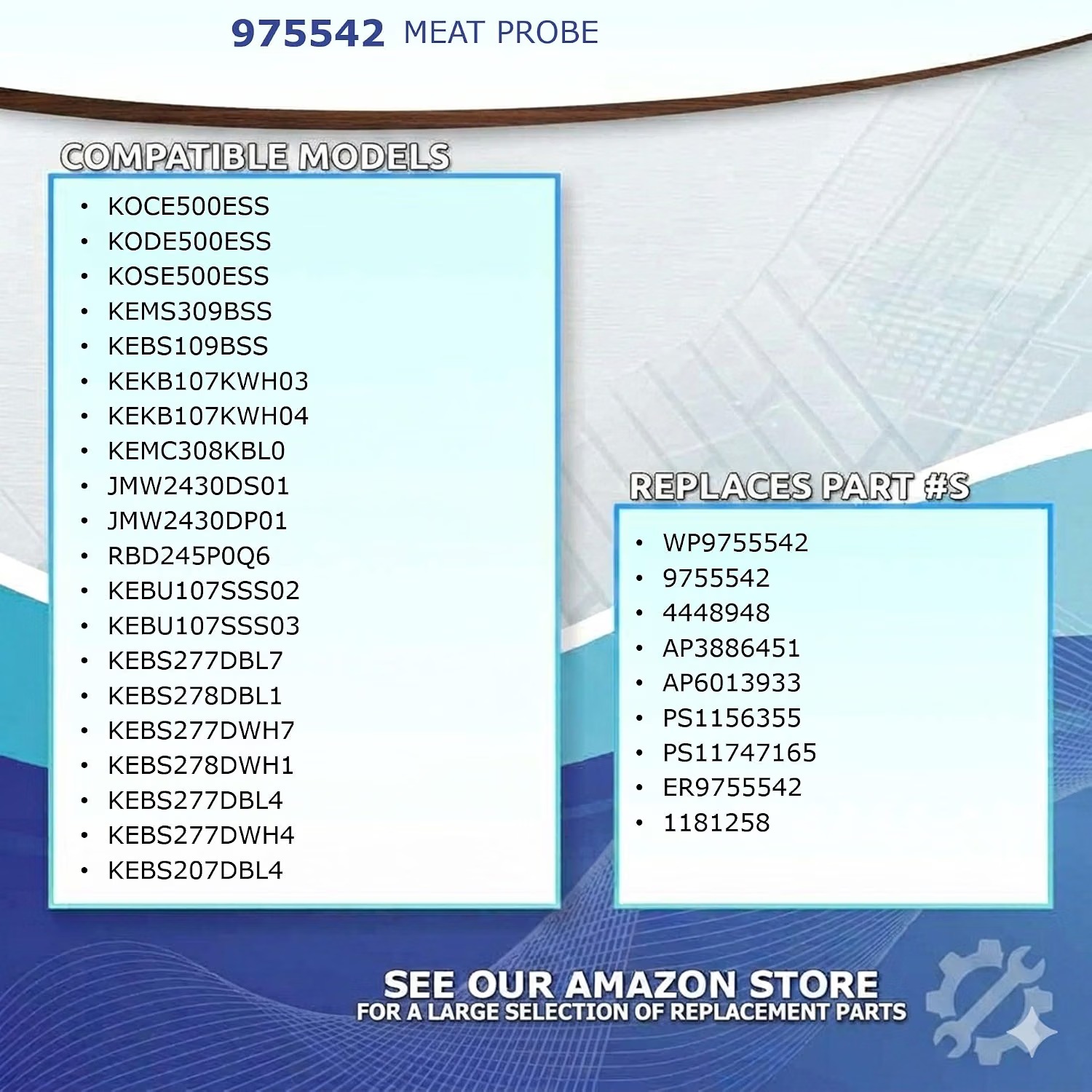

Compatibility covers numerous KitchenAid wall ovens and ranges. Verified examples include KDRS807SSS02, KDRS807SSS04, KDRS807XSP00, KDRU767VSS00, KEBC107HBL0, KEBC107HBL1, KEBC107HBL2, KEBC107HBL3, KEBC107HWH0, KEBC107KSS0, KEBC147KBL0, KEBC147KWH0, KEBC167MSS00, KEBC177KSS0, KEBS107DBT10, KEBS107DWH10, KEBV107PSS00, and KEMC377KBL02.

Additional verified applications include KEBS207BSS01, KOSE500ESS00, and KOSE500EBL00. Whirlpool’s model-specific parts pages identify WP9755542 as a compatible temperature probe for these KitchenAid ovens.

Because appliance manufacturers produce many revisions within the same model family, compatibility should always be confirmed using the complete model number rather than the appliance brand or appearance alone. The model number is normally located on the appliance identification label. Compare that information with the original probe or parts documentation before ordering.

The 9755542 is designed to monitor food temperature, rather than the general temperature inside the oven cavity. This distinction is important. Compatible ovens may contain a separate oven temperature sensor that monitors cavity temperature for heating control. KitchenAid parts documentation, for example, lists WP9755542 separately from the oven temperature sensor and the meat probe jack.

During use, the probe is inserted into the food being cooked and connected to the designated meat probe jack inside the compatible oven. The sensing element responds to temperature changes, allowing the oven’s control system to monitor the internal temperature of the food.

This feature is especially useful when preparing foods where internal temperature is more important than cooking time alone. Roasts, poultry, pork, beef, and other large cuts can cook at different rates depending on their weight, starting temperature, shape, and oven conditions. A functioning meat probe allows the compatible appliance to monitor the temperature at the location where the probe is inserted.

For best results, insert the sensing portion of the probe into the thickest part of the food, away from bone, excessive fat, and the cooking pan. Placement matters because contact with bone or a location close to the surface can produce a temperature reading that does not accurately represent the center of the food.

The other end connects to the oven’s designated meat probe receptacle. Whirlpool parts documentation confirms that compatible ovens use a separate meat probe jack, demonstrating that both the probe and the appliance-side connection must function correctly for the system to operate.

When the original probe becomes damaged or electrically unreliable, possible symptoms can include failure to detect the connected probe, missing food temperature information, unstable temperature readings, inaccurate food temperature monitoring, or unexpected meat probe operation.

These symptoms do not automatically confirm that the probe itself has failed. A problem may also originate from the meat probe jack, wiring, connector, electronic oven control, or another component in the probe circuit. Proper diagnosis can prevent unnecessary replacement of functional parts.

Begin troubleshooting by inspecting the entire probe. Check the metal sensing portion, cable, and connector for physical damage, cuts, severe bends, loose connections, contamination, or signs of overheating. Make sure the plug is completely inserted into the appropriate meat probe jack.

If the oven does not recognize the probe, inspect the appliance-side receptacle for contamination or physical damage. If another known-good compatible probe is available, comparison testing can help determine whether the problem is with the removable probe or the oven itself.

The probe can also be evaluated electrically with an appropriate multimeter when the correct service specifications are available. Because the sensing element changes electrically with temperature, an open circuit, unstable reading, or response outside the expected specification can indicate a damaged probe. Use service information for the exact appliance when evaluating resistance values rather than assuming every oven sensor uses the same specification.

Replacement is generally straightforward because the 9755542 is a removable cooking probe rather than a permanently installed oven cavity sensor. Before using the replacement, confirm that the probe connector matches the designated receptacle in the appliance and that your model specifically calls for 9755542 or WP9755542.

During normal cooking, keep the probe cable positioned according to the appliance manufacturer’s instructions. Avoid unnecessary contact with heating elements or locations that can pinch or damage the cable. Never use a meat probe in an operating mode where the appliance manufacturer prohibits probe use.

After cooking, allow the probe to cool before handling. Clean the food-contact portion according to appropriate care instructions while protecting the electrical connector from unnecessary moisture. Avoid harsh treatment of the cable and connector, which can shorten sensor life.

Ranges, wall ovens, and oven/microwave combinations do not use automotive OBD-II diagnostic trouble codes. Therefore, automotive temperature-sensor codes do not apply to Whirlpool 9755542. If the oven displays an appliance-specific error message, diagnose that code according to the technical documentation for the exact appliance before assuming the meat probe is responsible.

It is also important not to confuse WP9755542 with WPW10524044. Model-specific KitchenAid parts pages identify WP9755542 as the temperature probe while WPW10524044 is the separate meat probe jack used on certain models. These components perform different functions and should not be treated as interchangeable.

Each Wholesale Sensors replacement is built for dependable food temperature monitoring and is rigorously tested for sensing response, electrical continuity, connector integrity, construction quality, and reliable operation. The goal is to provide a practical replacement for a worn, damaged, missing, or unreliable original meat probe.

Wholesale Sensors specializes in aftermarket replacement sensing components for home appliances, commercial foodservice equipment, HVAC systems, refrigeration equipment, pool and spa systems, automotive applications, RV equipment, and industrial systems.

Every Wholesale Sensors Replacement for Whirlpool 9755542 Meat Probe is backed by a strong 12-Month Warranty and responsive USA-based product support. Before ordering, verify your appliance model and confirm that the original probe is identified as 9755542, WP9755542, or verified cross-reference 4448948.

With confirmed compatibility, this replacement provides dependable internal food temperature monitoring, convenient plug-in operation, rigorously tested performance, and a practical way to restore the meat probe function of compatible KitchenAid, Whirlpool, Jenn-Air, and Maytag cooking appliances.
